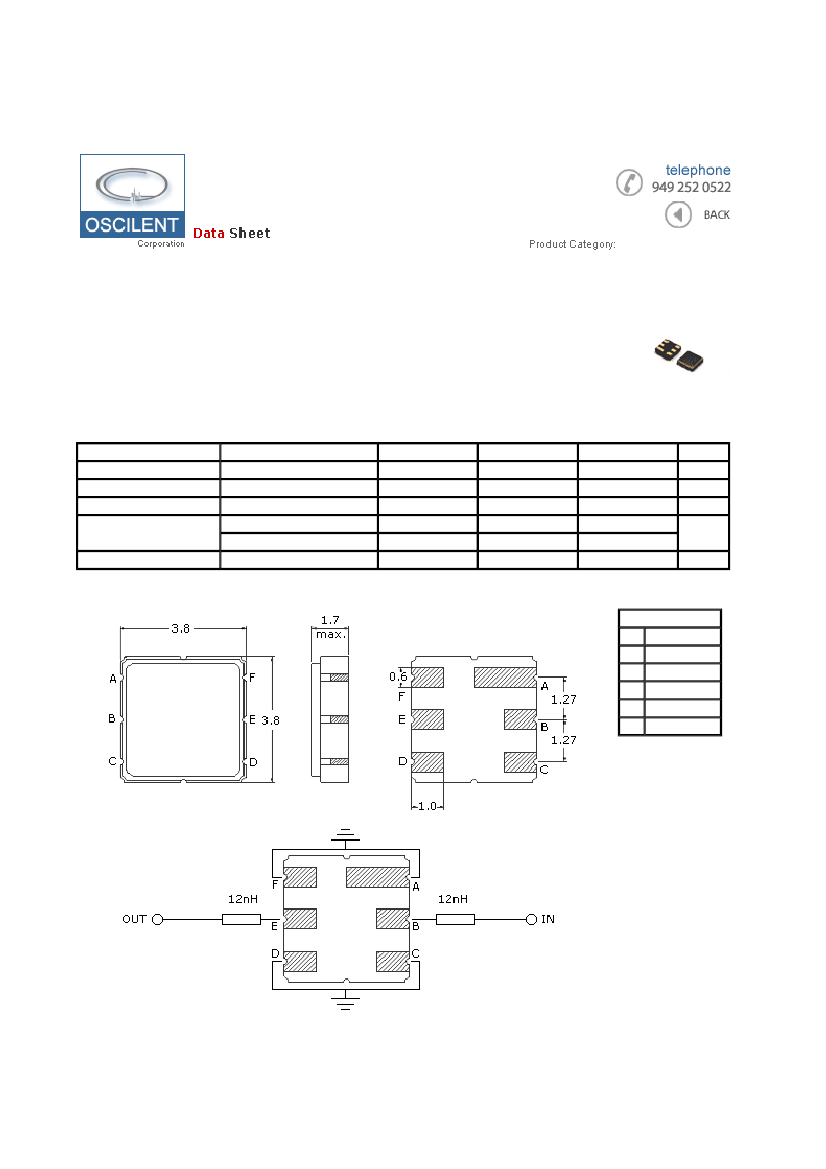

Oscilent Corporation RF SAW Filter | 803-RF930.5M-B

Page 1 of 2

RF SAW Filter

Part Number

Package

Application

Last Modified

803-RF930.5M-B

TYPE :

3.8 x 3.8 SMD

Wireless Communication

Apr. 12 2003

930.5 MHz RF SAW Filter

PART NUMBER :

803-RF930.5M-B

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency (Fo)

Insertion Loss

Ripple

Stopband Attenuation

Teminating Impedance

Condition

928.5 ~ 932.5 MHz

Fo -200.0 ~ Fo -40.8 MHz

Fo +50.0 ~ Fo +200.0 MHz

Minimum

40.0

Typical

930.5

2.6

0.7

45.0

47.0

50/12

Maximum

4.0

2.0

ohm/nH

Units

MHz

* Custom SAW RF Filters available. Contact Oscilent for assistance.

Pin Layout

Ground

Input

Ground

Output

Ground

Test Fixture

Frequency Reponse

http://www.oscilent.com/spec_pages/rf_sawfilter/rf_803_rf930_5b.htm

12/28/2005
