803-RF868.3M-A: Description868.3 MHz RF SAW Filter; File Size173KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com

Download Datasheet View All

803-RF868.3M-A Overview

868.3 MHz RF SAW Filter

Preview

Download Datasheet

View All

Oscilent Corporation RF SAW Filter | 803-RF868.3M-A

Page 1 of 2

RF SAW Filter

Part Number

Package

Application

Last Modified

803-RF868.3M-A

TYPE :

3.8 x 3.8 SMD

Wireless

Jan. 01, 2007

868.3 MHz RF SAW Filter

PART NUMBER :

803-RF868.3M-A

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

DC Voltage

Input Power

Operating Temperature

Storage Temperature

Relative Passband

3dB Bandwidth

Relative Attenuation

10 ~ 700 MHz

700 ~ 830 MHz

830 ~ 850 MHz

850 ~ 865.02 MHz

871 ~ 874.5 MHz

874.5 ~ 883 MHz

883 ~ 900 MHz

900 ~ 1000 MHz

Source Impedance

Load Impedance

single ended*

Condition

868 ~ 868.78 MHz

868 ~ 868.78MHz

867.9 ~ 868.88 MHz

Minimum

-45

Typical

868.3

2.7

1.0

1.5

1500

117//3.7

ohm//Pf

ohm//pF

Maximum

4.2

+90

3.0

6.0

kHz

Units

MHz

dBm

°C

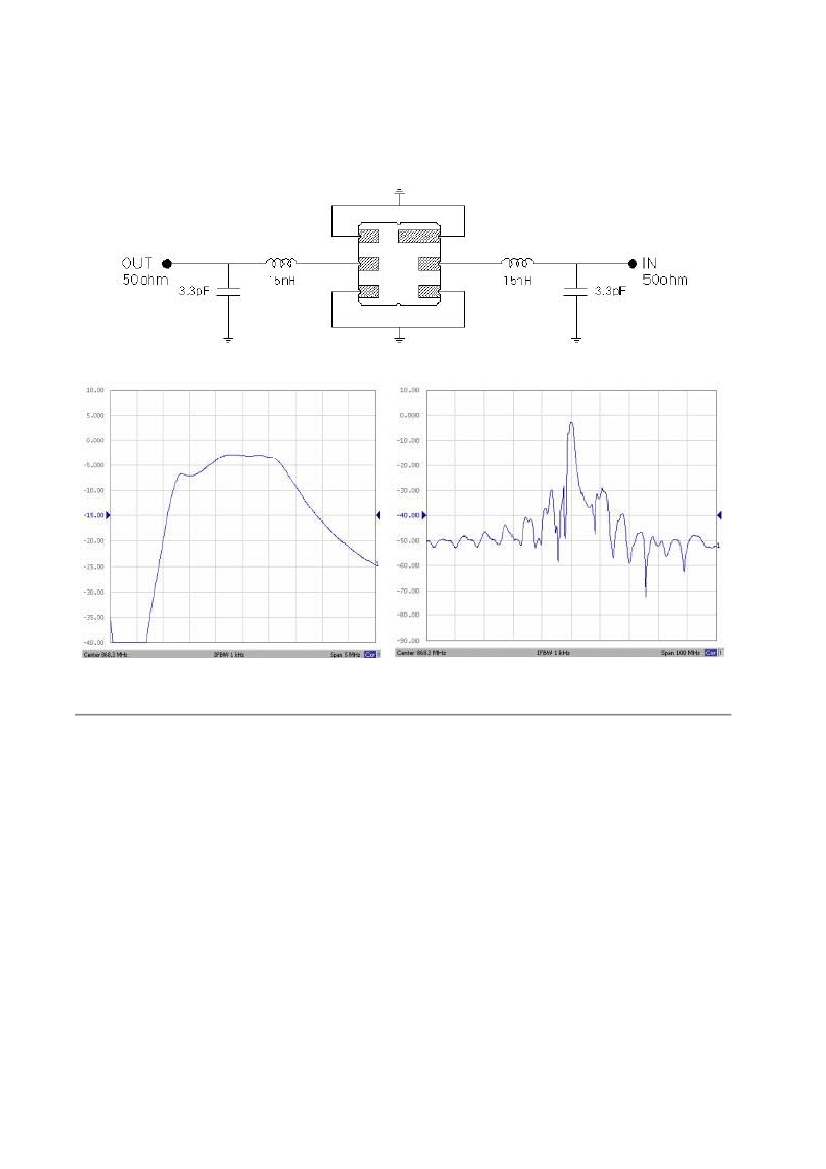

* With Matching Network ((Ref. Testing Environment Circuit as shown)

** Custom SAW RF Filters available. Contact Oscilent for assistance.

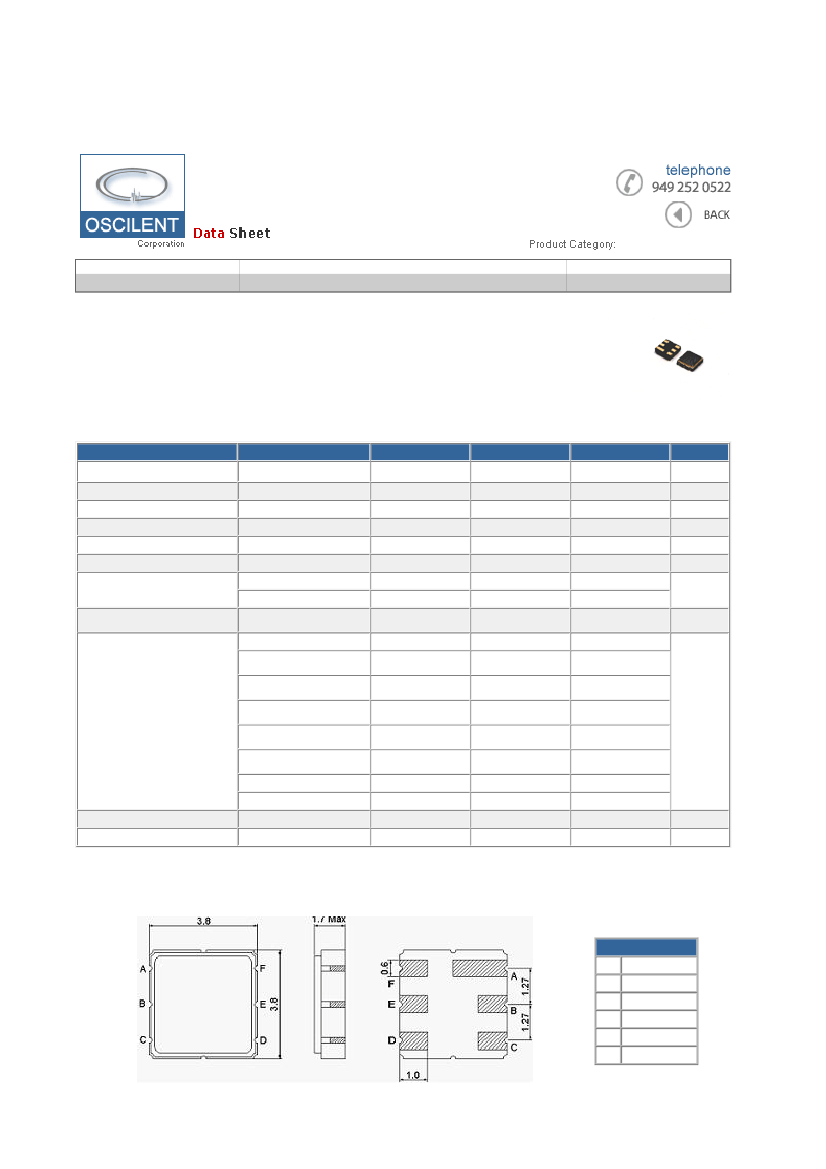

PACKAGE DRAWING

Pin Layout

Ground

Input

Ground

Output

Ground
