803-RF462.5M-B Overview

CDMA450, RF-Rx SAW Filter

Oscilent Corporation RF SAW Filter | 803-RF462.5M-B
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
803-RF462.5M-B
.
TYPE :
3.8 x 3.8 SMD
CDMA450
Jan. 01, 2007
CDMA450, RF-Rx SAW Filter
PART NUMBER :
803-RF462.5M-B
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Stop Band Attenuation:
Condition
-
460.0~ 464.8 MHz
0.3~ 450.0 MHz
450.0~ 455.0 MHz
485.0~ 505.0MHz
505.0~ 1200.0 MHz
1200.0~ 2000.0 MHz
Source Impedence (single ended)*
Load Impendance (single ended)*
VSWR
Maximum Input Power
Operating Temperature
* No Matching Network
-
-
460.0~ 464.8 MHz
-
-
Minimum
-
-
40
35
40
30
20
-
-
-
-
-30
Typical
462.5
2.8
45
46
50
41
32
50
50
1.9
-
-
Maximum
-
4.8
-
-
-
-
-
-
-
2.4
27
+80
ohm
ohm
-
dBm
ºC
dB
Units
MHz
dB
.

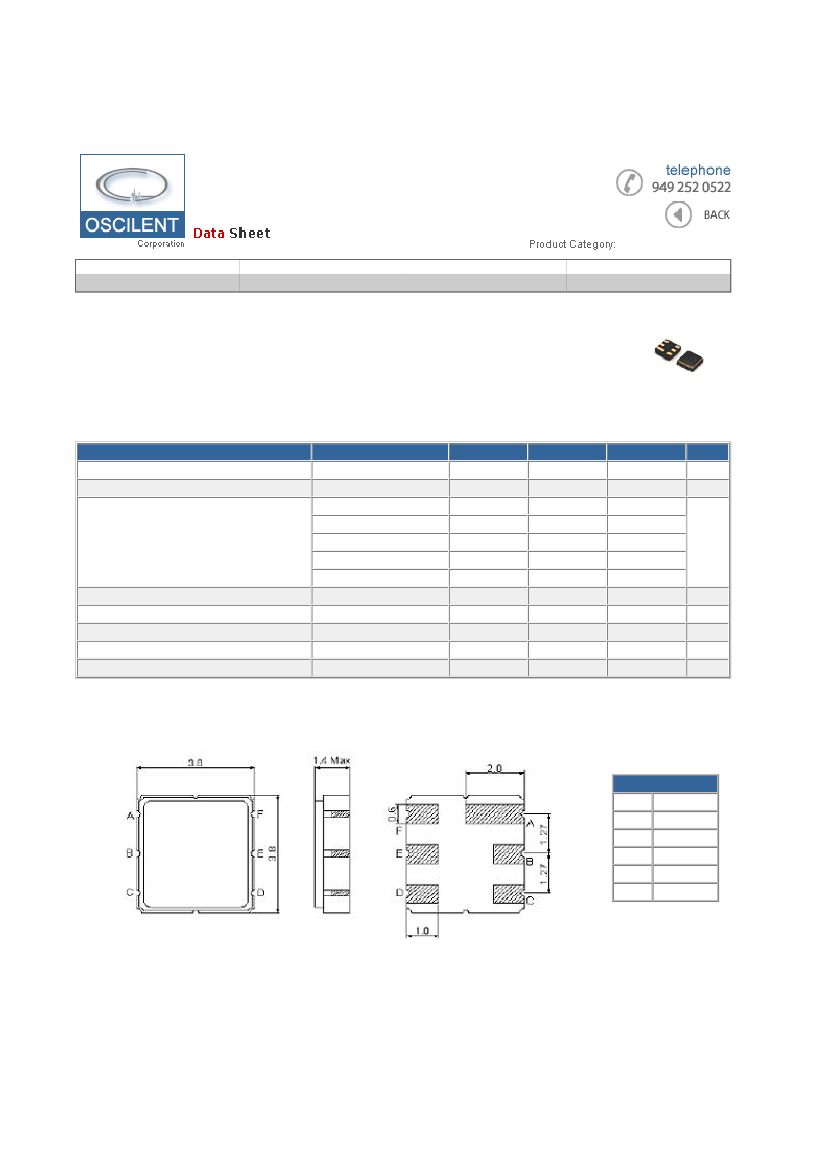

PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
Ground
In
Ground
Ground
Out
Ground

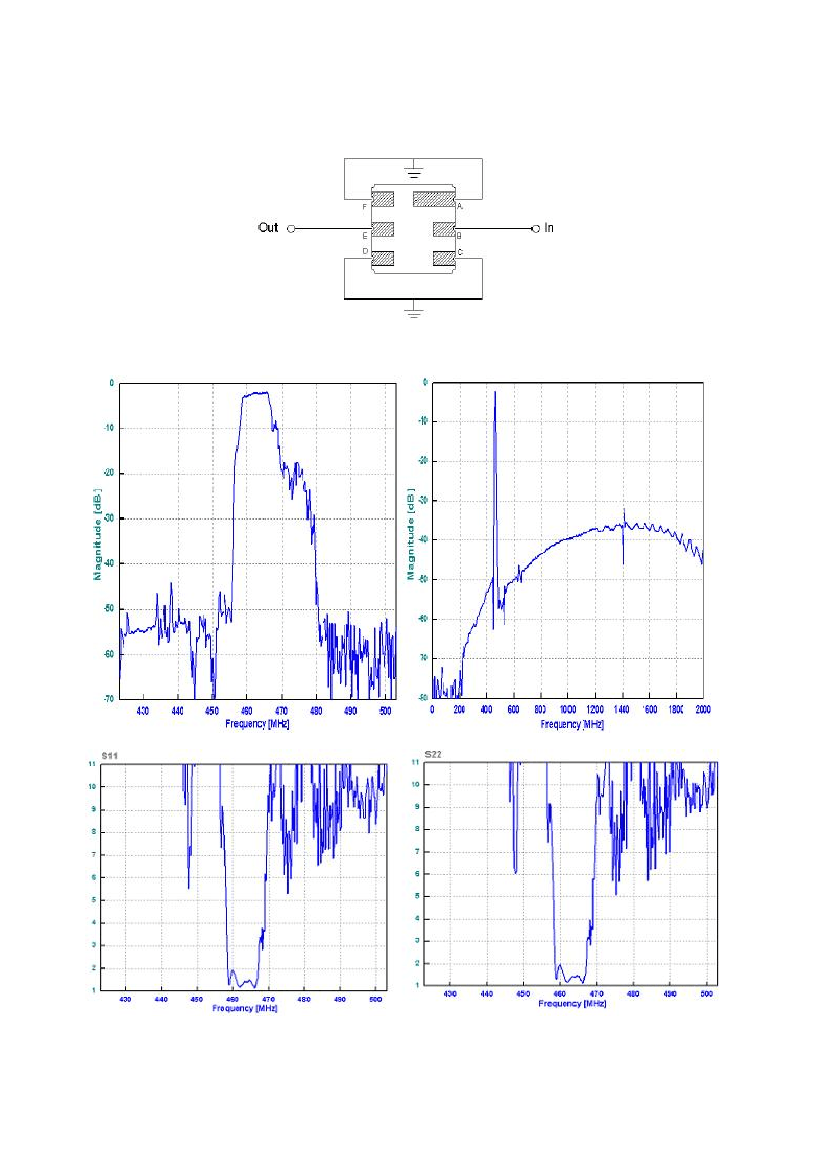

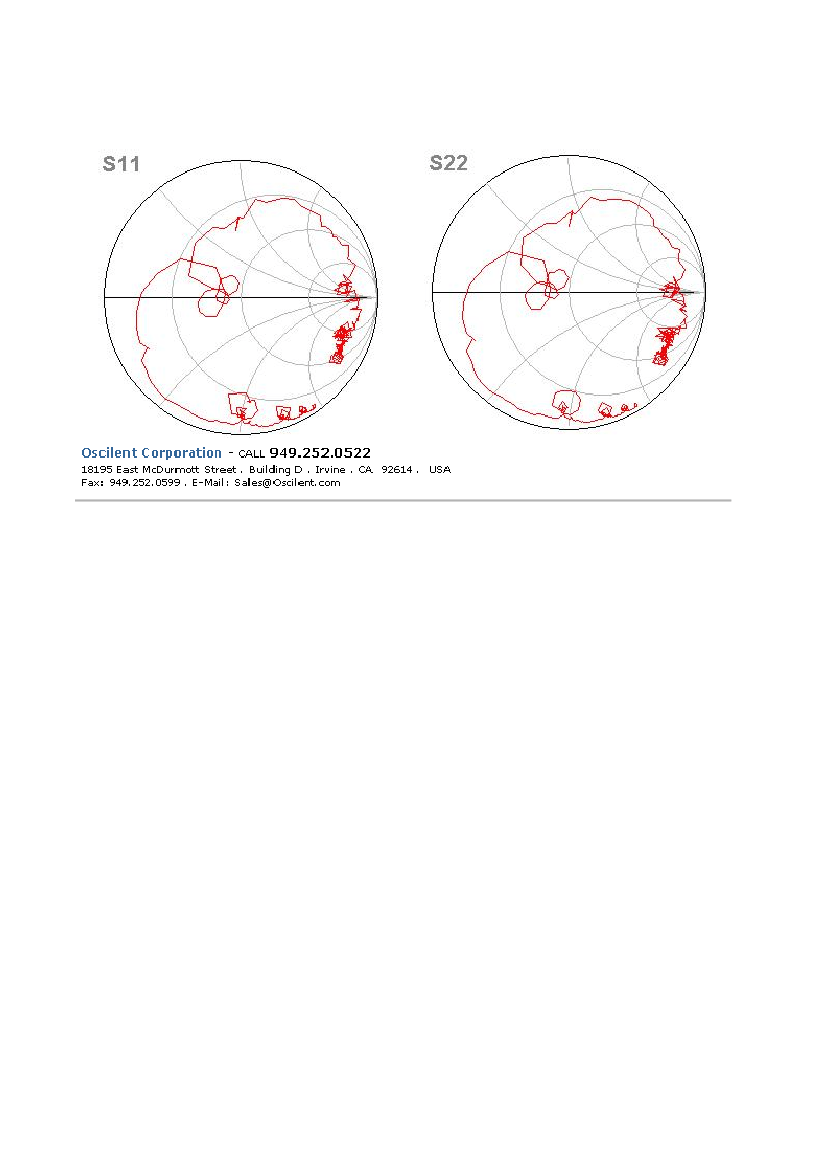

TEST FIXTURE
