803-RF423.75M-A Overview

CDMA450 (D-Band) RF-Rx SAW Filter

Oscilent Corporation RF SAW Filter | 803-RF423.75M-A
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
803-RF423.75M-A
.
TYPE :
3.8 x 3.8 SMD
CDMA450 Rx
Jan. 01, 2007
CDMA450 (D-Band) RF-Rx SAW Filter
PART NUMBER :
803-RF423.75M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Stop Band Attenuation:
Condition
-
421.6 ~ 425.9 MHz
0.3 ~ 411.6 MHz
411.6 ~ 415.9 MHz
442.0 ~ 600.0MHz
600.0 ~ 1200.0 MHz
1200.0~ 2000.0 MHz
Source Impedence (single ended)*
Load Impendance (single ended)*
VSWR
Maximum Input Power
Operating Temperature
* No Matching Network
-
-
421.6 ~ 425.9 MHz
-
-
Minimum
-
-
40
35
40
30
20
-
-
-
-
-30
Typical
423.75
2.7
48
47
47
40
35
50
50
1.5
-
-
Maximum
-
4.8
-
-
-
-
-
-
-
2.0
27
+80
ohm
ohm
-
dBm
ºC
dB
Units
MHz
dB
.
PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
Ground
In
Ground
Ground
Out
Ground

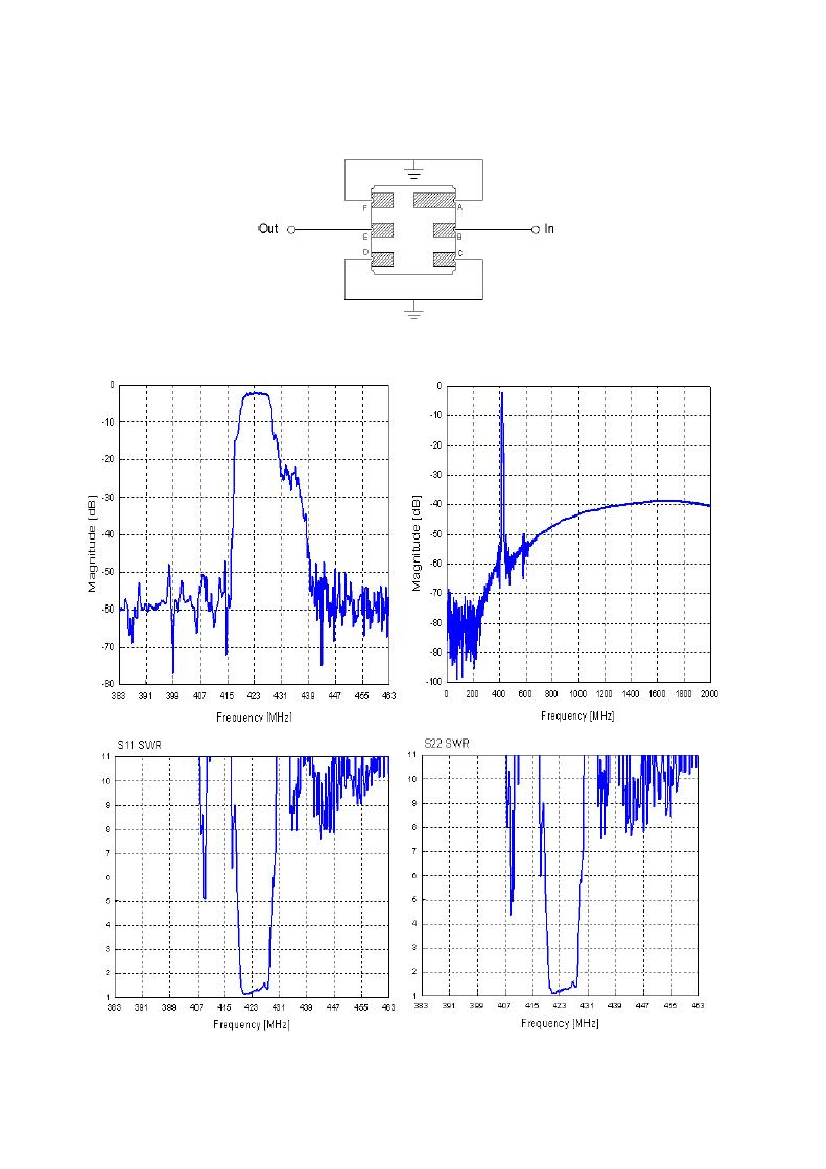

TEST FIXTURE
