803-RF374.0M-A

Description
CDMA Tx RF SAW Filter
CategoryAnalog mixed-signal IC    filter
File Size482KB,3 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Environmental Compliance
Download Datasheet Parametric View All

803-RF374.0M-A Overview

CDMA Tx RF SAW Filter

803-RF374.0M-A Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerOscilent
Reach Compliance Codecompli
Center frequency or cutoff frequency (fo/fc)374 MHz
filter typeSAW FILTER
high1.4 mm
input resistance50 OHM
Maximum insertion loss3 dB
length3.8 mm
Manufacturer's serial number803-RF374.0M-A
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature80 °C
Minimum operating temperature-30 °C
Output impedance50 OHM Ω
physical sizeL3.8XB3.8XH1.4 (mm)/L0.15XB0.15XH0.055 (inch)
Oscilent Corporation RF SAW Filter | 803-RF374.0M-A
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
803-RF374.0M-A
.
TYPE :
3.8 x 3.8 SMD
CDMA Tx
Jan. 01, 2007
CDMA Tx RF SAW Filter
PART NUMBER :
803-RF374.0M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Attenuation:
Condition
-
372.0 ~ 376.0 MHz
DC ~ 350.0 MHz
382.0 ~ 386.0 MHz
400.0 ~ 500.0 MHz
Source Impedence (single ended)*
Load Impendance (single ended)*
Amplitude Ripple

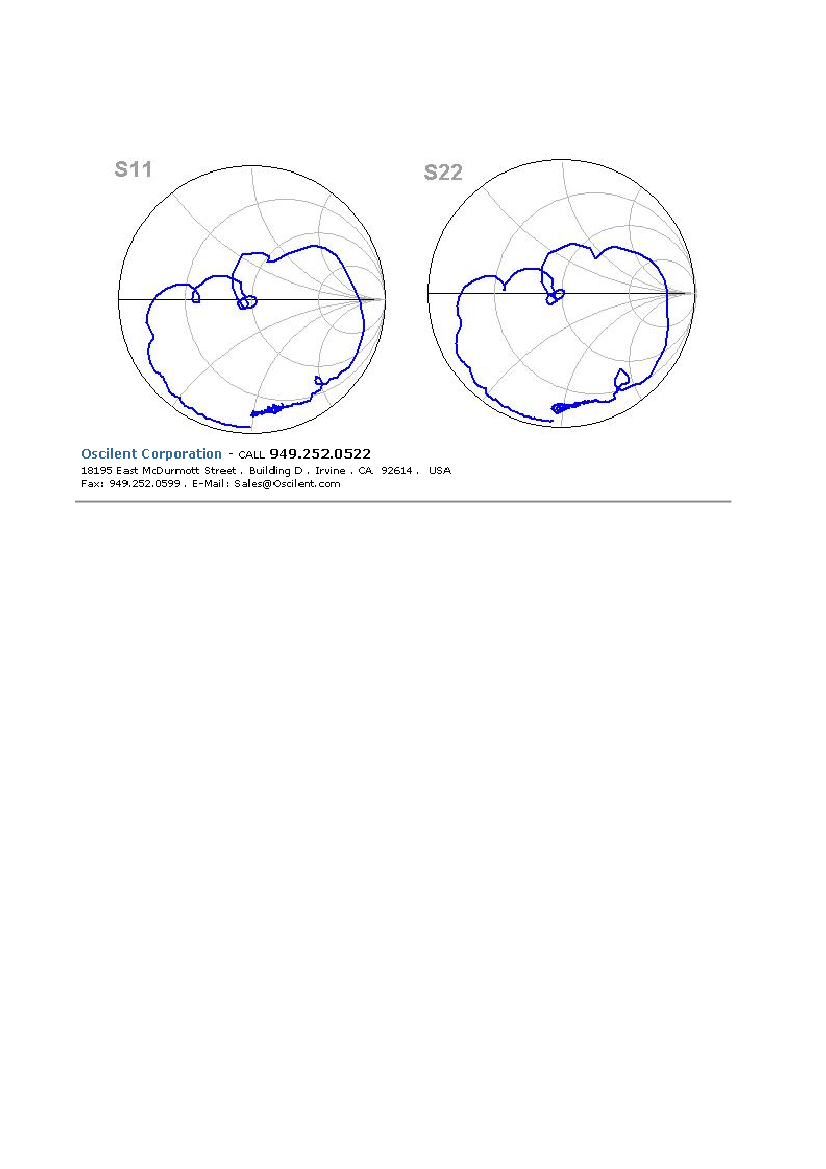

VSWR
Maximum Input Power
Maximum DC Voltage
Operating Temperature
-
-
372.0 ~ 376.0 MHz
372.0 ~ 376.0 MHz
-
-
-
Minimum
-
-
25
35
28
-
-
-
-
-
-
-30
Typical
374.0
3.3
28
40
32
50
50
0.8
1.5
-
-
-
Maximum
-
4.0
-
-
-
-
-
1.5
2.0
27
0
+80
ohm
ohm
dBp-p
-
dBm
V
ºC
dB
Units
MHz
dB
* No Matching Network (Ref. Testing Environment Circuit as shown)
.

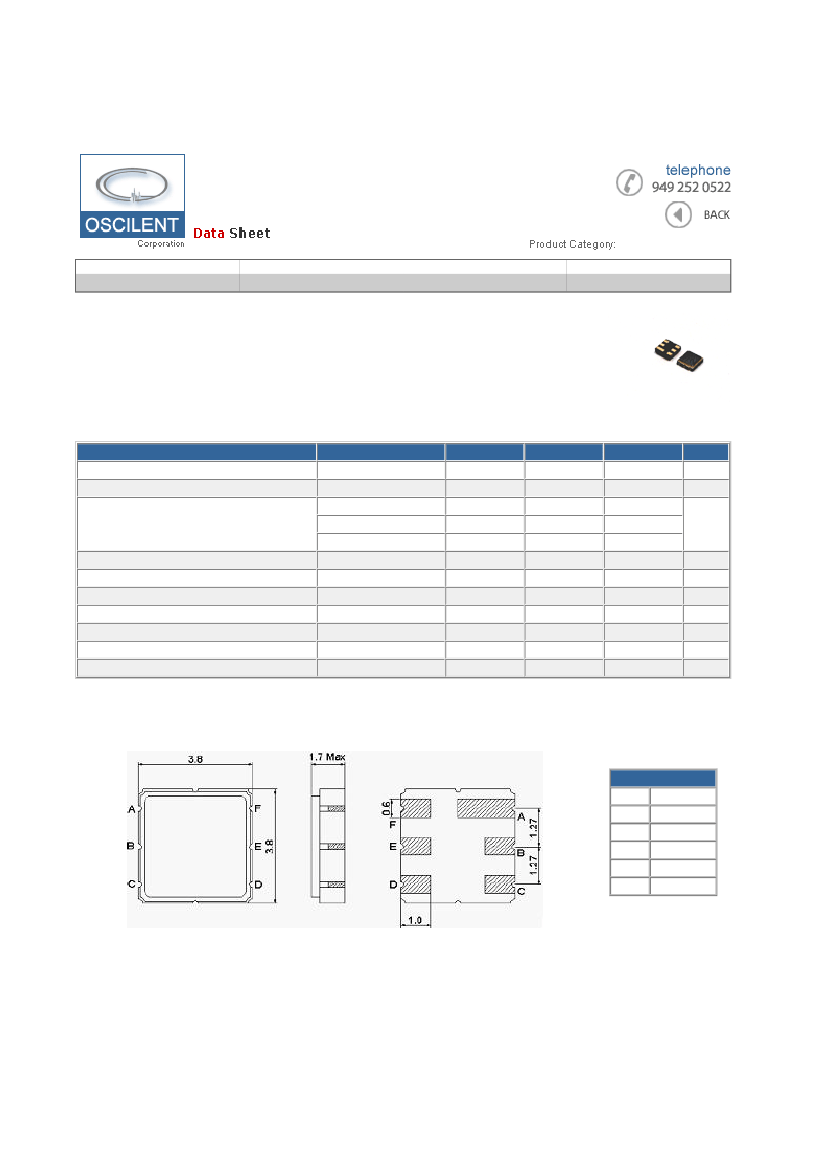

PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
Ground
In
Ground
Ground
Out
Ground

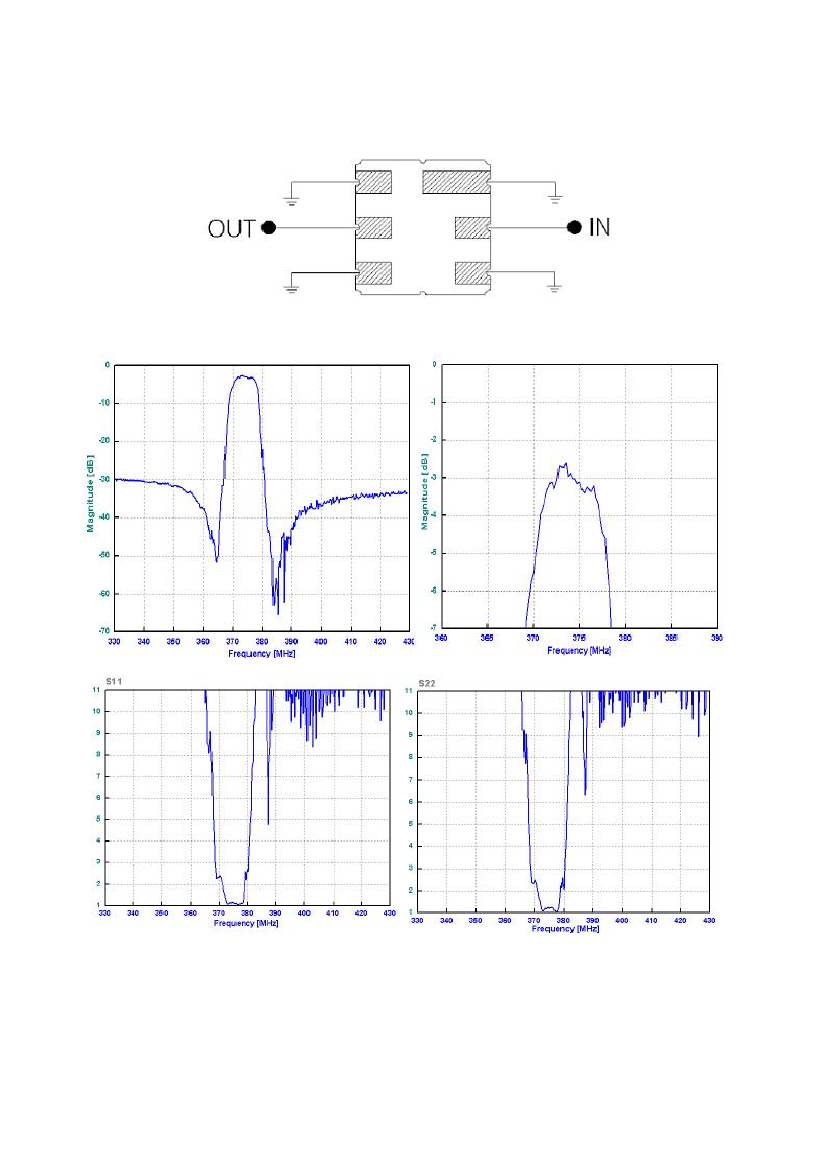

TEST FIXTURE
