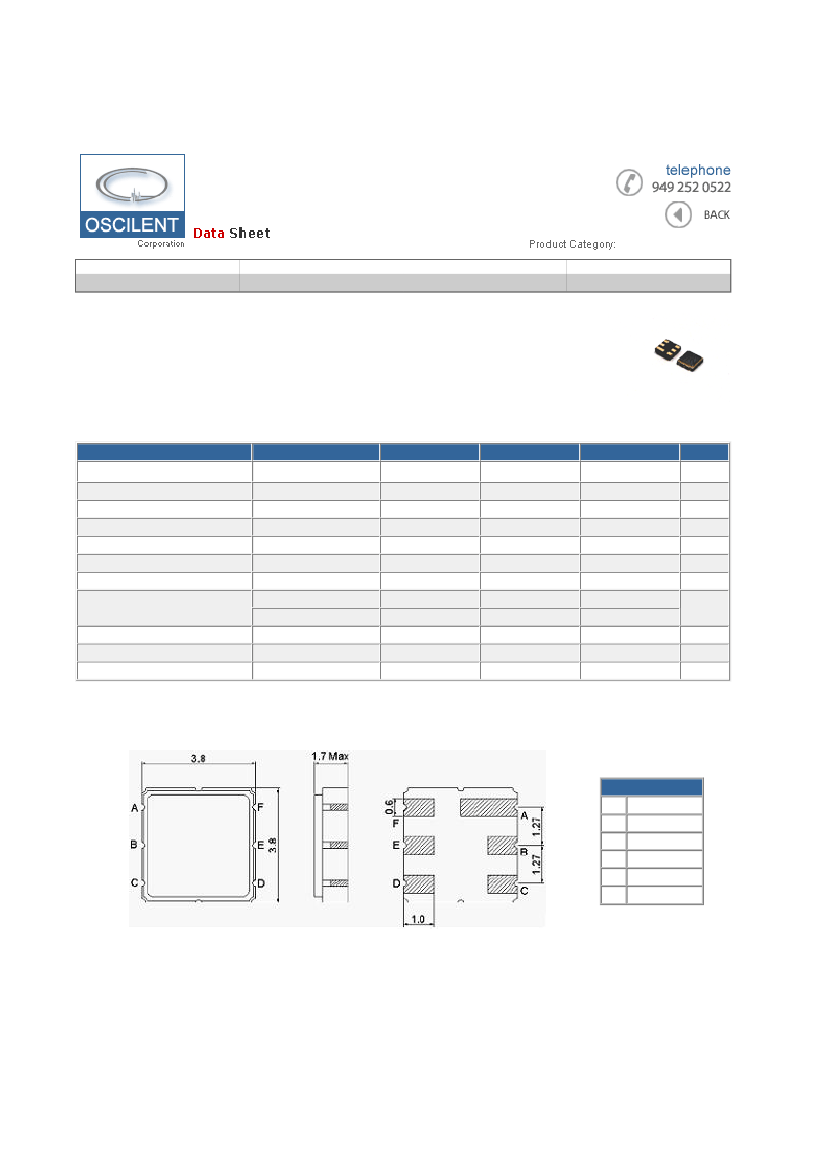

Oscilent Corporation RF SAW Filter | 803-RF1030.0M-A

Page 1 of 3

RF SAW Filter

Part Number

Package

Application

Last Modified

803-RF1030.0M-A

.

TYPE :

3.8 x 3.8 SMD

Wireless

Jan. 01, 2007

1030.0 MHz RF SAW Filter

PART NUMBER :

803-RF1030.0M-A

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

DC Voltage

Input Power

Operating Temperature

Storage Temperature

Amplitude Ripple

Attenuation

VSWR

Source Impedance

Load Impedance

Condition

-

1015 ~ 1045 MHz

-

1025 ~ 1035 MHz

DC ~ 910 MHz

1090~ 1300 MHz

1015 ~ 1045 MHz

single ended*

Minimum

-

-30

-40

-

25.0

-

Typical

1030.0

2.3

-

.25

29.5

32.5

1.8

50

Maximum

-

3.0

0

10

+85

1.0

-

2.1

-

ohm

Units

MHz

dB

V

dBm

°C

dBp-p

dB

* No Matching Network ((Ref. Testing Environment Circuit as shown)

** Custom SAW RF Filters available. Contact Oscilent for assistance.

.

PACKAGE DRAWING

Pin Layout

A

B

C

D

E

F

Ground

Input

Ground

Output

Ground

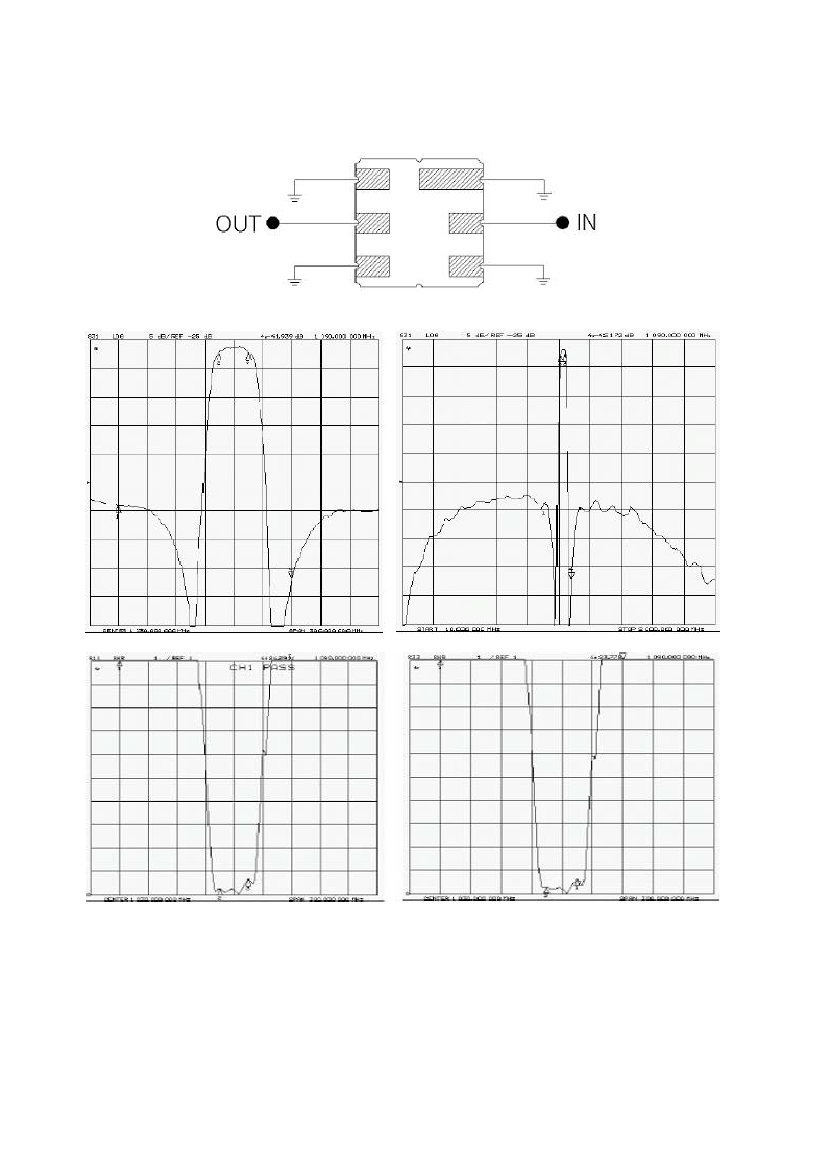

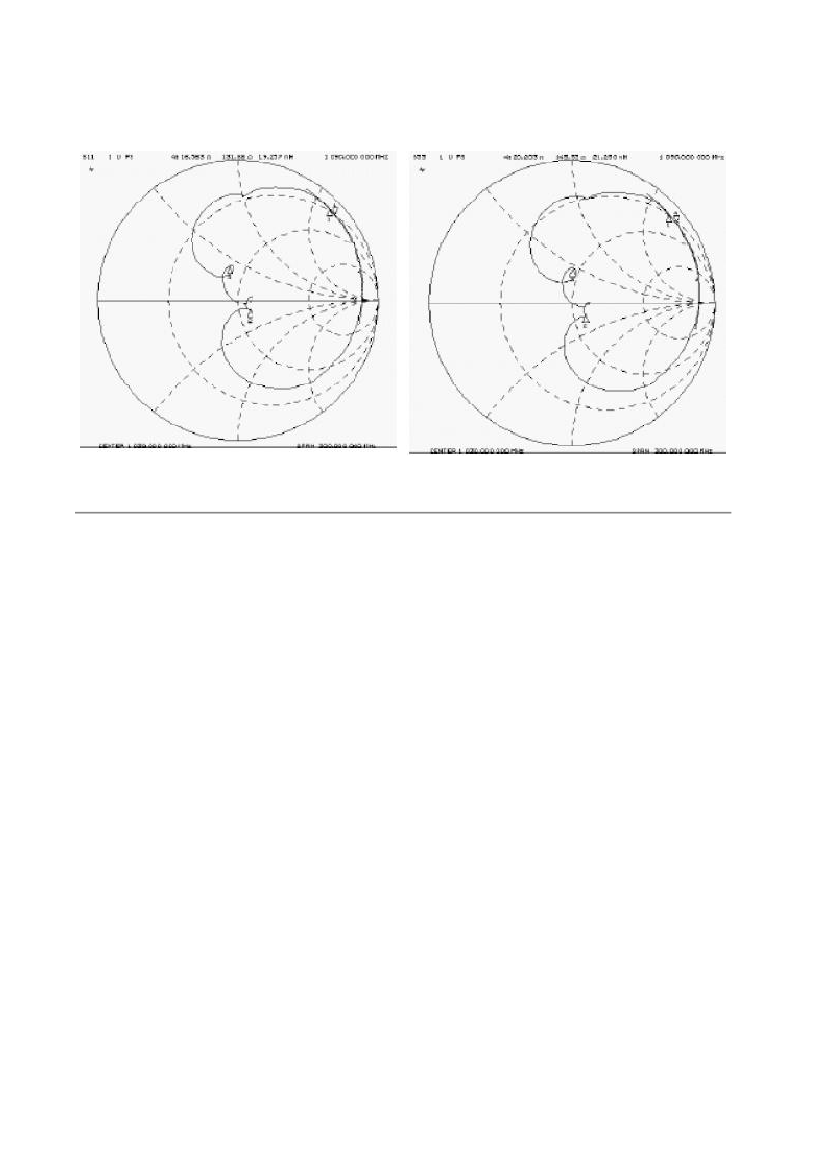

TEST CIRCUIT
