FXT-26BP5023-000 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> FXT-26BP5023-000

FXT-26BP5023-000: DescriptionData Line Filter, 1 Function(s), 200V, 15A,; CategoryAnalog mixed-signal IC filter; File Size53KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

FXT-26BP5023-000 Overview

Data Line Filter, 1 Function(s), 200V, 15A,

FXT-26BP5023-000 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PI-TYPE CIRCUIT
Certification	UL; CSA
capacitance	5000 µF
Maximum DC resistance	0.01 Ω
filter type	DATA LINE FILTER
Maximum insertion loss	45 dB
JESD-609 code	e4
Manufacturer's serial number	FXT
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current	15 A
Rated voltage	200 V
Terminal surface	SILVER
Base Number Matches	1

Preview

Download Datasheet

View All

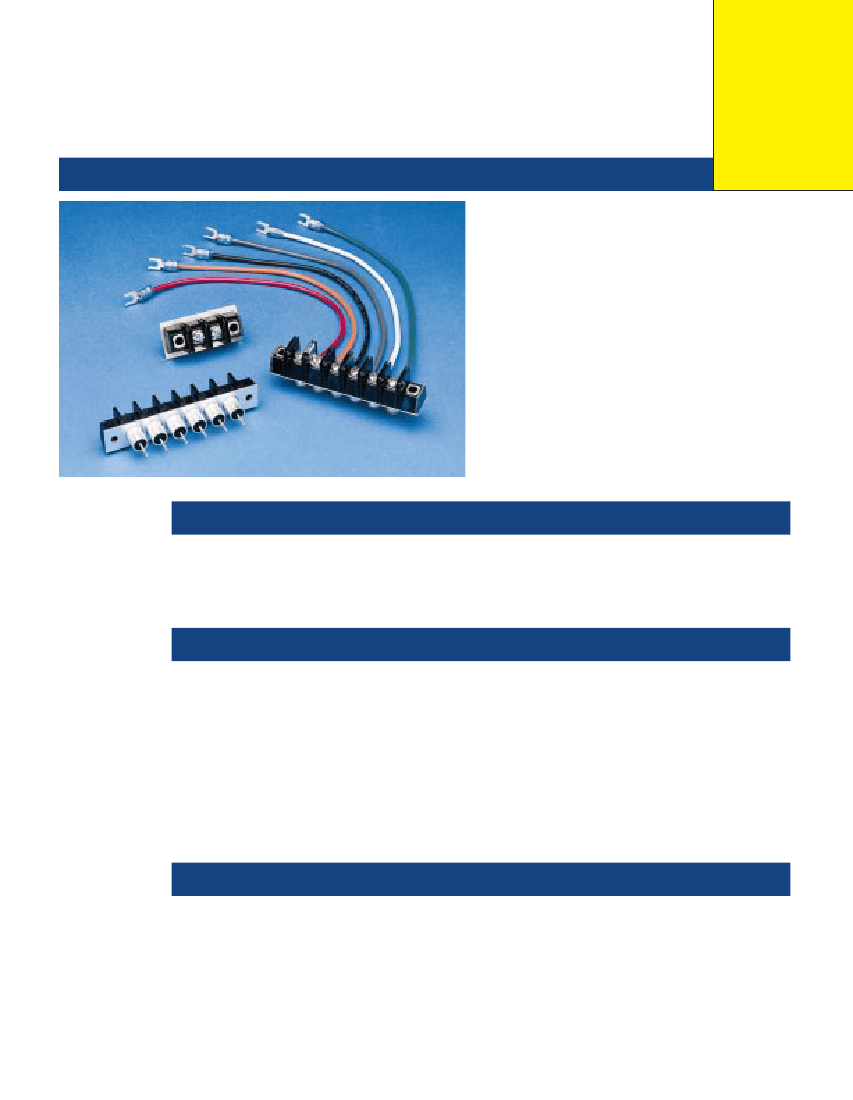

FILTER TERMINAL BLOCKS

DESCRIPTION

FXT

S E R I E S

Amphenol introduces a UL recognized, CSA approved,

250 volt AC rated barrier strip filtered terminal block.

This new terminal block provides excellent EMI/RFI

filtering of AC and DC power and control lines. It

operates at a steady state voltage of 250 VAC and current

of 20A. Capacitance values range from 1000 pF to

5000 pF with male or female disconnects or pigtail.

Application examples include filtering power supplies

in telecommunications equipment, metering, industrial

controls, instrumentation and EDP equipment.

These terminal blocks are available in sizes from

2 positions or greater.

Special electrical/mechanical configurations are available

upon request from factory.

Amphenol

APPLICATIONS

This new terminal block is ideal for metering equipment,

programmable controllers, industrial process control, heavy

equipment controls, power supplies and regulators, surge

sensing equipment, power factor correction, power

distribution equipment, telecommunications, power

management, medical instrument applications, ATM, etc.

FEATURES

• Custom high reliability assemblies with varying cable

lengths and terminations integrate with other functional

devices to supply a complete turnkey assembly.

• UL recognized and CSA approved.

• Filter element provides high insertion loss for EMI/RFI

filtering of AC and DC power and control lines.

• Stress Isolated construction provides protection to filtering

element; especially useful for repeated changes in wiring or

field connections.

• Cost-effective solution for industrial interconnection EMI

filtering problems.

• Termination options available; straight lead, spade, male or

female disconnects, pigtail (12 AWG-22 AWG).

• 2 to 12 terminals in a single row available.

• Cost effective solution for backplane EMI leakage problems.

• 20 amp rating.

PRODUCT SPECIFICATIONS

• Electrical Circuit: Pi

• Operating temperature: -55º C to 125º C

• Working voltage: 200VDC

• Typical capacitance: 2,500 pF + 100% -0%

• Dielectric withstanding voltage: 1700 VDC

• Current rating: 20A

• D.C. resistance: .01 ohms max.
