933116-100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 933116-100

933116-100: DescriptionRECTANGULAR CONNECTOR, SOCKET,; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerBELDEN

Download Datasheet Parametric Compare View All

933116-100 Overview

RECTANGULAR CONNECTOR, SOCKET,

933116-100 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	RECTANGULAR CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

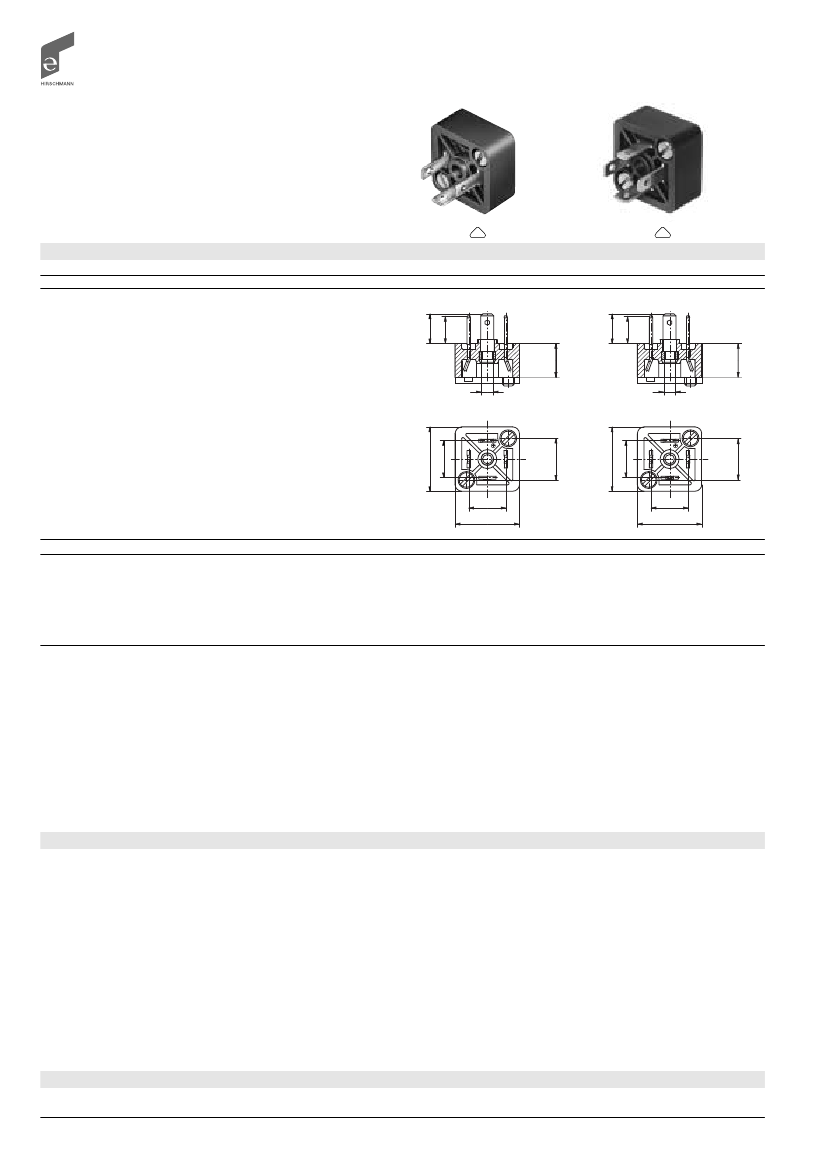

GDS-Serie

Gerätestecker

Appliance connector

Fiche d’appareil

Zulassung

Approval

Homologation

Typ

Type

Bestell-Nr.

Order no.

No. réf.

Verpackungseinheit

Quantity boxed

Unité de vente

Zeichnung

Drawing

Plan

HGC

5610

HGC

5610

GSSA 200

933 117-100

200 Stück

each

pièces

GSSA 300

933 116-100

200 Stück

each

pièces

7,5

8,5

10,4

16,3

9,4

16,3

9,4

16,3

Polzahl

Poles

Pôles

Kontaktbelegung

Contact arrangement

Affectation des contacts

DIN-Norm

DIN-standard

Norme DIN

Industriestandard (9,4 mm)

industrial standard (9,4 mm)

standard industriel (9,4 mm)

Industriestandard (9,4 mm)

industrial standard (9,4 mm)

standard industriel (9,4 mm)

Beschreibung

Description

Gerätestecker mit Zentral-

mutter und 2 Schrauben

M3x8

Appliance connector with central

nut and 2 screws M 3 x 8

Fiche d‘appareil avec écrou

central et 2 vis M 3 x 8

Gerätestecker mit Zentral-

mutter und 2 Schrauben

M3x8

Appliance connector with central

nut and 2 screws M 3 x 8

Fiche d‘appareil avec écrou

central et 2 vis M 3 x 8

Technische Daten nach DIN/VDE 0627 / IEC 61984 (Draft)

Technical data

Données techniques

Allgemeine techn. Daten

General techn. data

Données techn. générales

Betriebsspannung

Operating voltage

Tension nominale

Verschmutzungsgrad

Pollution severity

Seuil d’encrassement

max. Betriebsstrom*

maximum operating current*

courant max.*

Umgebungstemperatur* (Seite

Page

78)

ambient temperature*

temperature ambienté*

Leitungsverschraubung

locking screw

verrouillage à vis

Anschlußart

Type or connection

Mode de branchement

Seite

Page

UC 250 V (=)

–40 °C … +125 °C

Seite

Page

UC 250 V (=)

–40 °C … +125 °C

löten

solder

souder

löten

solder

souder

Zubehör

Accessories

Accesoires

(gesondert zu bestellen

must be ordered seperately

à commander séparément)

(NBR) Flachdichtung

flat gasket

join plat

(ECO) Flachdichtung

flat gasket

join plat

GSSA 300-5

GSSA 300-6

730 233-002

730 312-002

GSSA 300-5

GSSA 300-6

730 233-002

730 312-002

Dichtung für einwandfreie Funktion erforderlich

Sealing must be used for faultless function

joint essentiel pour bon fonctionnement

* siehe Deratingkurve

* see derating curve

* voir la courbe de déclassement

10,6

9,4

8,5

933116-100 Related Products

	933116-100	933117-100
Description	RECTANGULAR CONNECTOR, SOCKET,	RECTANGULAR CONNECTOR, SOCKET,
Reach Compliance Code	compliant	compliant
Body/casing type	SOCKET	SOCKET
Connector type	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR
DIN compliance	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE
Base Number Matches	1	1
