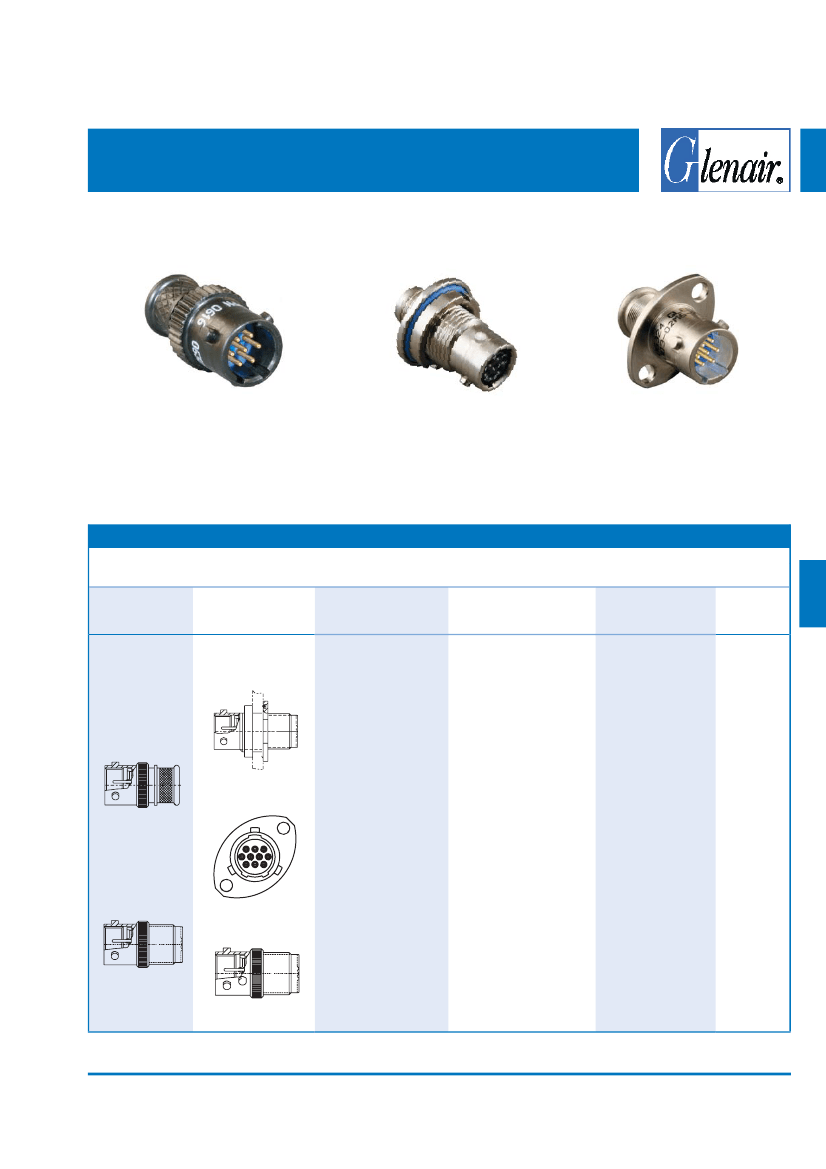

Series 803 “Mighty Mouse”
¼ Turn Bayonet Coupling
Series 803 Bayonet Crimp Receptacles
Push-To-Mate, ¼ Turn to Lock
To-Mate
Lock.
These quick-mating connectors feature
bayonet pins on the receptacle. Simply
push the connectors together, then
rotate the plug coupling nut 90° to lock
the connectors together.
Three Shell Mounting Options:
Jam nut with o-ring for rear panel
mounting, elliptical flange for front
or rear panel mounting, or in-line
receptacles for free-hanging cables.
Two Shell Styles:
Choose the integral
band platform for direct attachment
of a cable shield. Install a heat-shrink
boot, or overmold directly onto the
band platform. An accessory thread is
available for attaching strain reliefs and
backshells.
HOW TO ORDER
Sample Part Number
8 0 3- 00 3
Series
803-003
Receptacle with
Banding Platform
for Direct
Attachment of
Cable Shield and
Overmold
-0 7
Shell Style
NF
Shell Material /
Finish
C
Aluminum / Black
Anodize
6–7
Shell Size- Insert
Arrangement
5-3
6-1
6-4
6-7
7-1
7-10
8-13
9-4
9-19
10-26
12-2
12-37
14-55
15-85
3 #23 Contacts
1 #16 Contact
4 #23 Contacts
7 #23 Contacts
1 #12 Contact
10 #23 Contacts
13 #23 Contacts
4 #16 Contacts
19 #23 Contacts
26 #23 Contacts
2 #12 Contacts
37 #23 Contacts
55 #23 Contacts
85 #23 Contacts
S
Contact Type
Standard #23 contacts
accept #22 through
#28 AWG wire. Use the
following contact codes
to specify these contacts:
N
Shell Key
Position
N
Normal
Alternate
Key
Positions:
-07
Jam Nut
M
Aluminum / Electroless
Nickel
P
Pin
NF
-02
Flange Mount
Aluminum / Cadmium
with Olive Drab
Chromate
S
Socket
Special contacts for
#26 to #30 AWG are
also available. Use the
following contact codes
to specify these contacts:
X
Y
Z
ZN
803-004
Receptacle with
Rear Accessory
Thread
Aluminum / Zinc-
Nickel with Olive Drab
Chromate
ZNU
-01
In-Line
Aluminum / Zinc-Nickel
with Black Chromate
G
Pin
#23 contacts are packaged
with connectors. #16 and #12
contacts must be ordered
separately.
Z1
Stainless Steel /
Passivated
H
Socket
© 2007 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
F-5
Rev. 05-APR-2007
E-Mail: sales@glenair.com
Series 803
A
B
F
D
E
F
G
H
J
K
L
M
N
P
A
1.060 (26.92)
MAX
1.030 (26.16)
MAX
.580 (14.73)
B
MASTER
KEYWAY
ØA
F
D
B
FLATS TYP
E
F
G
H
J
K
Pos.
Shell
Size
5
6
7
8
9
10
12
14
15
ØA
In.
mm.
.575
.635
.755
.755
.830
.890
1.078
1.264
1.325
14.61
16.13
19.18
19.18
21.08
22.61
L
M
© 2007 Glenair, Inc.
Series 803
Series 803 “Mighty Mouse”
¼ Turn Bayonet Coupling

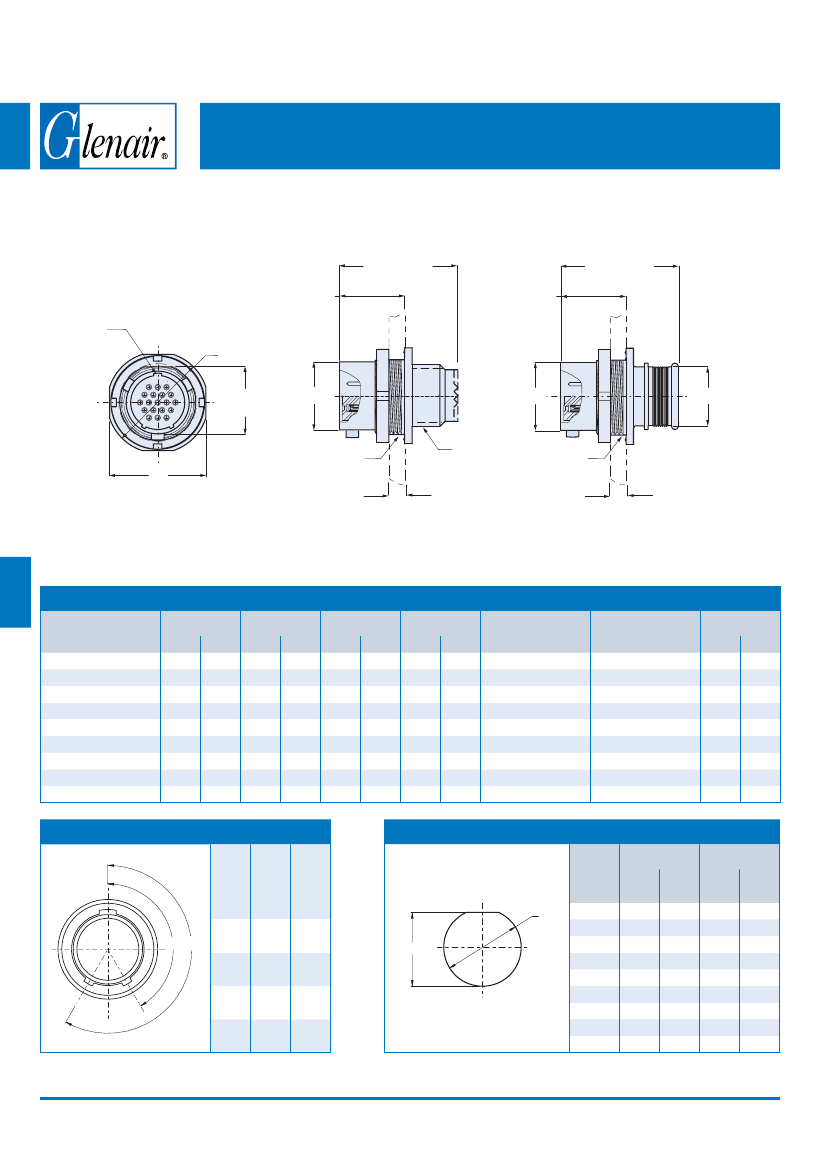

Series 803 Jam Nut Crimp Receptacle Dimensions
.580 (14.73)
C
FLAT
ØD
ØD
ØG
E THREAD
.100 (2.54) MAX
PANEL THICKNESS
F THREAD
E THREAD
.100 (2.54) MAX
PANEL THICKNESS
Accessory Thread
803-004
Integral Band Platform
803-003
DIMENSIONS
B Flats
In.
mm.
.545
.595
.723
.723
.790
.855
13.84
15.11
18.36
18.36
20.07
21.72
C Flat
In.
mm.
.350
.410
.536
.536
.596
.656
8.89
10.41
13.61
13.61
15.14
16.66
21.46
25.96
27.84
ØD
In.
mm.
.300
.362
.436
.508
.561
.635
.714
.865
.925
7.62
9.19
11.07
12.91
14.25
16.13
E Thread
.3750-32 UNEF-2A
.4375-28 UNEF-2A
.5625-32 UN-2A
.5625-32 UN-2A
.6250-28 UN-2A
.6875-28 UN-2A
F Thread
.2500-32 UNEF-2A
.3125-32 UNEF-2A
.4375-28 UNEF-2A
.5625-24 UNEF-2A
.5625-24 UNEF-2A
.6250-28 UNEF-2A
.6875-24 UNEF-2A
.9375-20 UNEF-2A
.9375-20 UNEF-2A
ØG
In.
mm.
.230
.286
.390
.440
.500
.562
.650
.805
.850
5.84
7.26
9.91
11.18
12.70
14.27
16.51
20.45
21.59
27.38 1.044
32.11 1.230
33.66 1.290
26.52
.845
31.24 1.022
32.77 1.096
18.14 .8750-28 UN-2A
21.97 1.0625-20 UN-2A
23.50 1.1250-28 UN-2A
ALTERNATE KEY POSITIONS
JAM NUT PANEL CUTOUT
A Flat
Shell
Size
In.
.360
.420
.551
.551
.609
.666
.859
1.038
1.111
ØB
In.
.385
.448
.573
.573
.635
.698
.885
mm.
mm.
9.78
11.38
14.55
14.55
16.13
17.73
22.48
27.31
28.83
9.14
10.67
13.99
13.99
15.47
16.92
21.82
± .002 ± 0.05
A°
150°
75°
95°
140°
B°
210°
210°
230°
275°
øB
A FLAT
A° B°
N
X
Y
Z
5
6
7
8
9
10
12
14
15
26.37 1.075
28.22 1.135
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
F-6
Rev. 05-APR-2007
E-Mail: sales@glenair.com
Series 803 “Mighty Mouse”
¼ Turn Bayonet Coupling

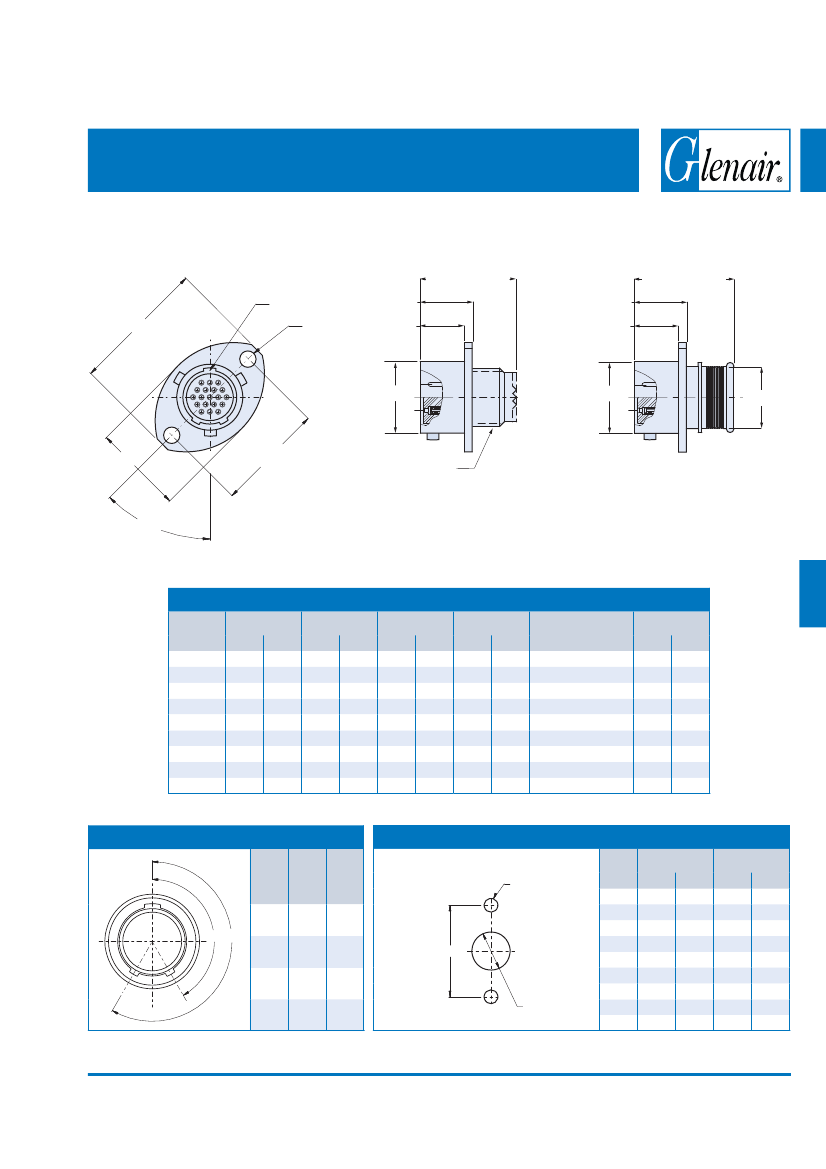

Series 803 Flange Mount Crimp Receptacle
.850 (21.59) MAX
MASTER
.485 (12.32)
KEYWAY
.110/.103 .425 (10.80)
(2.79/2.62)
2 PLCS
ØD
.485 (12.32)
.425 (10.80)
.880 (22.35) MAX
A MAX
ØD
ØF
C REF
B BSC
E THREAD
45º
Accessory Thread
803-004
Integral Band Platform
803-003
DIMENSIONS
Shell
Size
5
6
7
8
9
10
12
14
15
A Max.
In.
.703
.788
.890
1.154
1.207
1.291
1.394
1.545
1.630
mm.
17.86
20.02
22.61
29.31
30.66
32.79
35.41
39.24
41.4
B Bsc.
In.
.513
.598
.708
.964
1.017
1.101
1.204
1.280
1.370
mm.
13.03
15.19
17.98
C Ref.
In.
.460
.522
.590
mm.
11.68
13.26
14.99
16.97
18.31
20.19
22.20
26.67
29.21
In.
ØD
mm.
7.62
9.19
11.07
12.91
14.25
16.13
18.14
21.97
23.50
ØF
E Thread
.2500-32 UNEF-2A
.3125-32 UNEF-2A
.4375-28 UNEF-2A
.4375-28 UNEF-2A
.5625-24 UNEF-2A
.4375-28 UNEF-2A
.6875-24 UNEF-2A
.9375-20 UNEF-2A
.9375-20 UNEF-2A
In.
.230
.286
.390
.440
.500
.562
.650
.805
.850
mm.
5.84
7.26
9.91
11.18
12.70
14.27
16.51
20.45
21.59
.300
.362
.436
.508
.561
.635
.714
.865
.925
24.49
.668
25.83
.721
27.97
.795
30.58
.874
32.51 1.050
34.80 1.150
ALTERNATE KEY POSITIONS
SERIES 803 PANEL CUTOUTS
FLANGE MOUNT
2X ø.122 (3.1)
Shell
Size
5
6
7
8
9
10
12
14
15
A
In.
.513
.598
.708
.964
1.017
1.101
1.204
1.280
1.370
mm.
13.03
15.19
17.98
17.98
25.83
27.97
30.58
32.51
34.80
In.
ØB
mm.
9.25
10.92
13.21
15.04
16.38
18.44
21.13
24.00
25.65
.365
.430
.520
.592
.645
.726
.832
.945
1.010
Pos.
N
A° B°
A°
150°
75°
95°
140°
B°
210°
210°
230°
275°
X
Y
Z
A BSC
øB
© 2007 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
F-7
Rev. 18-MAR-2007
E-Mail: sales@glenair.com
Series 803
A
B
F
D
E
F
G
H
J
K
L
M
N
P
A
B
F
D
E
F
G
H
J
K
Pos.
A°
150°
75°
95°
140°
Shell
Size
5
6
7
8
9
10
12
14
15
A Max.
In.
mm.
.402
.465
.500
.570
.652
.715
.805
.915
.975
10.21
11.81
12.70
14.48
16.56
18.15
20.45
23.24
24.77
L
M
© 2007 Glenair, Inc.
Series 803
Series 803 “Mighty Mouse”
¼ Turn Bayonet Coupling

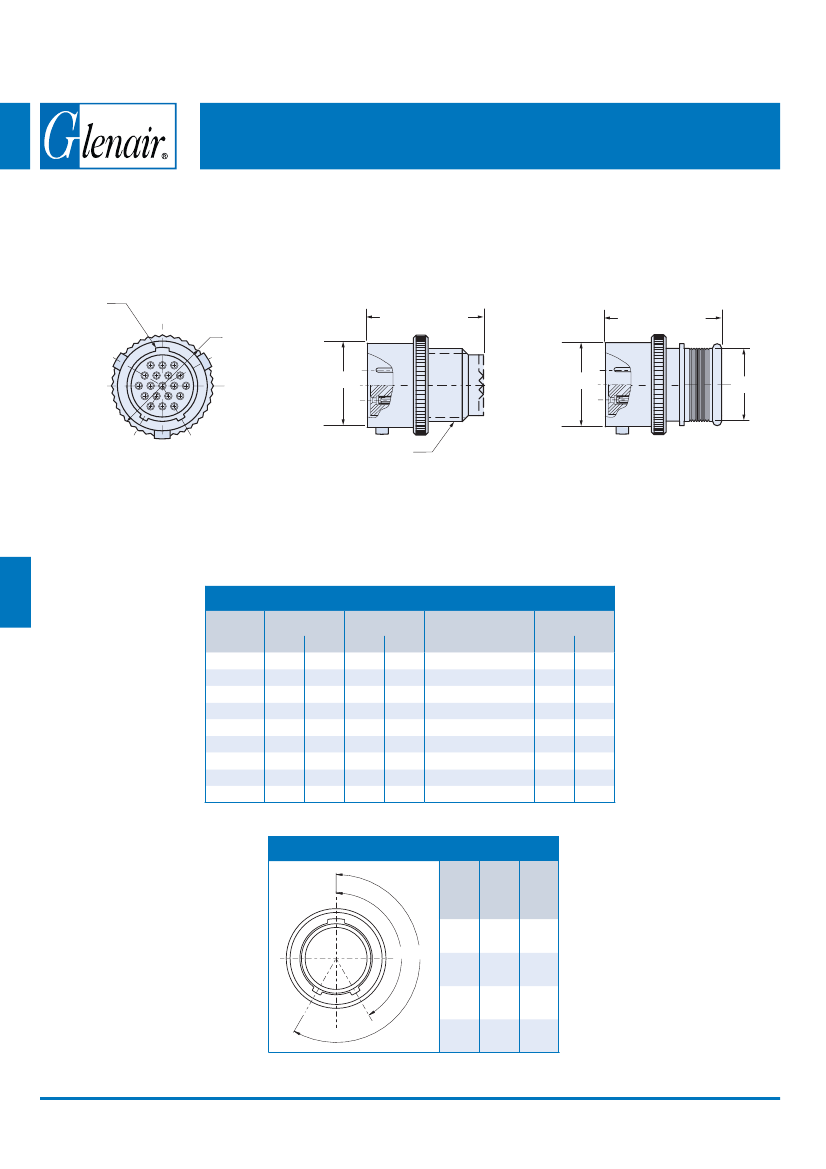

Series 803 In-Line Crimp Receptacle Dimensions
MASTER
KEYWAY
ØA
ØB
.910 (23.11) MAX
.910 (23.11) MAX
ØB
ØD
C THREAD
Accessory Thread
803-004
Integral Band Platform
803-004
DIMENSIONS
ØB
In.
mm.
.300
.362
.436
.508
.561
.635
.714
.865
.925
7.62
9.19
11.07
12.90
14.25
16.13
18.14
21.97
23.50
C Thread
.2500-32 UNEF-2A
.3125-32 UNEF-2A
.4375-28 UNEF-2A
.5625-24 UNEF-2A
.5625-24 UNEF-2A
.6250-28 UNEF-2A
.6875-24 UNEF-2A
.9375-20 UNEF-2A
.9375-20 UNEF-2A
ØD
In.
mm.
.230
.286
.390
.440
.500
.562
.650
.805
.850
5.84
7.26
9.91
11.18
12.70
14.27
16.51
20.45
21.59
ALTERNATE KEY POSITIONS
B°
210°
210°
230°
275°
N
A° B°
X
Y
Z
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
F-8
Rev. 05-APR-2007
E-Mail: sales@glenair.com
