803-002-06ZN6-4SN datasheet, PDF

Datasheet> All Categories > The connector> The connector> 803-002-06ZN6-4SN

803-002-06ZN6-4SN: Description4 CONTACT(S), ALUMINUM ALLOY, FEMALE, CIRCULAR CONNECTOR, PLUG; CategoryThe connector The connector; File Size156KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

803-002-06ZN6-4SN Overview

4 CONTACT(S), ALUMINUM ALLOY, FEMALE, CIRCULAR CONNECTOR, PLUG

803-002-06ZN6-4SN Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	17 weeks 1 day
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	SPLASH PROOF
Shell surface	ZINC NICKEL WITH CHROMATE PLATED
Shell material	ALUMINUM ALLOY
Housing size	6
Total number of contacts	4

Preview

Download Datasheet

View All

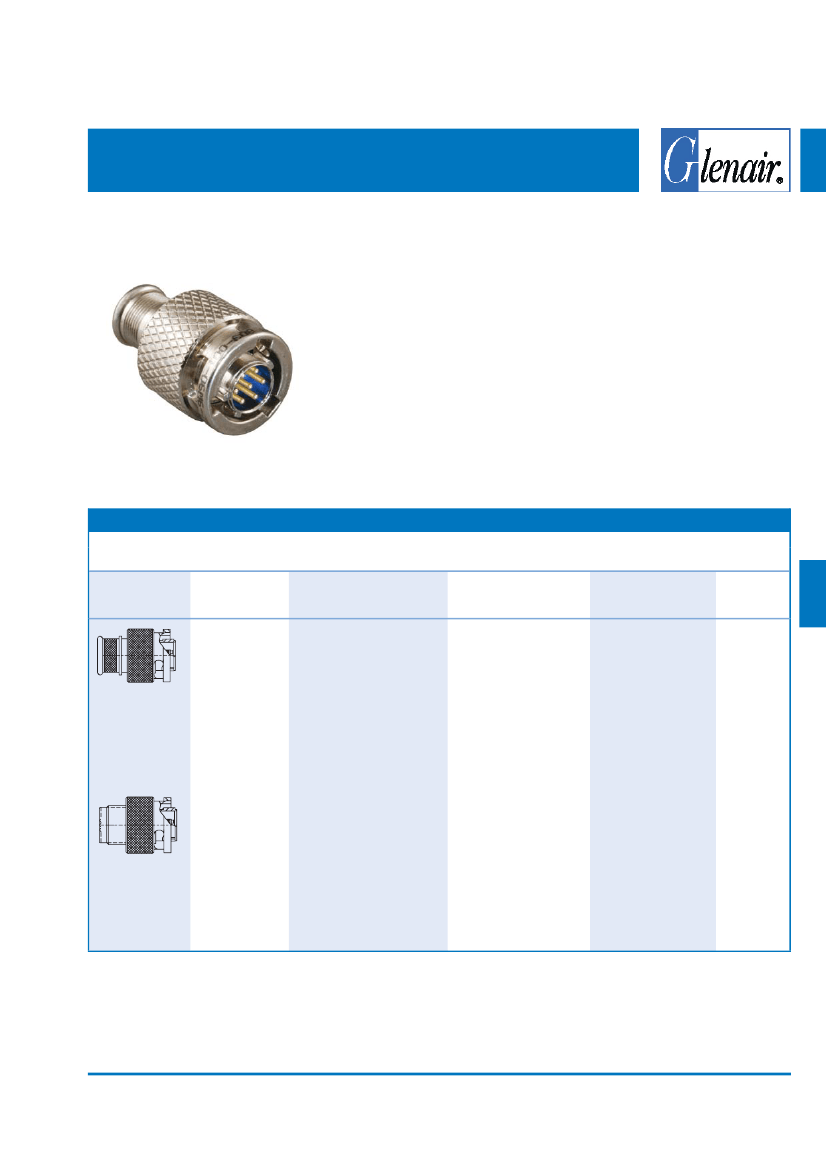

Series 803 “Mighty Mouse”

¼ Turn Bayonet Coupling

Series 803 Bayonet Cable Plugs

Two Shell Styles:

Integral band

platform for direct shield attachment

using

BAND-IT

termination system,

or accessory thread providing

accommodation for a wide variety of

strain reliefs and backshells.

Push-To-Mate, ¼ Turn to Lock.

These quick-mating connectors

feature bayonet pins on the

receptacle. Simply push the

connectors together, then rotate the

plug coupling nut 90° to lock the

connectors together.

Series 803 connectors are suitable for

Light-to-Medium Duty

applications

such as test and measurement,

telemetry and communications gear.

Splashproof

interface withstands

exposure to rain and condensation.

The Series 803 is not recommended

for water immersion.

S i

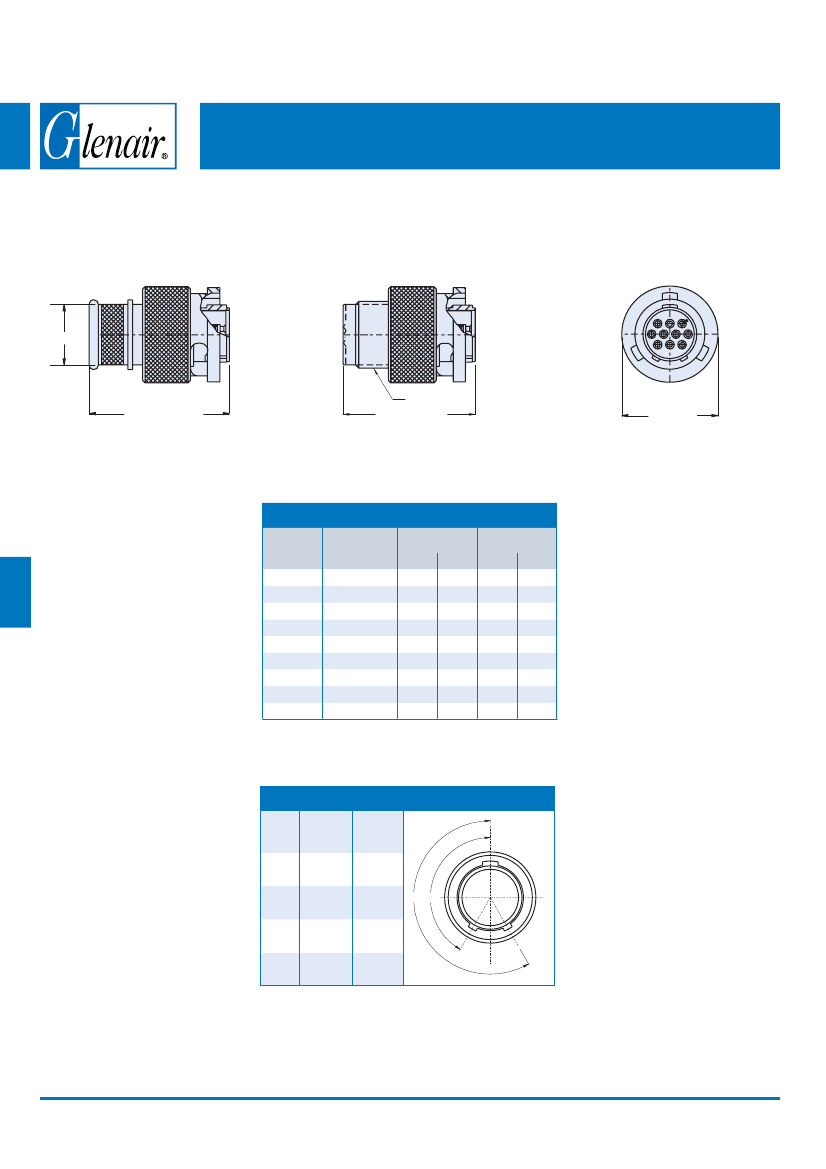

Series 803 Plugs

HOW TO ORDER

Sample Part Number

803-001

Series

-06

Shell Style

-06

Plug

Shell Material / Finish

9–19

Shell Size- Insert

Arrangement

3 #23 Contacts

1 #16 Contact

4 #23 Contacts

7 #23 Contacts

1 #12 Contact

10 #23 Contacts

13 #23 Contacts

4 #16 Contacts

19 #23 Contacts

26 #23 Contacts

2 #12 Contacts

37 #23 Contacts

55 #23 Contacts

85 #23 Contacts

Contact Type

Shell Key

Position

803-001

Crimp Contact,

Banding Platform

for Direct

Attachment of

Cable Shield and

Overmold

803-002

Rear Accessory

Thread

5-3

Aluminum / Black Anodize

6-1

6-4

Aluminum / Electroless

6-7

Nickel

7-1

7-10

Aluminum / Cadmium with

8-13

Olive Drab Chromate

9-4

9-19

Aluminum / Zinc-Nickel with

10-26

Olive Drab Chromate

12-2

ZNU

12-37

Aluminum / Zinc-Nickel with

14-55

Black Chromate

15-85

Stainless Steel / Passivated

Standard #23 contacts

accept #22 through

Normal

#28 AWG wire. Use the

following contact codes to

Alternate Key

specify these contacts:

Positions:

Socket

Special contacts for

#26 to #30 AWG are

also available. Use the

following contact codes to

specify these contacts:

#23 contacts are packaged

with connectors. #16 and #12

contacts must be ordered

separately.

Socket

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

F-3

Rev. 05-APR-2007

E-Mail: sales@glenair.com

Series 803
