Fusion USBL Transceivers
Description

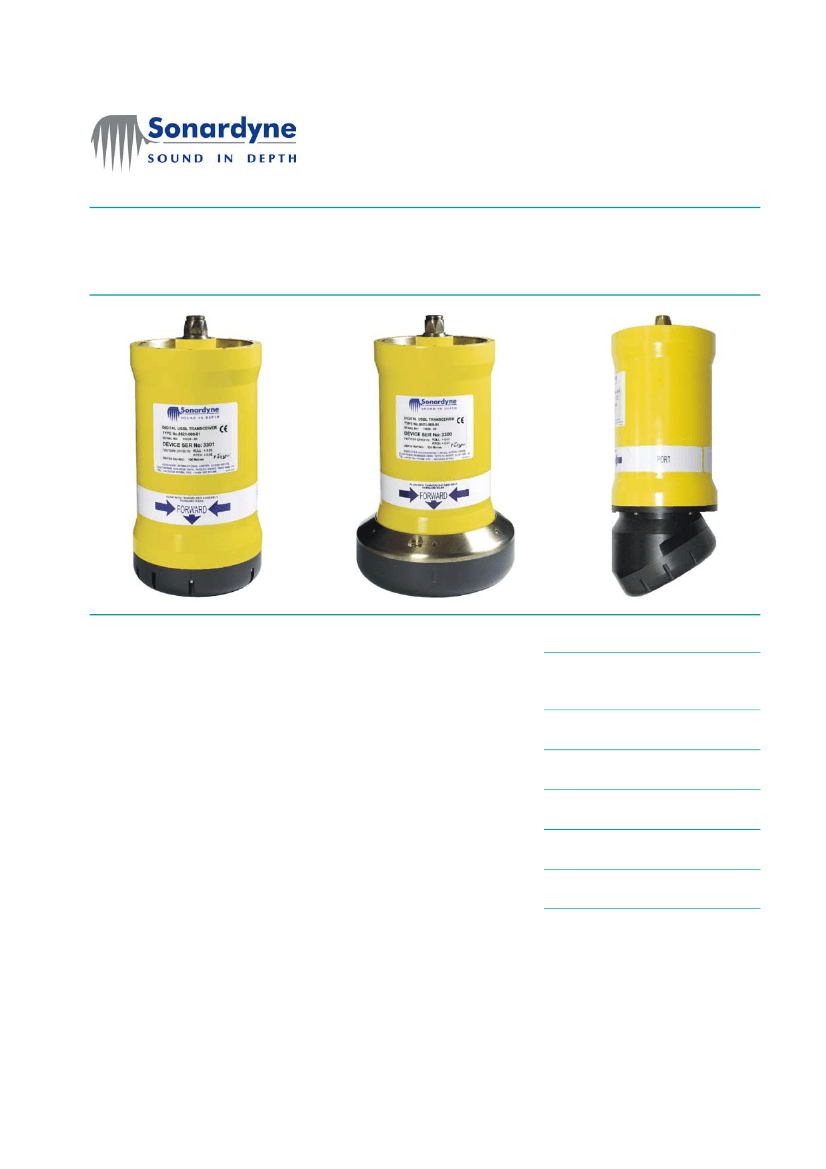

Sonardyne’s family of Fusion Ultra-
Short BaseLine (USBL) transceivers
support the use of modern
Wideband signal technology,
offering improved noise immunity,
increased dynamic range and
greater accuracy.
The Type 8021 transceiver offers a
hemispherical pattern of acoustic
coverage whilst still ensuring
rejection of vessel noise. The
transceiver allows tracking of targets
from below and to the side of the
vessel and it is suitable for a wide
variety of survey tasks such as
towfish tracking and ROV
positioning.
The Type 8023 transceiver is
optimised to receive signals arriving
within a ±50º cone. Any noise
generated outside of this area, for
example by thrusters, is attenuated
further, therefore improving the
signal to noise ratio and so the
positioning accuracy.
In practise, this has been proven to
allow the accurate positioning of the
noisiest vessels. On quieter vessels, it
enables even deeper depths to be
achieved.
The all new hardware platform on
which the Fusion USBL transceivers
are based means that the units can
be easily upgraded remotely via a
serial interface.
They can also be used as Medium
Frequency Long Baseline (LBL)
transceivers when required. This
removes the cost and inconvenience
of installing and setting up a
separate LBL transceiver when the
need arises.
Key features
•
Choice of transceivers depending
on operating environment,
water depth and vessel
•
Incorporates Sonardyne’s latest
Wideband® signal technology
•
Operates as an LBL transceiver for
all MF frequency operations
•
Remote firmware upgrade via
serial interface
•
Improved noise immunity and
analysis
•
Non-Sonardyne frequencies
supported
Sonardyne UK (Head Office)
T. +44 (0) 1252 872288
F. +44 (0) 1252 876100
E. sales@sonardyne.com
www.sonardyne.com
Specifications
Fusion USBL Transceivers
Feature
Operational Frequency
Transceiver
Performance
Electrical
Communication

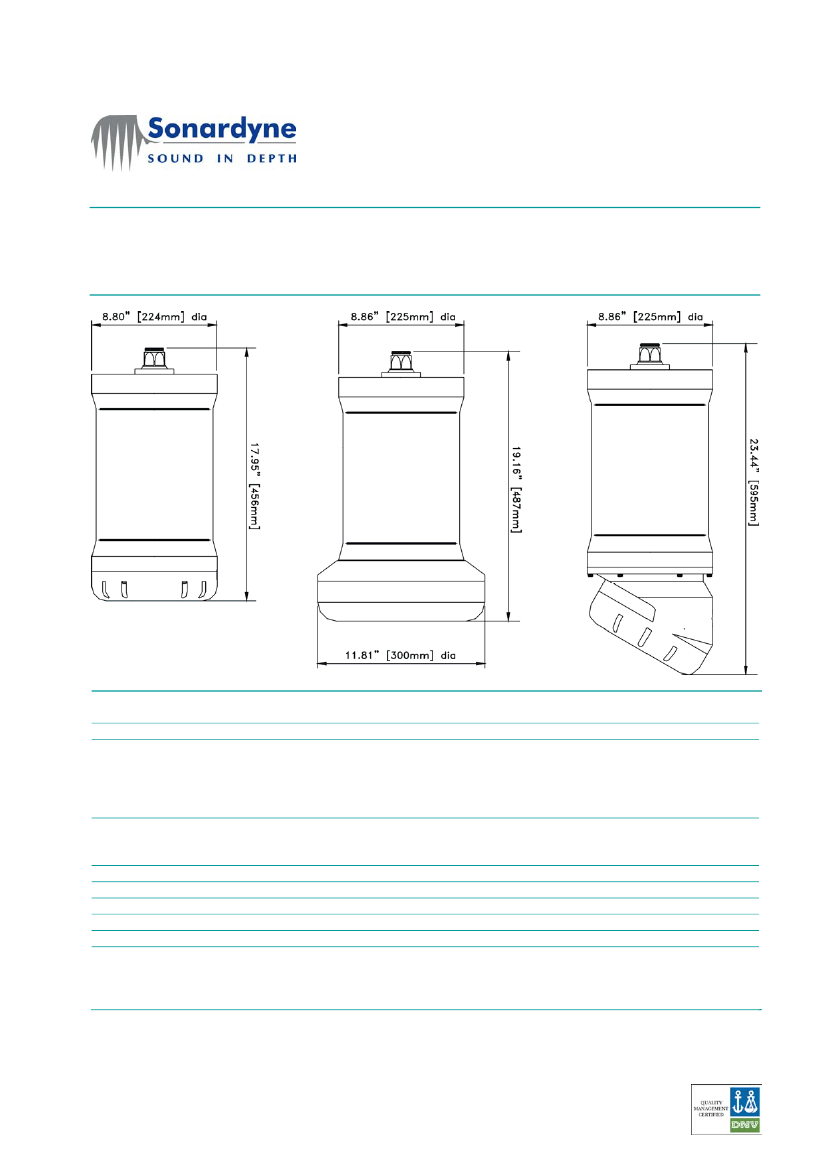

Dimensions (LxDia)
Weight in Air
Weight in Water
Options
Note
Type 8021
Type 8023
MF (18-36kHz)
MF (18-36kHz)
Operating Range
Up to 7,000 Metres
Up to 7,000 Metres
Acoustic Cover
±
90º
±50º
Optimised for deep water
Range Accuracy
Better that 0.2 metres
Better that 0.2 metres
Positioning Repeatability All transceivers tested to better
All transceivers tested to better that 0.1% of
than 0.1% of slant range 1 Drms
slant range 1 Drms
Maximum Power
+48VDC (38V to 50V), can
+48VDC (38V to 50V), can operate on
operate on +24VDC (18V to 30V) +24VDC (18V to 30V)
Typical 15W, Max 50W
Typical 15W, Max 50W
RS485, baud rate switchable
RS485, baud rate switchable
456mm (17.95”) x 225mm (8.86”) 487mm (19.16”) x 300mm (11.81”)
28kg
41kg
13.5kg
20kg
Tilted Array Adaptor
Tilted Array Adapter
The absolute accuracy of the system is dependent upon the quality of attitude
and heading sensors, beacon source level, vessel noise, water depth,
mechanical rigidity of the transceiver deployment machine and proper
calibration of the total system using CASIUS
Specifications subject to change without notice - 04/2008
