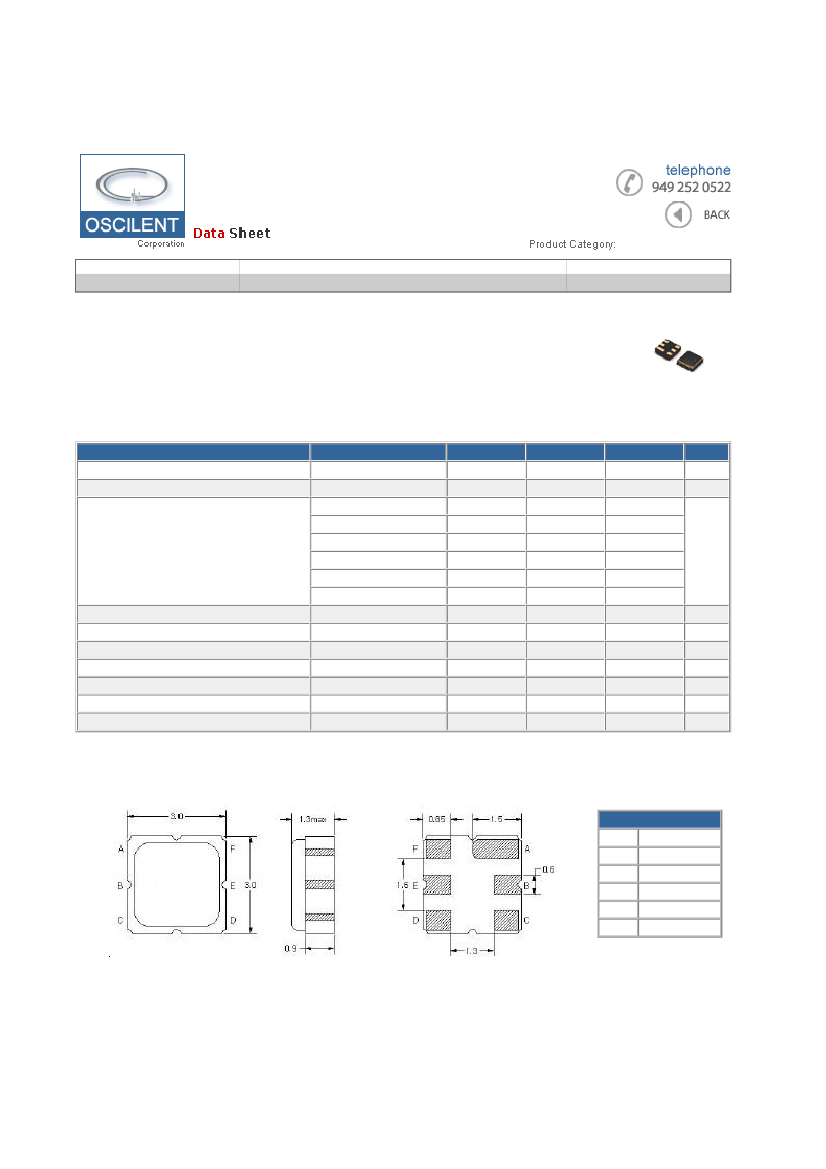

Oscilent Corporation RF SAW Filter | 802-RF915.0M-D
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
802-RF915.0M-D
.
TYPE :
3.0 x 3.0 SMD
Wireless
Jan. 01, 2007
Wireless, RF SAW Filter
PART NUMBER :
802-RF915.0M-D
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Stop Band Attenuation:
Condition
-
902.0~ 927.0 MHz
D.C.~ 800.0 MHz
800.0~845.0 MHz
845.0~ 880.0MHz
950.0~ 990.0 MHz
990.0~ 1200.0 MHz
1200.0~ 2000.0 MHz
Amplitude Ripple
Source Impedence (single ended)*
Load Impendance (single ended)*
VSWR
Maximum DC Voltage
Maximum Input Power
Operating Temperature
902.0~ 927.0MHz
-
-
902.0~ 927.0 MHz
-
-
-
Minimum
-
-
50
50
45
26
50
30
-
-
-
-
-
-
-30
Typical
915.0
2.5
60
55
50
31
58
38
0.7
50
50
1.45
-
-
-
Maximum
-
3.0
-
-
-
-
-
-
1.5
-
-
2.0
5
20
+85
dBp-p
ohm
ohm
-
V
dBm
ºC
dB
Units
MHz
dB
* No Matching Network(Ref. Testing Enviroment Circut as shown below)
.
PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
Ground
Out
Ground
Ground
In
Ground

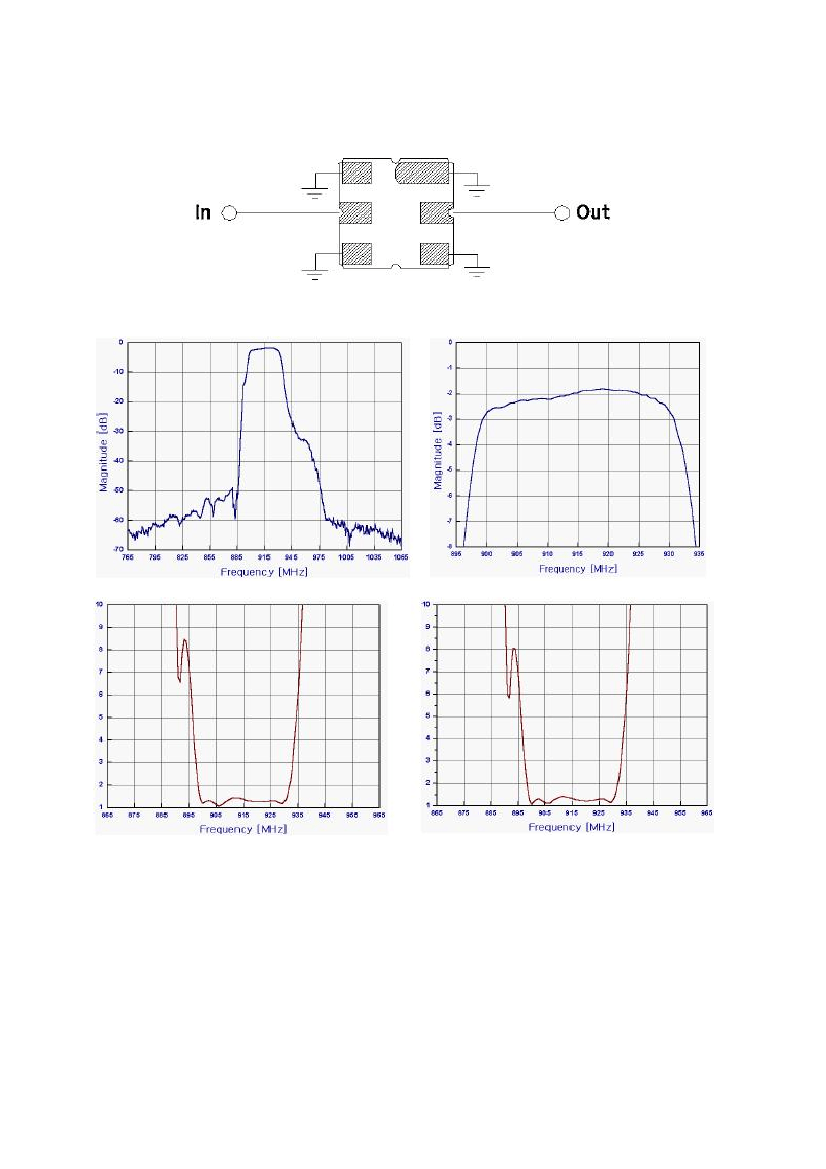

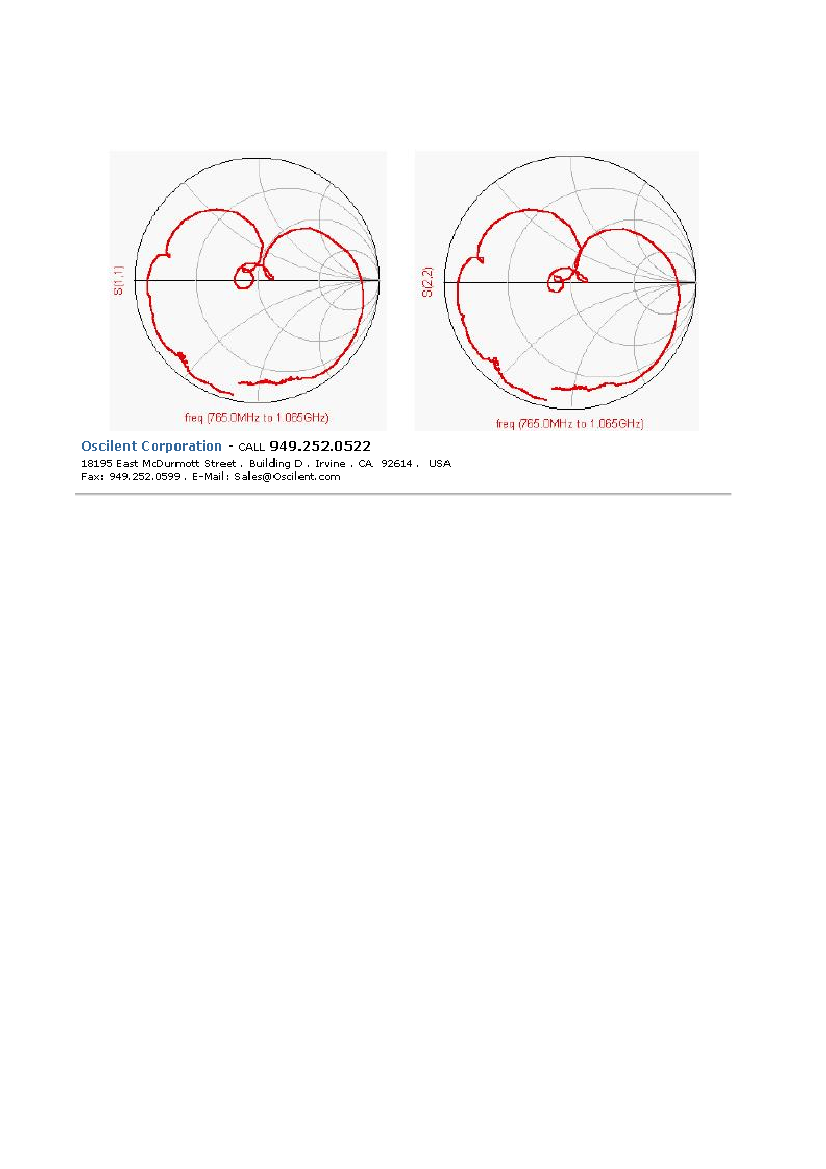

TEST FIXTURE
