802-RF915.0M-C Overview

Remote control receivers

Oscilent Corporation RF SAW Filter | 802-RF915.0M-C
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
802-RF915.0M-C
.
TYPE :
3.0 x 3.0 SMD
Remote control receivers
Jun. 23 2003
915.0 MHz RF SAW Filter
Low Loss (3.0dB max.)
PART NUMBER :
802-RF915.0M-C
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
DC Voltage
Input Power
Operating Temperature
Storage Temperature
Ripple
Stopband Attenuation
Condition
-
902.0 ~ 928.0 MHz
-
-
-
-
902.0 ~ 928.0 MHz
DC ~ 800 MHz
800.0 ~ 845.0 MHz
845.0 ~ 880.0 MHz
950.0 ~ 990.0 MHz
990.0 ~ 1200.0 MHz
1200.0 ~ 2000.0 MHz
VSWR
Teminating Impedance
902.0 ~ 928.0 MHz
-
Minimum
-
-
-
-
-30
-40
-
50.0
50.0
45.0
26.0
50.0
30.0
-
-
Typical
915.0
2.5
-
-
-
-
0.7
60.0
55.0
50.0
31.0
58.0
38.0
1.45
50
Maximum
-
3.0
5
20
+65
+85
1.5
-
-
-
-
-
-
2.0
-
-
ohm
Units
MHz
dB
V
dBm
°C
°C
dB
dB
* Maximum Rating (Ta=25°C)
** Custom SAW RF Filters available. Contact Oscilent for assistance.
.
Pin Layout
A
B
C
D
E
F
Ground
Output
Ground
Ground
Input
Ground

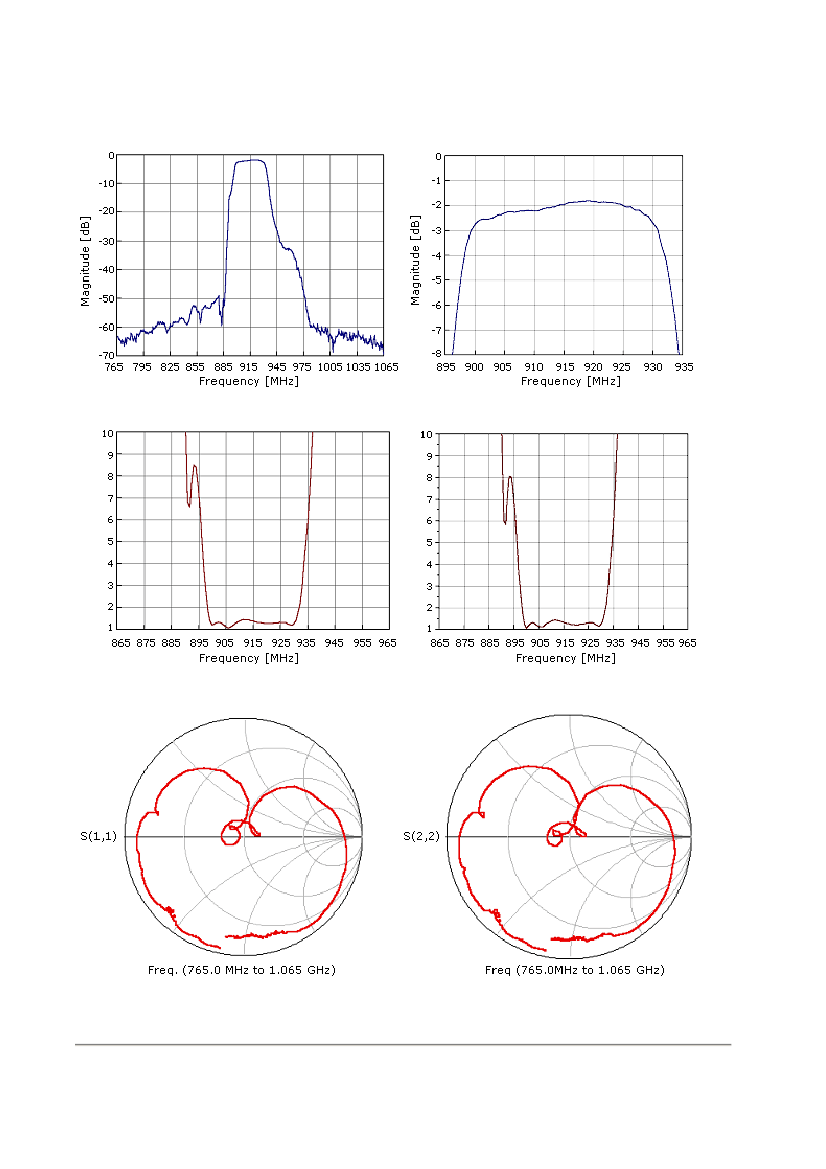

Frequency Reponse
