802-RF897.5M-A Overview

EGSM, RF-Tx SAW Filter

Oscilent Corporation RF SAW Filter | 802-RF897.5M-A
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
802-RF897.5M-A
.
TYPE :
3.0 x 3.0 SMD
EGSM
Jan. 01 2007
EGSM, RF-Tx SAW Filter
PART NUMBER :
802-RF897.5M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Stop Band Attenuation:
Condition
-
880.0~ 915.0 MHz
D.C.~ 840.0 MHz
840.0~860.0 MHz
860.0~ 865.0MHz
925.0~ 935.0 MHz
935.0~ 1850.0 MHz
1850.0~ 3660.0 MHz
Amplitude Ripple
Source Impedence (single ended)*
Load Impendance (single ended)*
VSWR
Maximum DC Voltage
Maximum Input Power
Operating Temperature
880.0~ 915.0MHz
-
-
880.0~ 915.0 MHz
-
-
-
Minimum
-
-
17
17
10
4.5
20
10
-
-
-
-
-
-
-10
Typical
897.5
2.5
23
29
45
15
24
15
1.2
50
50
2.0
-
-
-
Maximum
-
3.5
-
-
-
-
-
-
2.0
-
-
2.5
3
15
+80
dBp-p
ohm
ohm
-
V
dBm
ºC
dB
Units
MHz
dB
* No Matching Network(Ref. Testing Enviroment Circut as shown below)
.
PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
Ground
Out
Ground
Ground
In
Ground

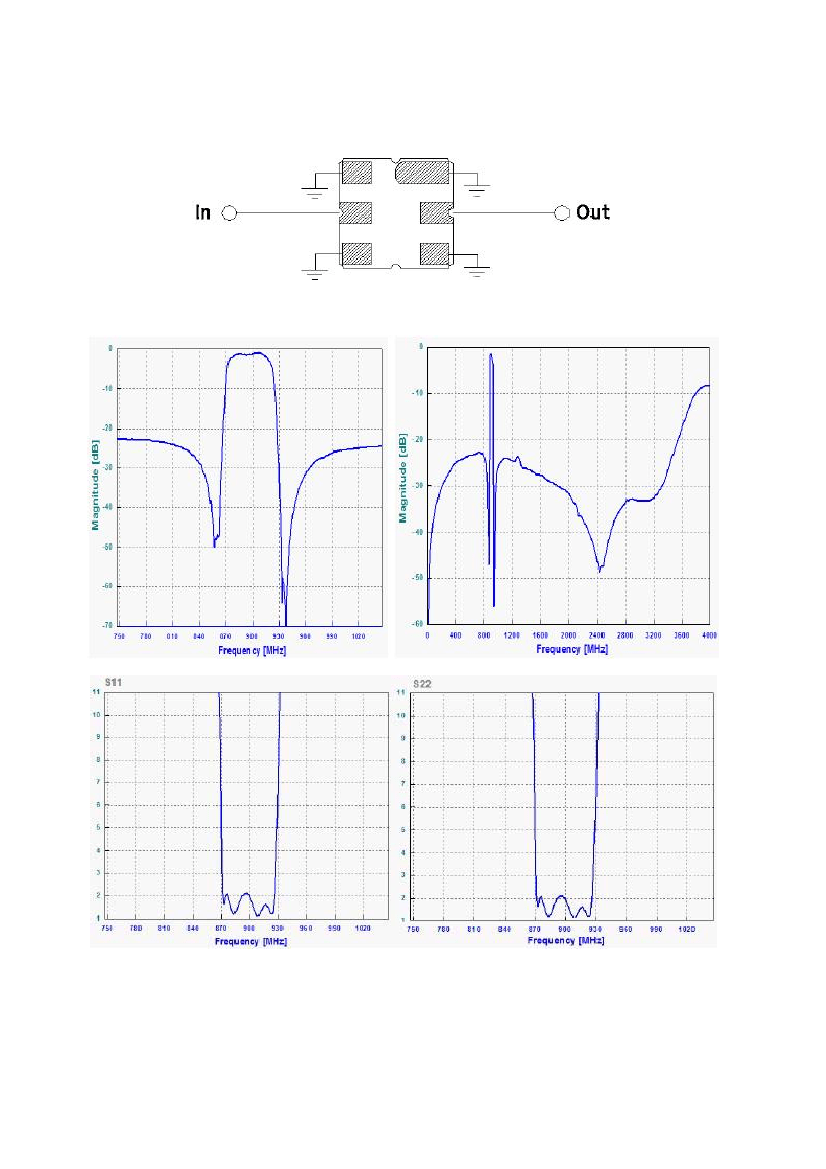

TEST FIXTURE
