802-RF881.5M-A: Description881.5 MHz RF SAW Filter; File Size149KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com

Download Datasheet View All

802-RF881.5M-A Overview

881.5 MHz RF SAW Filter

Preview

Download Datasheet

View All

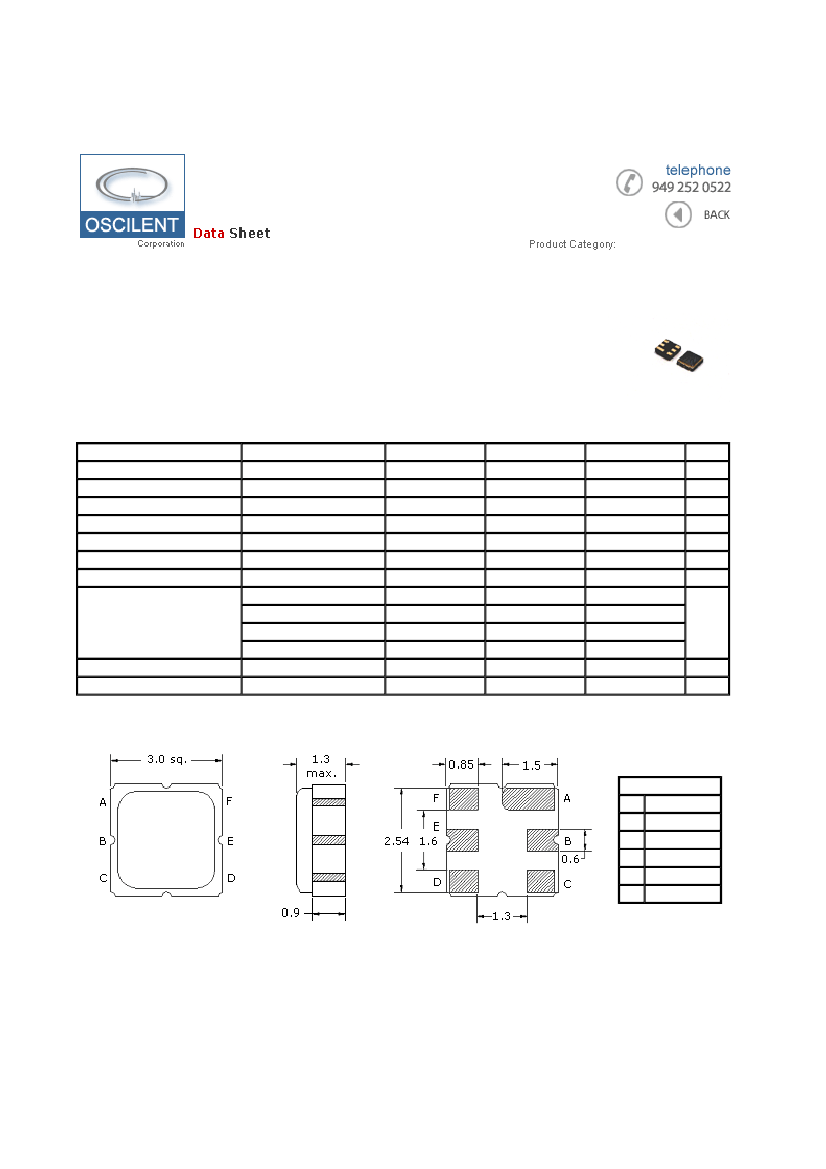

Oscilent Corporation RF SAW Filter | 802-RF881.5M-A

Page 1 of 2

RF SAW Filter

Part Number

Package

Application

Last Modified

802-RF881.5M-A

.

TYPE :

3.0 x 3.0 SMD

CDMA Rx

Apr. 12 2003

881.5 MHz RF SAW Filter

PART NUMBER :

802-RF881.5M-A

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

DC Voltage

Input Power

Operating Temperature

Storage Temperature

Ripple

Stopband Attenuation

Condition

-

869.0 ~ 894.0 MHz

-

869.0 ~ 894.0 MHz

DC ~ 800 MHz

824.0 ~ 849.0 MHz

939.0 ~ 1120.0 MHz

1120.0 ~ 2000.0 MHz

VSWR

Teminating Impedance

869.0 ~ 894.0 MHz

-

Minimum

-

-30

-40

-

25.0

20.0

28.0

20.0

-

Typical

881.5

2.5

-

1.3

27.6

35.0

31.0

30.0

1.8

50

Maximum

-

3.0

5

20

+65

+85

2.0

-

2.0

-

ohm

Units

MHz

dB

V

dBm

°C

dB

* Maximum Rating (Ta=25°C)

** Custom SAW RF Filters available. Contact Oscilent for assistance.

.

Pin Layout

A

B

C

D

E

F

Ground

Output

Ground

Input

Ground

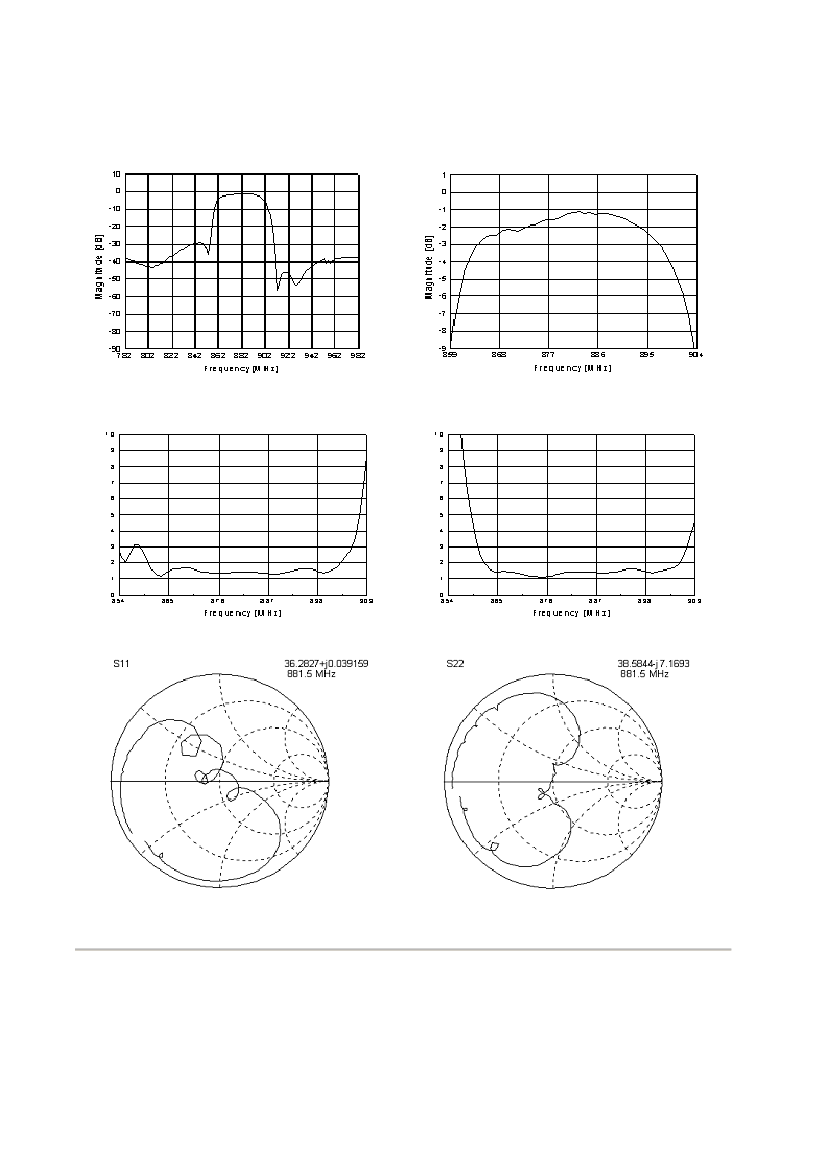

Frequency Reponse

http://www.oscilent.com/spec_pages/rf_sawfilter/rf_802_rf881_5a.htm

12/28/2005
