Oscilent Corporation RF SAW Filter | 802-RF815.5M-B
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
802-RF815.5M-B
.
TYPE :
3.0 x 3.0 SMD
iDEN Tx
Jan. 01, 2007
Low-Loss RF SAW Filter For iDEN Tx
PART NUMBER :
802-RF815.5M-B
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Stop Band Attenuation:
Condition
-
806.0~ 825.0 MHz
851.0~ 866.0 MHz
935.0~940.0 MHz
960.65~ 979.65MHz
1115.30~ 1134.30 MHz
1269.95~ 1288.95 MHz
1612.0~ 1650.0 MHz
1650.0~ 2600.0 MHz
Source Impedence (single ended)*
Load Impendance (single ended)*
VSWR
Group delay ripple
Maximum DC Voltage
Maximum Input Power
Operating Temperature
-
-
806.0~ 825.0 MHz
806.0~ 825.0MHz
-
-
-
Minimum
-
-
40
35
35
37
40
35
25
-
-
-
-
-
-
-30
Typical
815.5
2.4
46
40
41
42
51
43
30
50
50
1.7
15
-
-
-
Maximum
-
3.5
-
-
-
-
-
-
-
-
-
2.0
30
5
20
+70
ohm
ohm
dBp-p
nsp-p
V
dBm
ºC
dB
Units
MHz
dB
* No Matching Network(Ref. Testing Enviroment Circut as shown below)
.
PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
Ground
Out
Ground
Ground
In
Ground

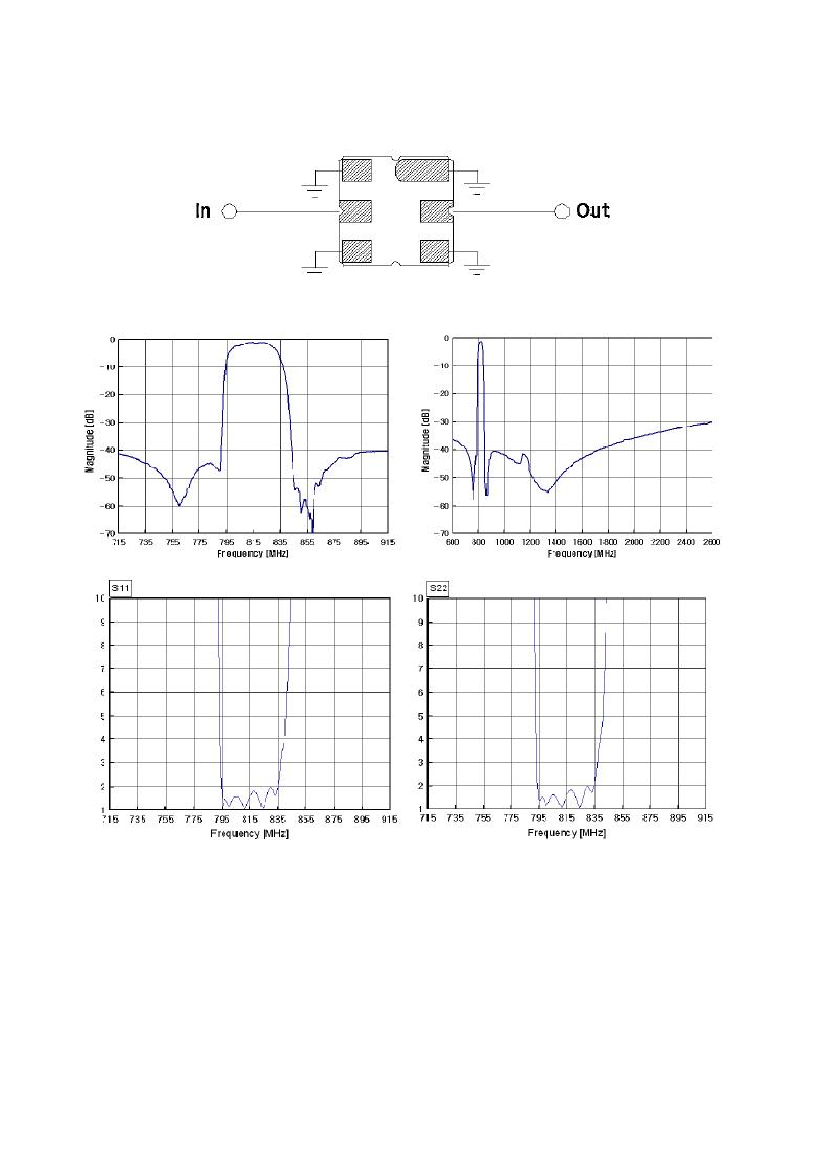

TEST FIXTURE
