802-RF2375.0M-A: DescriptionWIRBO, RF SAW Filter; CategoryAnalog mixed-signal IC filter; File Size512KB，3 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com

Download Datasheet Parametric View All

802-RF2375.0M-A Overview

WIRBO, RF SAW Filter

802-RF2375.0M-A Parametric

Parameter Name	Attribute value
Maker	Oscilent
Reach Compliance Code	compli
Center frequency or cutoff frequency (fo/fc)	2375 MHz
filter type	SAW FILTER
high	1.3 mm
input resistance	50 OHM
Maximum insertion loss	4 dB
length	3 mm
Manufacturer's serial number	802-RF2375.0M-A
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Output impedance	50 OHM Ω
physical size	L3.0XB3.0XH1.3 (mm)/L0.118XB0.118XH0.051 (inch)

Preview

Download Datasheet

View All

RF SAW Filter

Part Number

Package

Application

Last Modified

802-RF2375.0M-A

.

TYPE :

3.0 x 3.0 SMD

WIRBO

Mar. 2, 2007

WIRBO, RF SAW Filter

PART NUMBER :

802-RF2375.0M-A

..

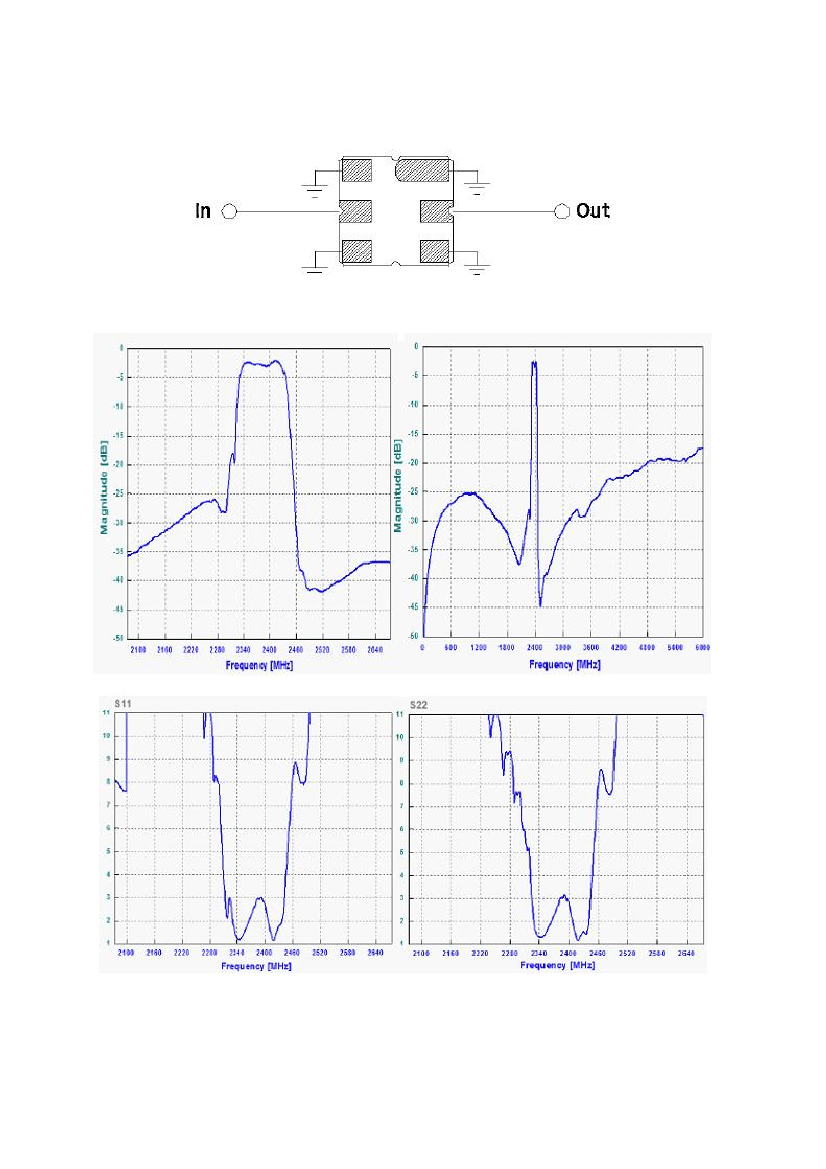

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency (Fo)

Maximum Insertion Loss

Attenuation:

Condition

-

2350.0~ 2400.0 MHz

D.C,~ 2070.0 MHz

2600.0~ 3400.0 MHz

3400.0~ 5000.0MHz

5000.0~ 6000.0 MHz

Source Impedence (single ended)*

Load Impendance (single ended)*

VSWR

Amplitude Ripple

Maximum DC Voltage

Maximum Input Power

Operating Temperature

-

2350.0~ 2400.0 MHz

-

Minimum

-

20

24

14

13

-

-30

Typical

2375.0

2.7

25

28

18

17

50

3.2

0.8

-

Maximum

-

4.0

-

4.0

2.0

0

10

+80

ohm

-

dBp-p

V

dBm

ºC

dB

Units

MHz

dB

* No Matching Network(Ref. Testing Enviroment Circut as shown below)

.

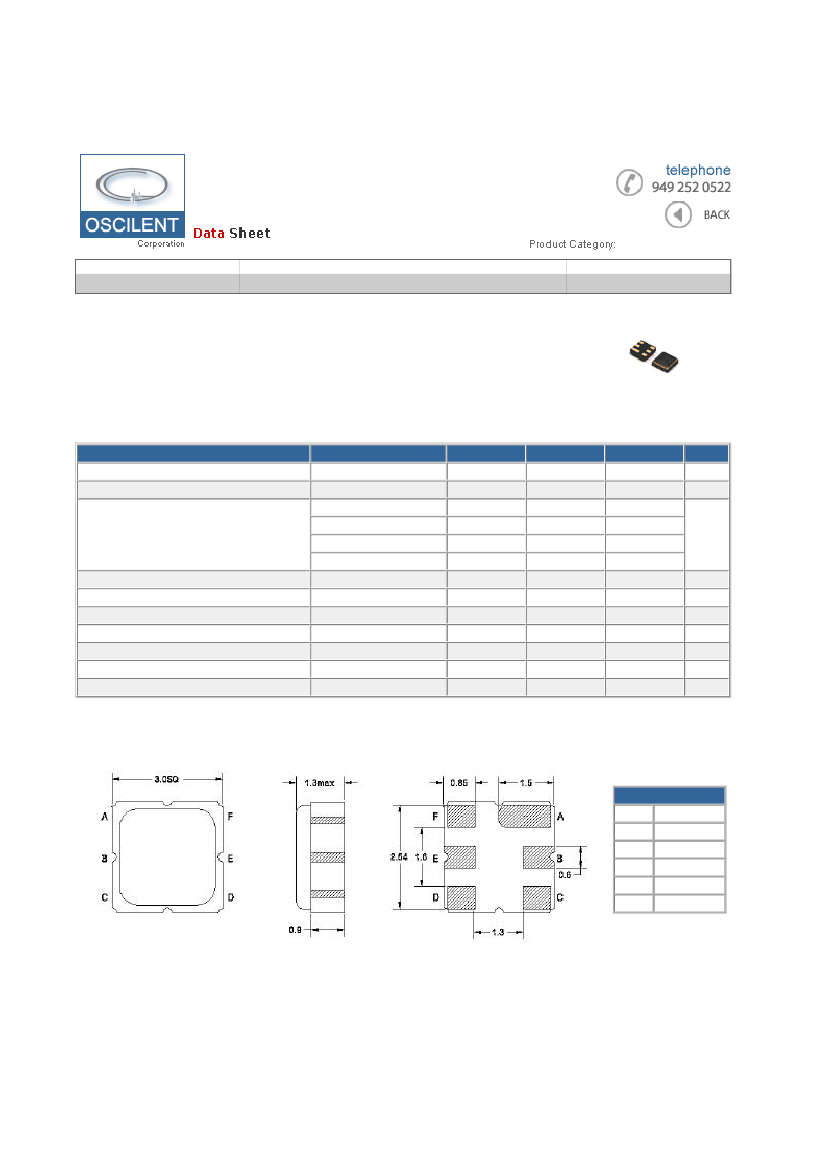

PACKAGE OUTLINE

(mm)

PIN LAYOUT

A

B

C

D

E

F

Ground

Out

Ground

In

Ground

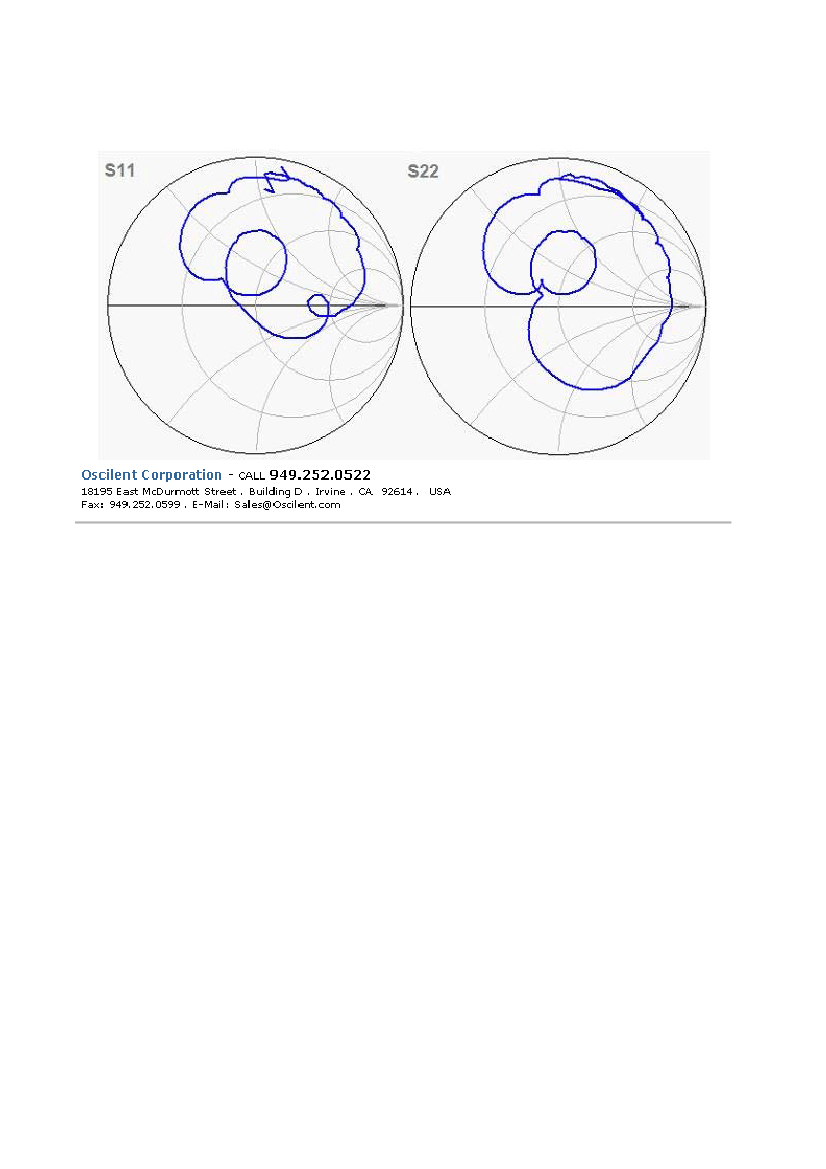

TEST FIXTURE
