802-RF2315.0M-A: DescriptionWIRBO, RF SAW Filter; File Size354KB，3 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com

Download Datasheet View All

802-RF2315.0M-A Overview

WIRBO, RF SAW Filter

Preview

Download Datasheet

View All

RF SAW Filter

Part Number

Package

Application

Last Modified

802-RF2315.0M-A

.

TYPE :

3.0 x 3.0 SMD

WIRBO

Mar. 2, 2007

WIRBO, RF SAW Filter

PART NUMBER :

802-RF2315.0M-A

..

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency (Fo)

Maximum Insertion Loss

Attenuation:

Condition

-

2300.0~ 2330.0 MHz

D.C,~ 2170.0 MHz

2400.0~ 3400.0 MHz

3400.0~ 4500.0MHz

4500.0~ 6000.0 MHz

Source Impedence (single ended)*

Load Impendance (single ended)*

VSWR

Amplitude Ripple

Maximum DC Voltage

Maximum Input Power

Operating Temperature

-

2300.0~ 2330.0 MHz

-

Minimum

-

20

25

14

5

-

-30

Typical

2315.0

2.1

27

30

17

7

50

2.0

0.5

-

Maximum

-

2.5

-

2.4

1.0

0

10

+80

ohm

-

dBp-p

V

dBm

ºC

dB

Units

MHz

dB

* No Matching Network(Ref. Testing Enviroment Circut as shown below)

.

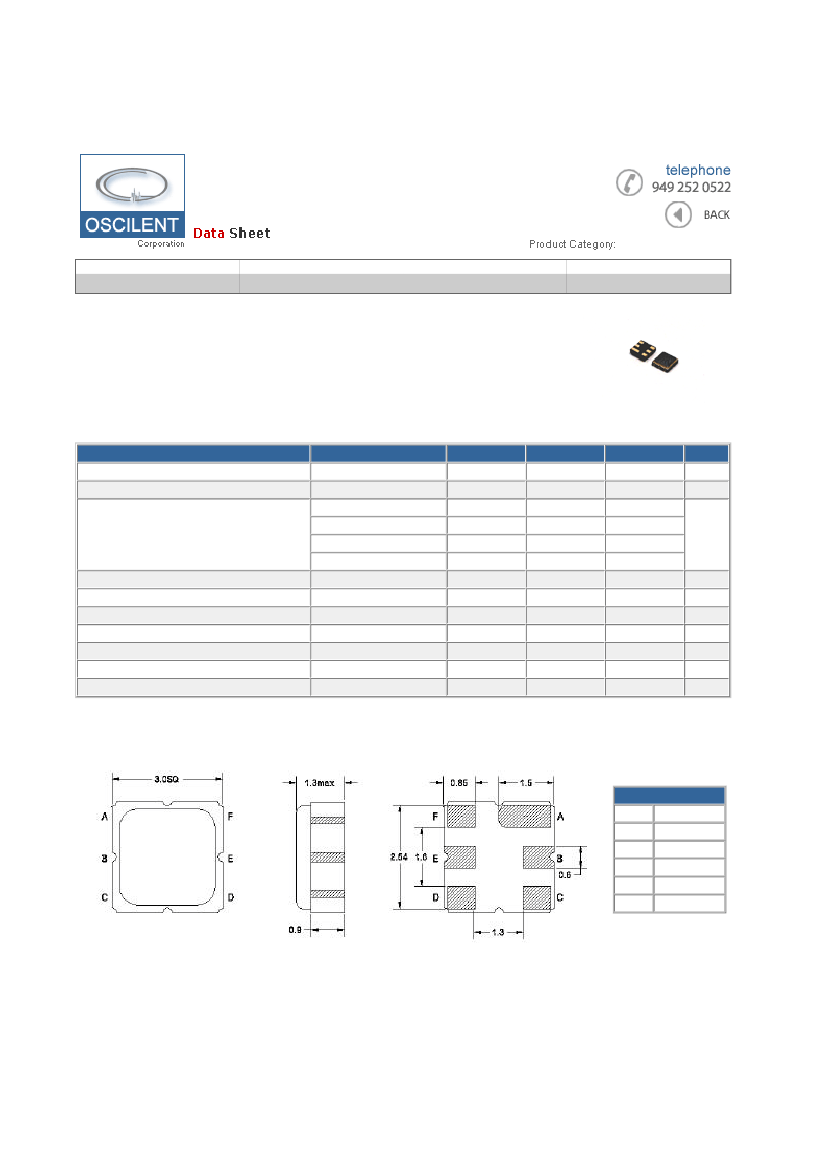

PACKAGE OUTLINE

(mm)

PIN LAYOUT

A

B

C

D

E

F

Ground

Out

Ground

In

Ground

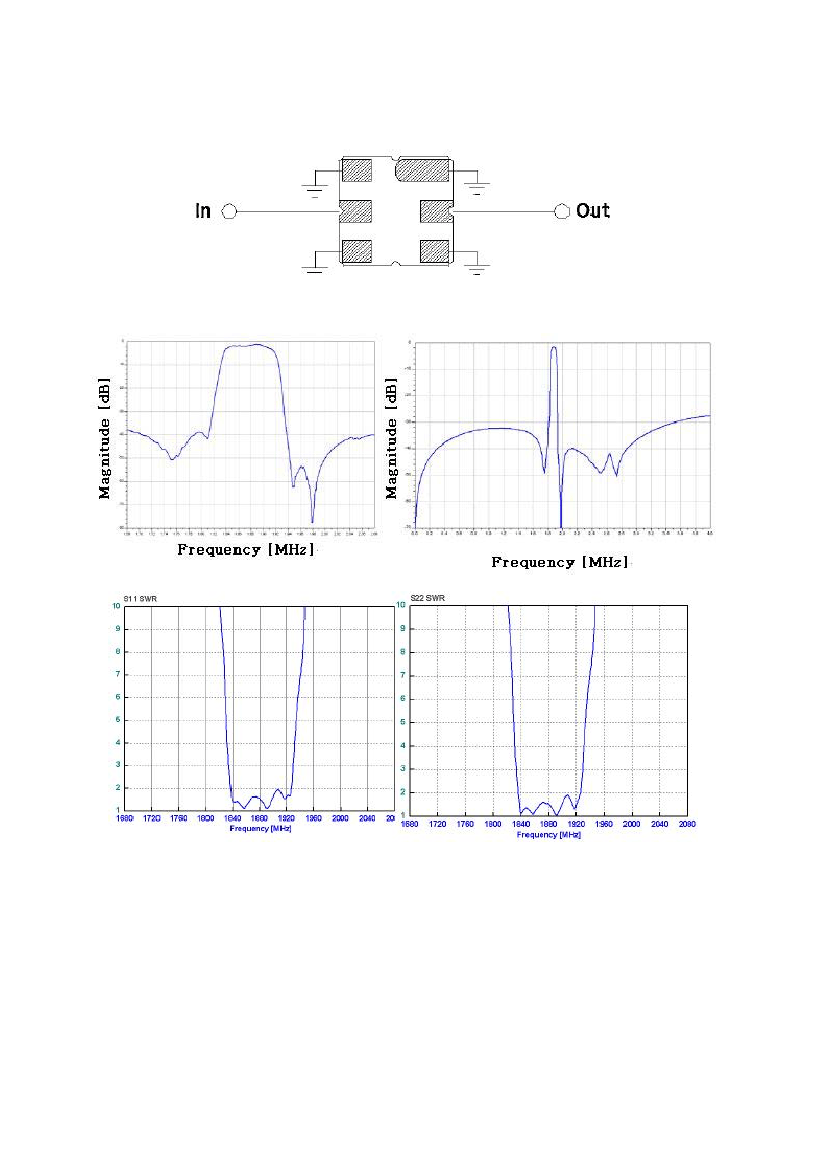

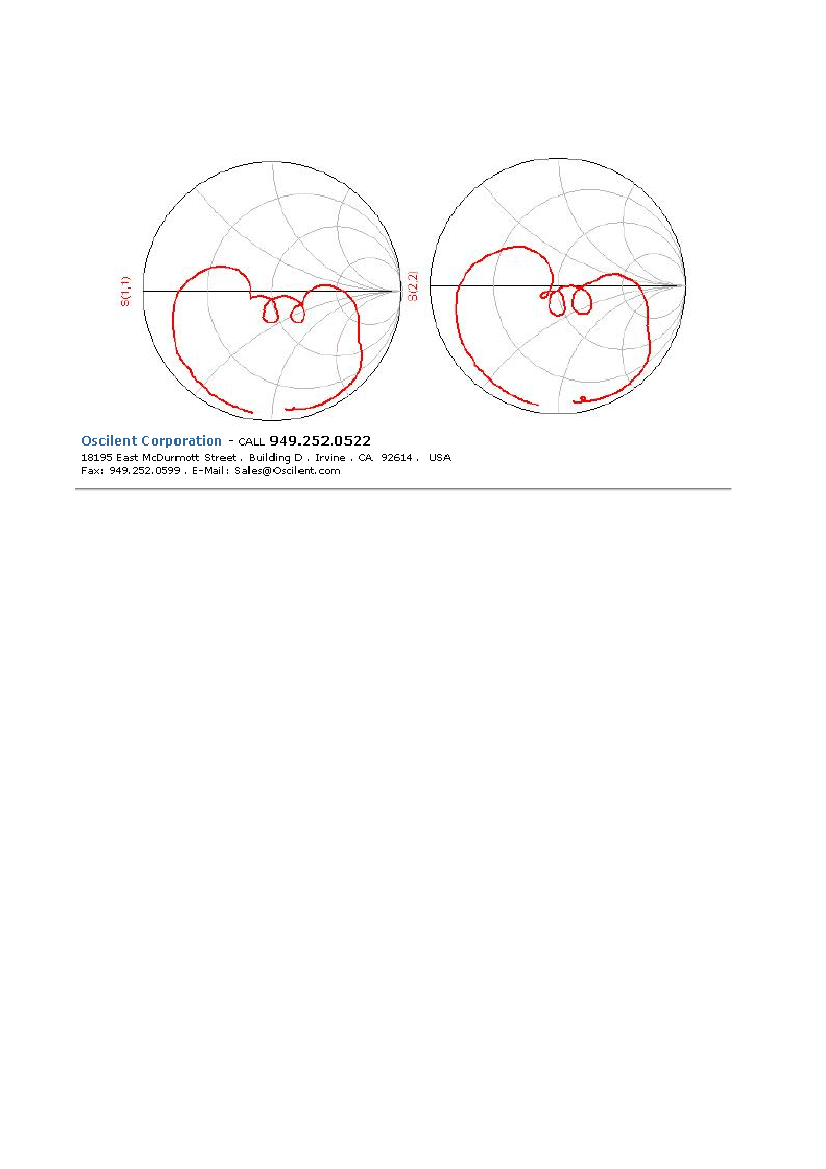

TEST FIXTURE

Recommended Resources

High frequency equivalent circuit diagram of resistor

MM7120 surface grinder BL1-Y1 disconnection delay element schematic circuit

Balancing circuit using triodes

Gain adjustable test equipment isolation amplifier circuit

Capacitor negative feedback sawtooth wave circuit (1)
