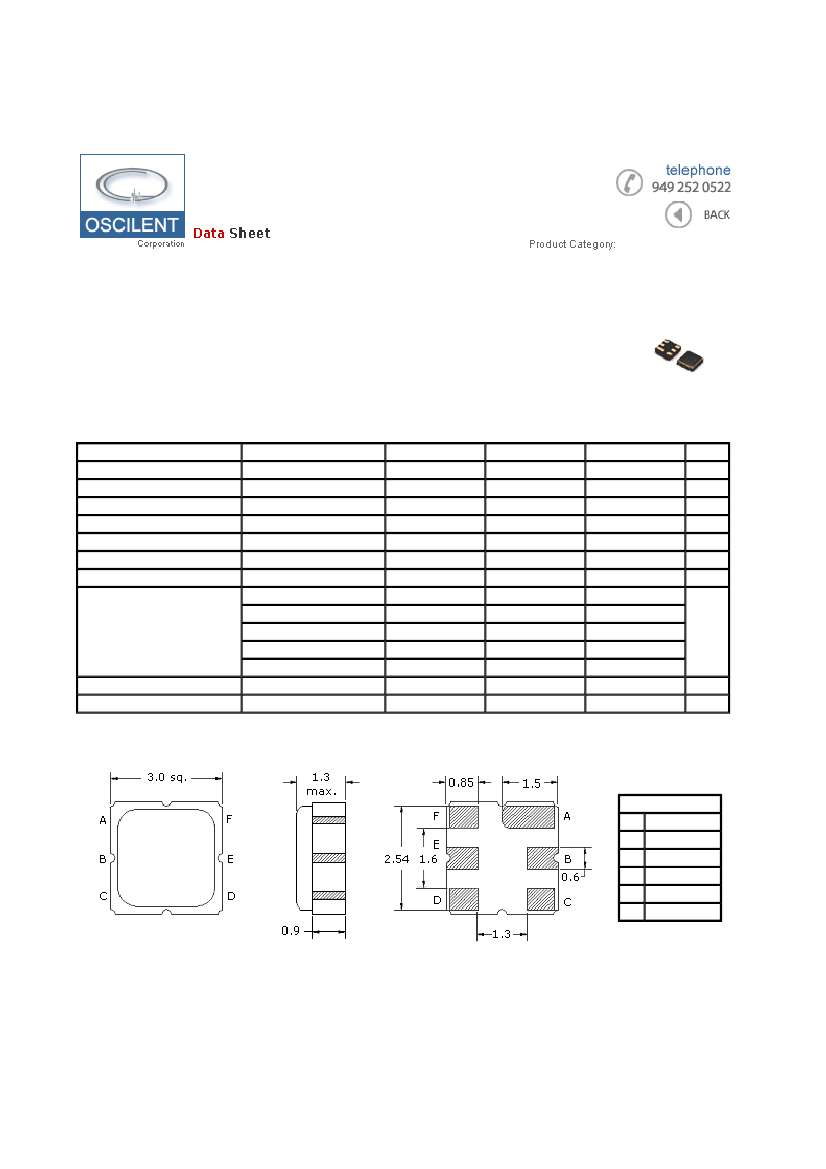

Oscilent Corporation RF SAW Filter | 802-RF1842.5M-A

Page 1 of 2

RF SAW Filter

Part Number

Package

Application

Last Modified

802-RF1842.5M-A

.

TYPE :

3.0 x 3.0 SMD

PCN System

Apr. 12 2003

1842.5 MHz RF SAW Filter

PART NUMBER :

802-RF1842.5M-A

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

DC Voltage

Input Power

Operating Temperature

Storage Temperature

Ripple

Stopband Attenuation

Condition

-

1805.0 ~ 1880.0 MHz

-

1805.0 ~ 1880.0 MHz

DC ~ 1500.0MHz

1600.0 ~ 1710.0 MHz

1710.0 ~ 1785.0 MHz

1920.0 ~ 3120.0 MHz

3120.0 ~ 4000.0 MHz

VSWR

Teminating Impedance

1805.0 ~ 1880.0 MHz

-

Minimum

-

-30

-40

-

20.0

22.0

10.0

25.0

17.0

-

Typical

1842.5

2.3

-

1.3

25.0

27.0

18.0

30.0

26.0

2.0

50

Maximum

-

4.0

0

10

+85

2.5

-

2.5

-

ohm

Units

MHz

dB

V

dBm

°C

dB

* Maximum Rating (Ta=25°C)

** Custom SAW RF Filters available. Contact Oscilent for assistance.

.

Pin Layout

A

B

C

D

E

F

Ground

Output

Ground

Input

Ground

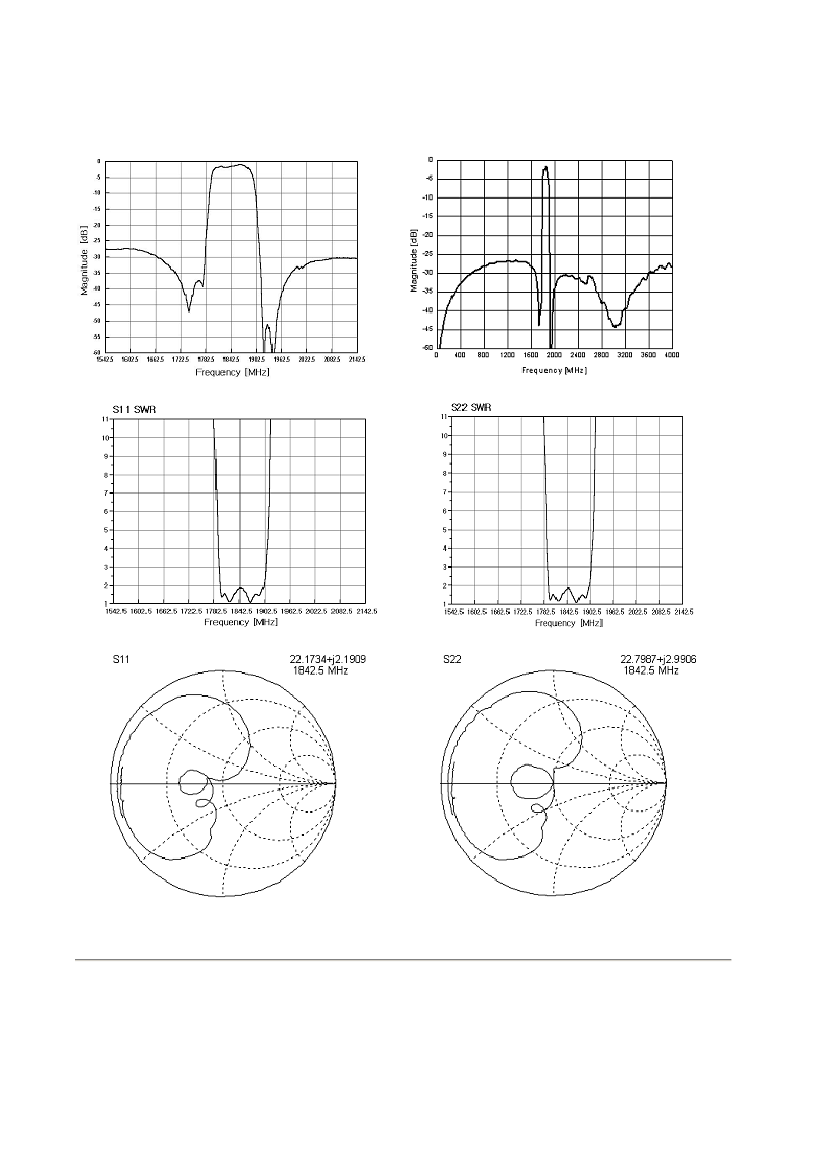

Frequency Reponse
