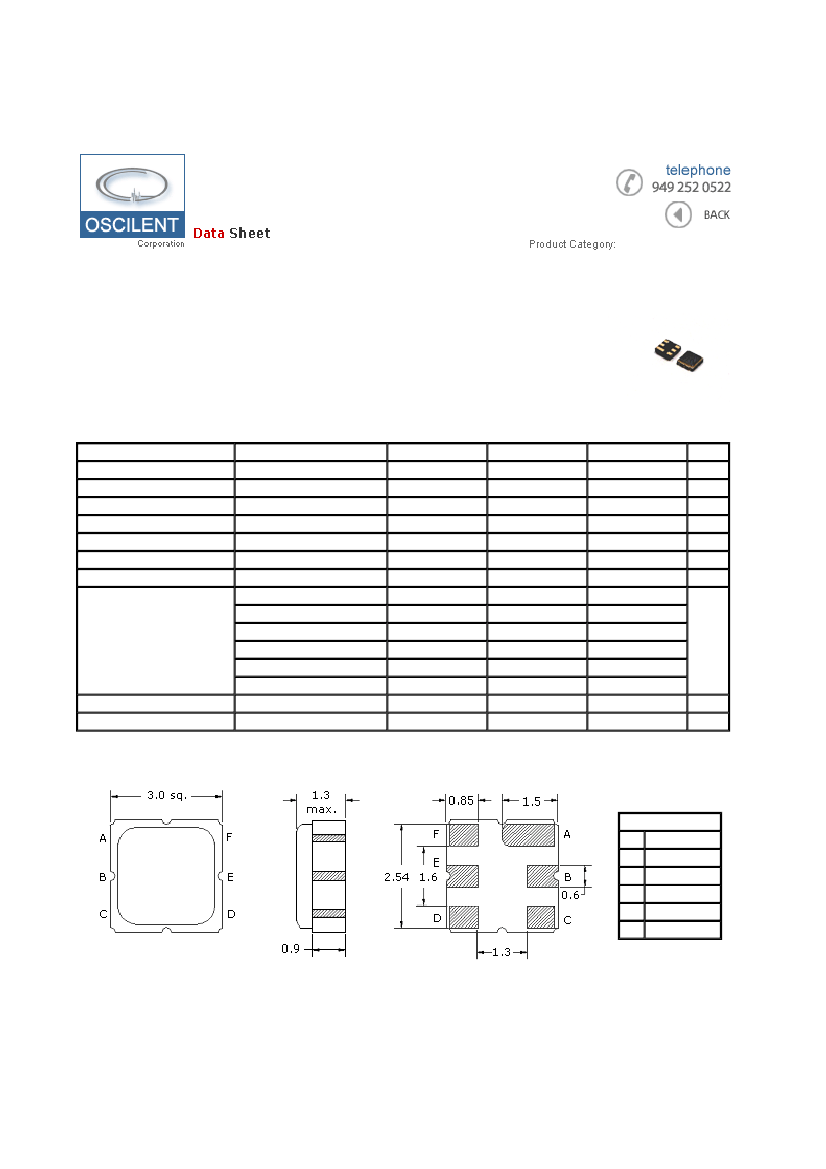

Oscilent Corporation RF SAW Filter | 802-RF1575.42M-B

Page 1 of 2

RF SAW Filter

Part Number

Package

Application

Last Modified

802-RF1575.42M-B

.

TYPE :

3.0 x 3.0 SMD

GPS

Apr. 12 2003

1575.42 MHz RF SAW Filter

PART NUMBER :

802-RF1575.42M-B

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

DC Voltage

Input Power

Operating Temperature

Storage Temperature

Amplitude Ripple

Stopband Attenuation

Condition

-

1574.42 ~ 1576.42 MHz

-

1574.42 ~ 1576.42 MHz

847.5 ~ 852.5 MHz

1497.50 ~ 1502.50 MHz

1532.92 ~ 1537.92 MHz

1612.92 ~ 1617.92MHz

1637.50 ~ 1642.50MHz

1697.50 ~ 1702.50MHz

VSWR

Teminating Impedance

1574.42 ~ 1576.42 MHz

-

Minimum

-

-30

-40

-

35.0

45.0

35.0

45.0

50.0

-

Typical

1575.42

2.9

-

0.1

39.0

56.0

42.0

52.0

60.0

1.6

50

Maximum

-

3.5

0

10

+85

1.0

-

2.0

-

ohm

Units

MHz

dB

V

dBm

°C

dB

* Maximum Rating (Ta=25°C)

** Custom SAW RF Filters available. Contact Oscilent for assistance.

.

Pin Layout

A

B

C

D

E

F

Ground

Output

Ground

Input

Ground

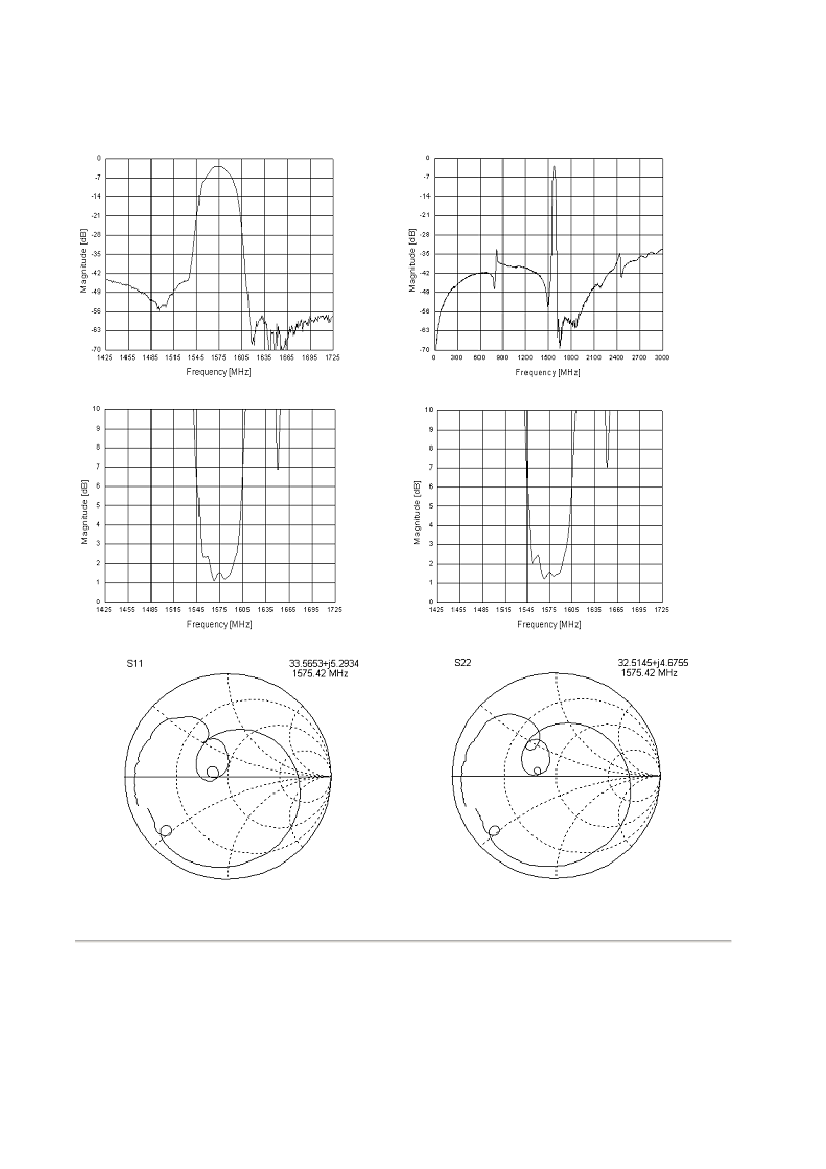

Frequency Reponse

http://www.oscilent.com/spec_pages/rf_sawfilter/rf_802_rf1575_42b.htm

12/30/2005
