MMBV2104LT1 datasheet, PDF - EEWORLD Datasheet

MMBV2104LT1: DescriptionVariable Capacitance Diode, Ultra High Frequency, 12pF C(T), 30V, Silicon, Abrupt, CASE 318-07, 3 PIN; CategoryDiscrete semiconductor diode; File Size100KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

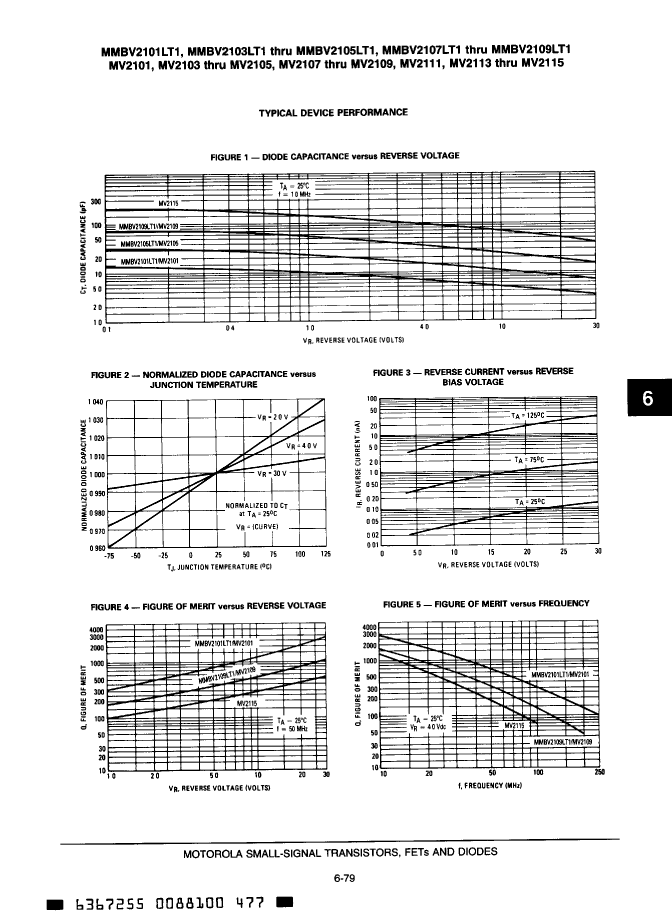

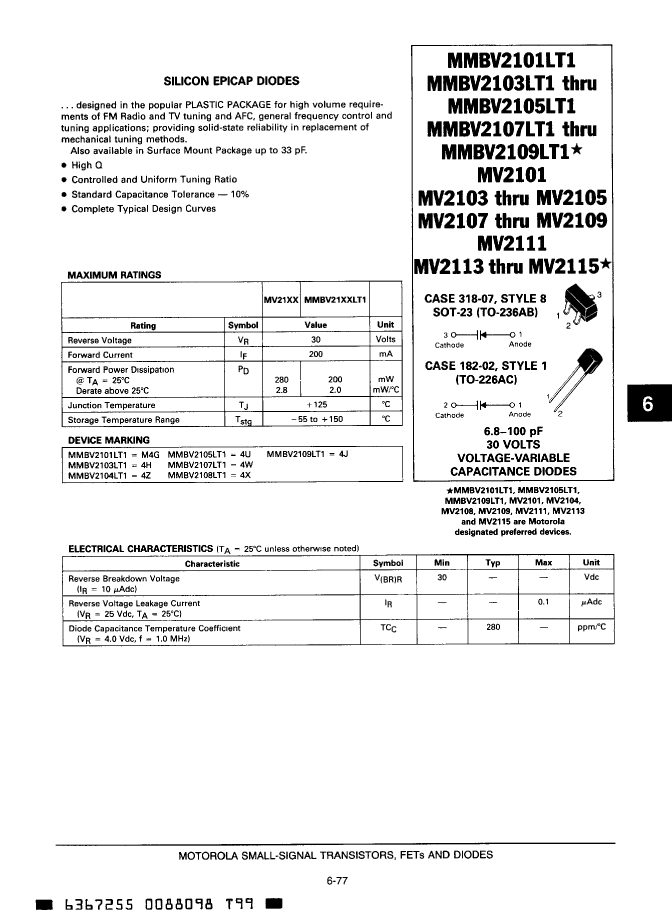

MMBV2104LT1 Overview

Variable Capacitance Diode, Ultra High Frequency, 12pF C(T), 30V, Silicon, Abrupt, CASE 318-07, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	30 V
Configuration	SINGLE
Minimum diode capacitance ratio	2.5
Nominal diode capacitance	12 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
frequency band	ULTRA HIGH FREQUENCY
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
minimum quality factor	400
Maximum repetitive peak reverse voltage	30 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Varactor Diode Classification	ABRUPT
Base Number Matches	1

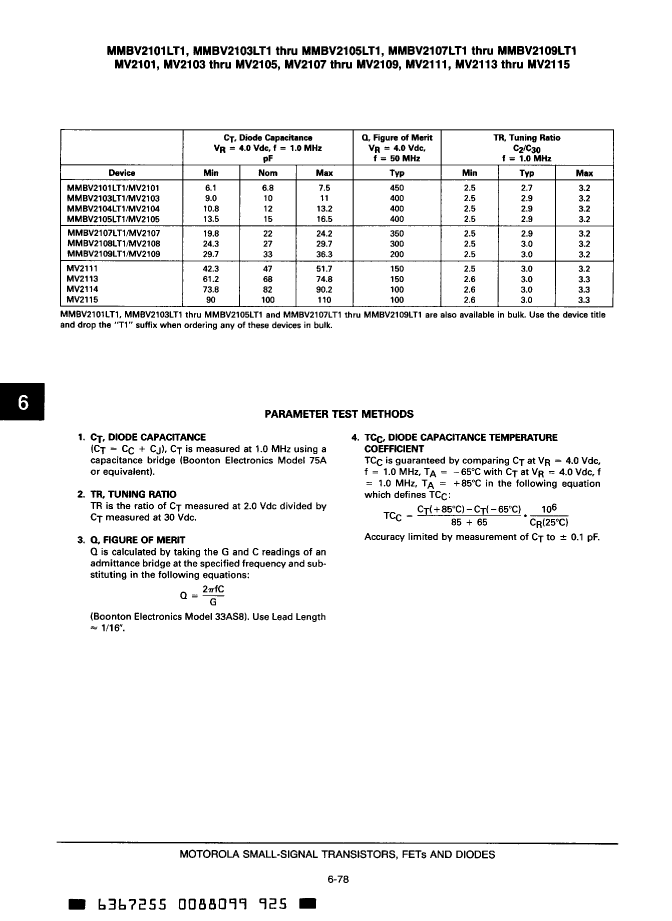

	MMBV2104LT1	MV2103
Description	Variable Capacitance Diode, Ultra High Frequency, 12pF C(T), 30V, Silicon, Abrupt, CASE 318-07, 3 PIN	Variable Capacitance Diode, 10pF C(T), 30V, Silicon
Is it Rohs certified?	incompatible	incompatible
package instruction	R-PDSO-G3	O-PBCY-W2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Minimum breakdown voltage	30 V	30 V
Configuration	SINGLE	SINGLE
Minimum diode capacitance ratio	2.5	2.5
Nominal diode capacitance	12 pF	10 pF
Diode component materials	SILICON	SILICON
Diode type	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G3	O-PBCY-W2
JESD-609 code	e0	e0
Number of components	1	1
Number of terminals	3	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	ROUND
Package form	SMALL OUTLINE	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
minimum quality factor	400	400
Maximum repetitive peak reverse voltage	30 V	30 V
surface mount	YES	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	WIRE
Terminal location	DUAL	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
