94946-0021 datasheet, PDF - EEWORLD Datasheet

94946-0021: DescriptionCard Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,; CategoryThe connector The connector; File Size190KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

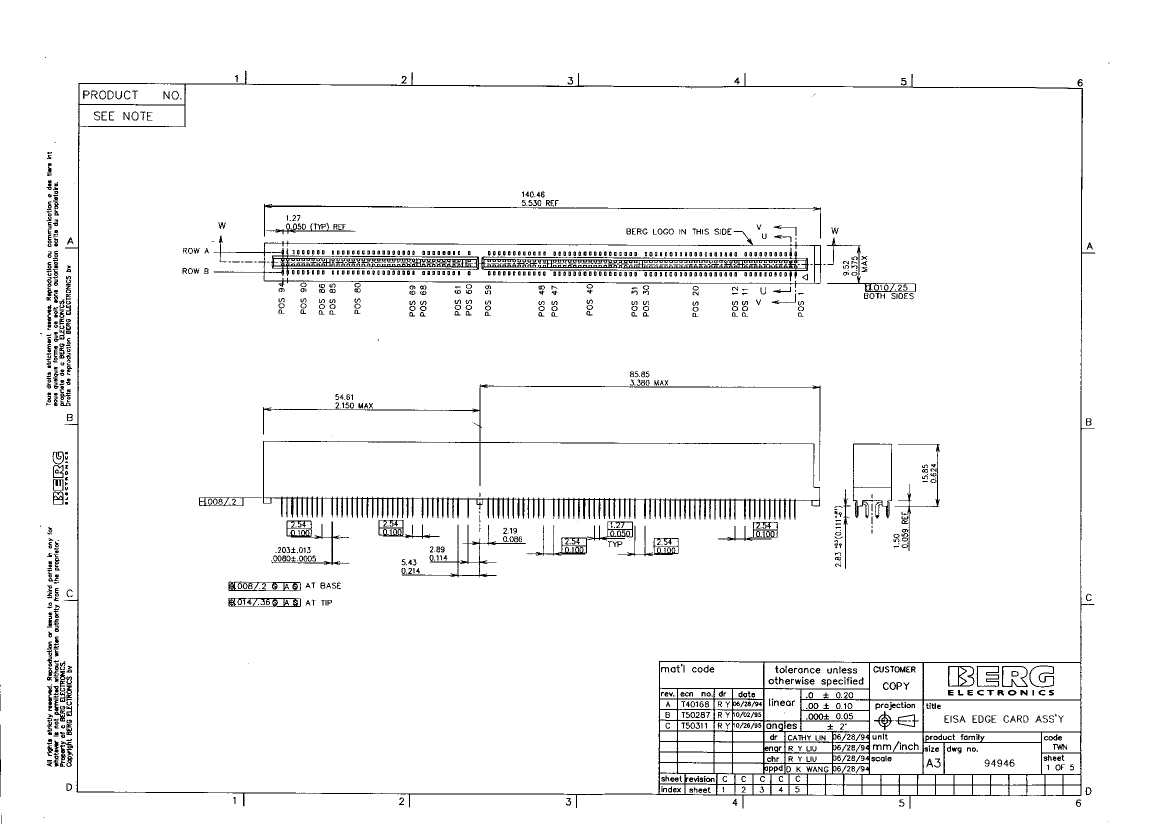

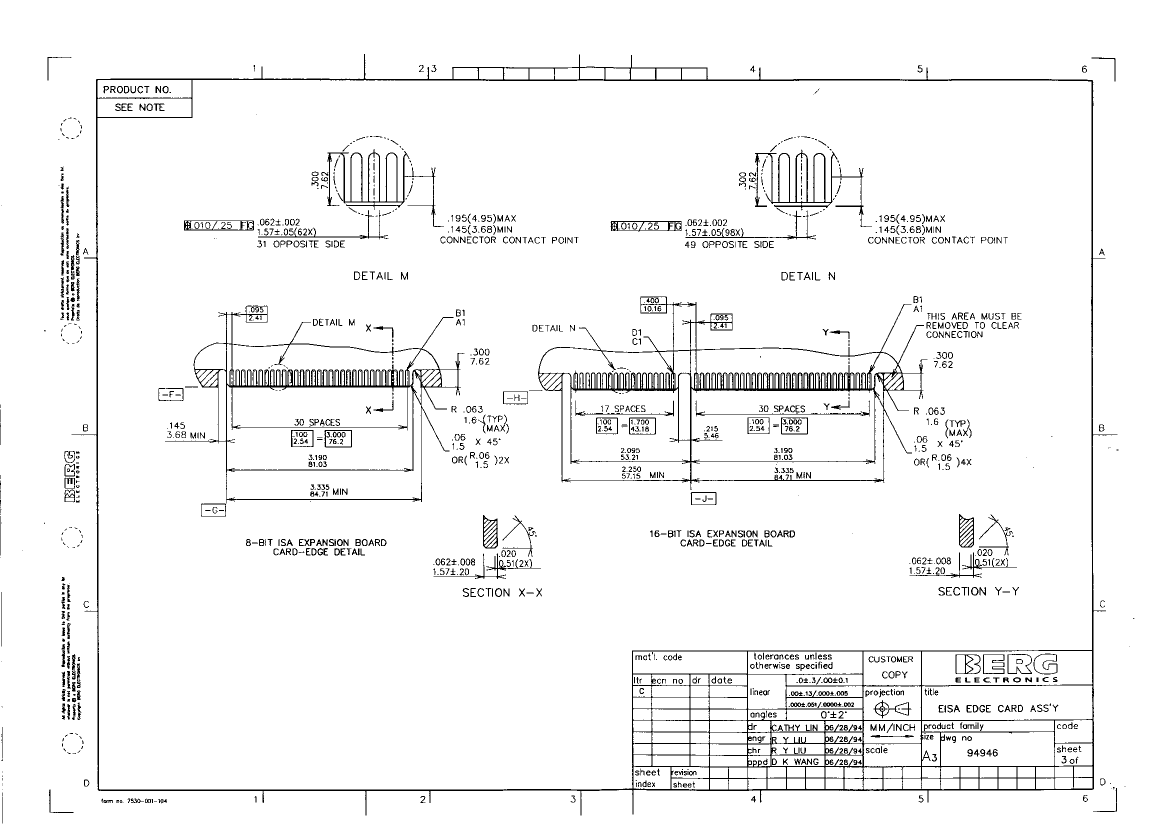

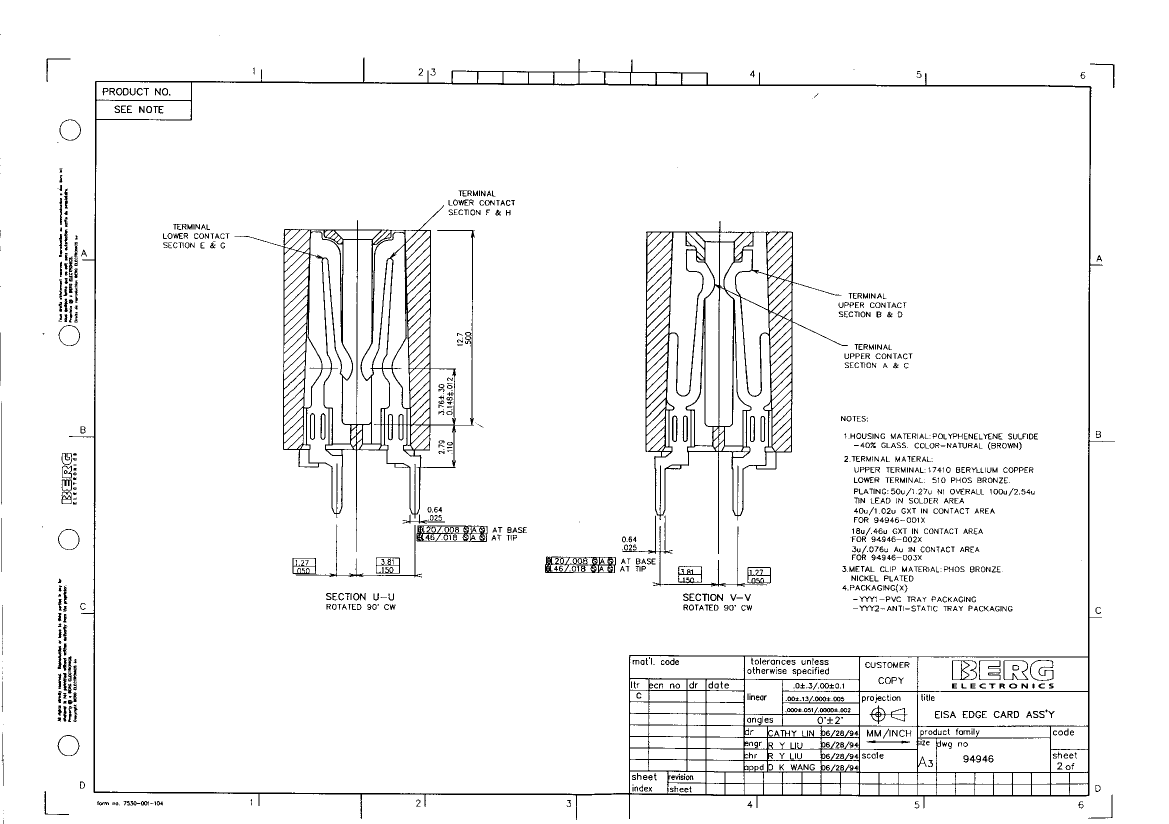

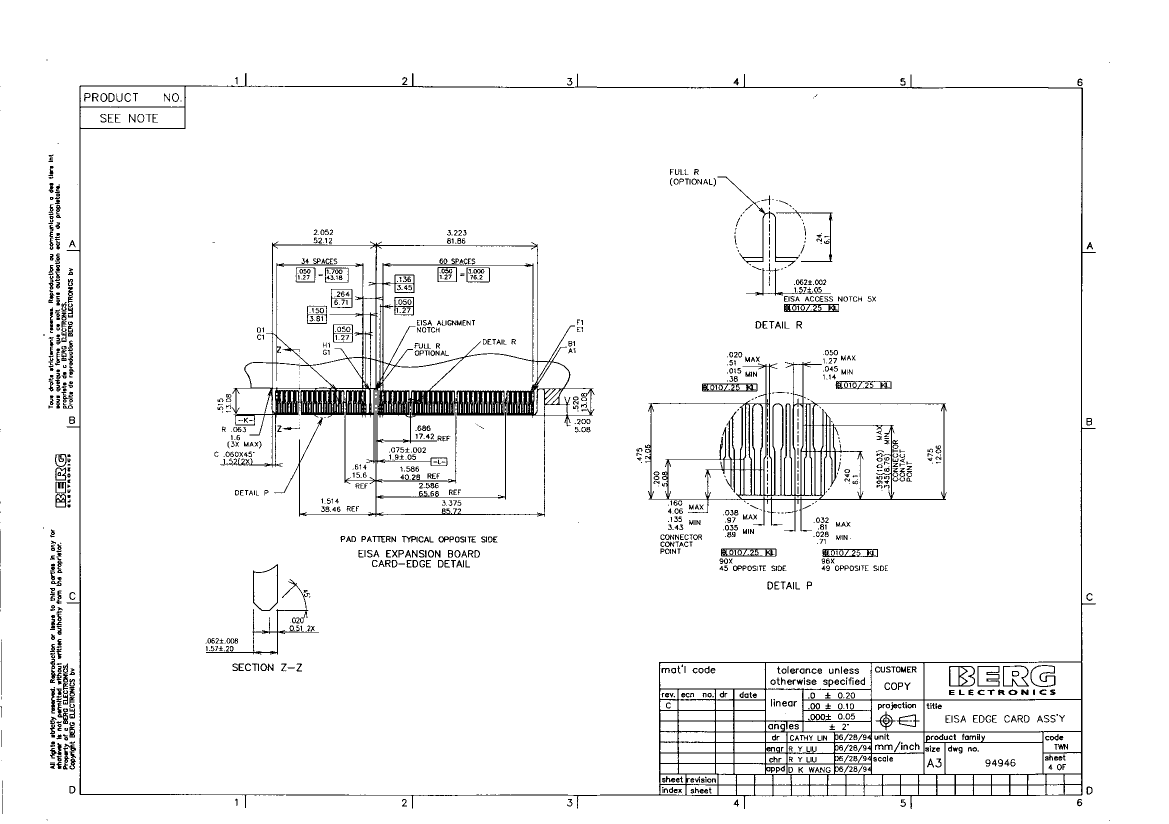

94946-0021 Overview

Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	94946
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	188
Base Number Matches	1

	94946-0021	94946-0011	94946-0012	94946-0022	94946-0031	94946-0032
Description	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	94946	94946	94946	94946	94946	94946
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	188	188	188	188	188	188
Base Number Matches	1	1	1	1	1	1
