ATH06T05-9S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ATH06T05-9S

ATH06T05-9S: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 33W, Hybrid; CategoryPower/power management The power supply circuit; File Size1MB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

ATH06T05-9S Overview

DC-DC Regulated Power Supply Module, 1 Output, 33W, Hybrid

ATH06T05-9S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-XDMA-X6
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.6 V
Minimum output voltage	0.8 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	33 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

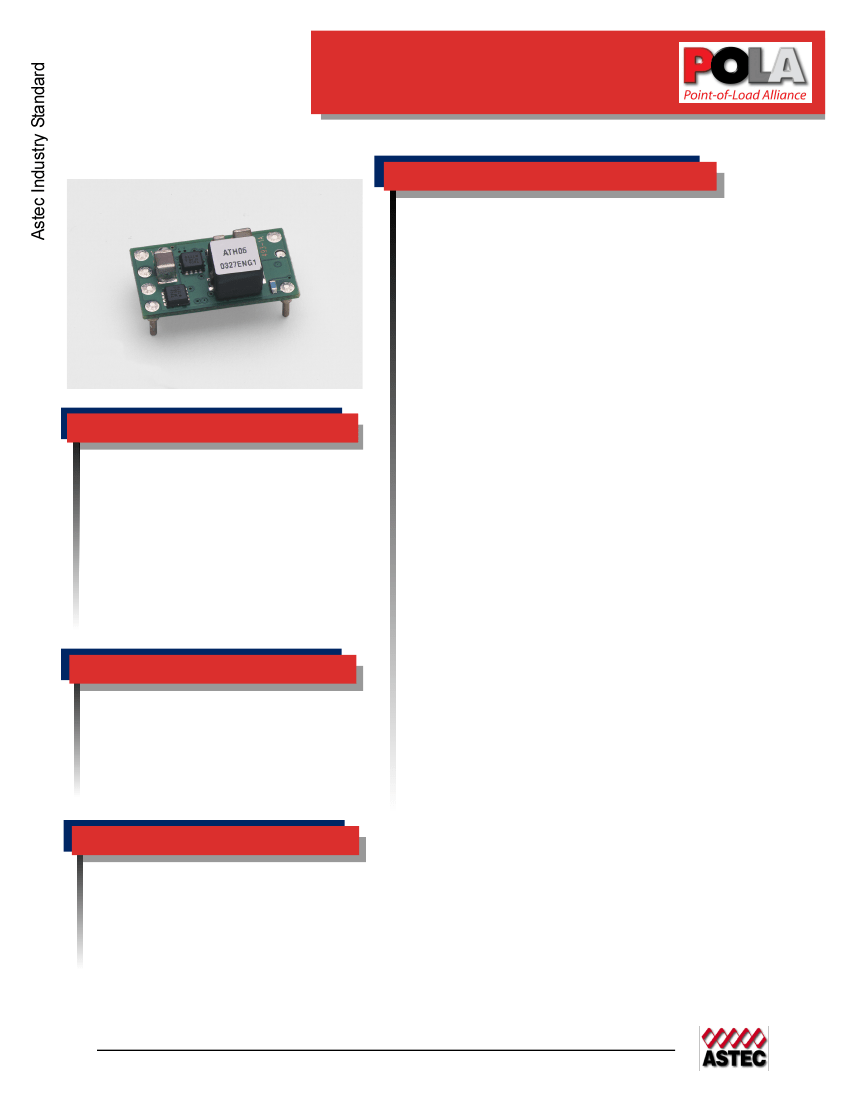

6Amps

ATH06

PRELIMINARY

Total Power:

Input Voltages:

No. of Outputs:

33W

3.3V, 5V, 12V

Single

Electrical Specs

Input

3.0 - 3.6V

4.5 - 5.5V

10.8 - 13.2V

Under Voltage Lockout with hysterisis

Efficiency

up to 95%

Input Range

Output

Overall Regulation

Noise/Ripple

Remote sense

Transient Response

1% of Vo Typ

30mV Typ (2.5Vo and below)

1% Vo Typ (Vo > 2.5V)

Up to 300mV max

100mV typical for 3.3Vo

for 50% to 100% I

O,MAX

step change

70us recovery time (Co = 330uF)

160% I

O,MAX

typical (autorecovery)

Special Features

•

Point-of-Load Alliance product

Open frame TH or SMT termination

Auto-Track™ Sequencing

Output Voltage Adjust (Resistor Programming)

Under Voltage Lockout

Pre-Biased start-up

Output On/Off Inhibit

-40°C to +85°C Ambient Air Operation

Non Isolated module

Over Current Protection

Control

Inhibit On/Off

Output Voltage Adjust

Output Margin

Output Auto-Track™

Positive Enable Logic

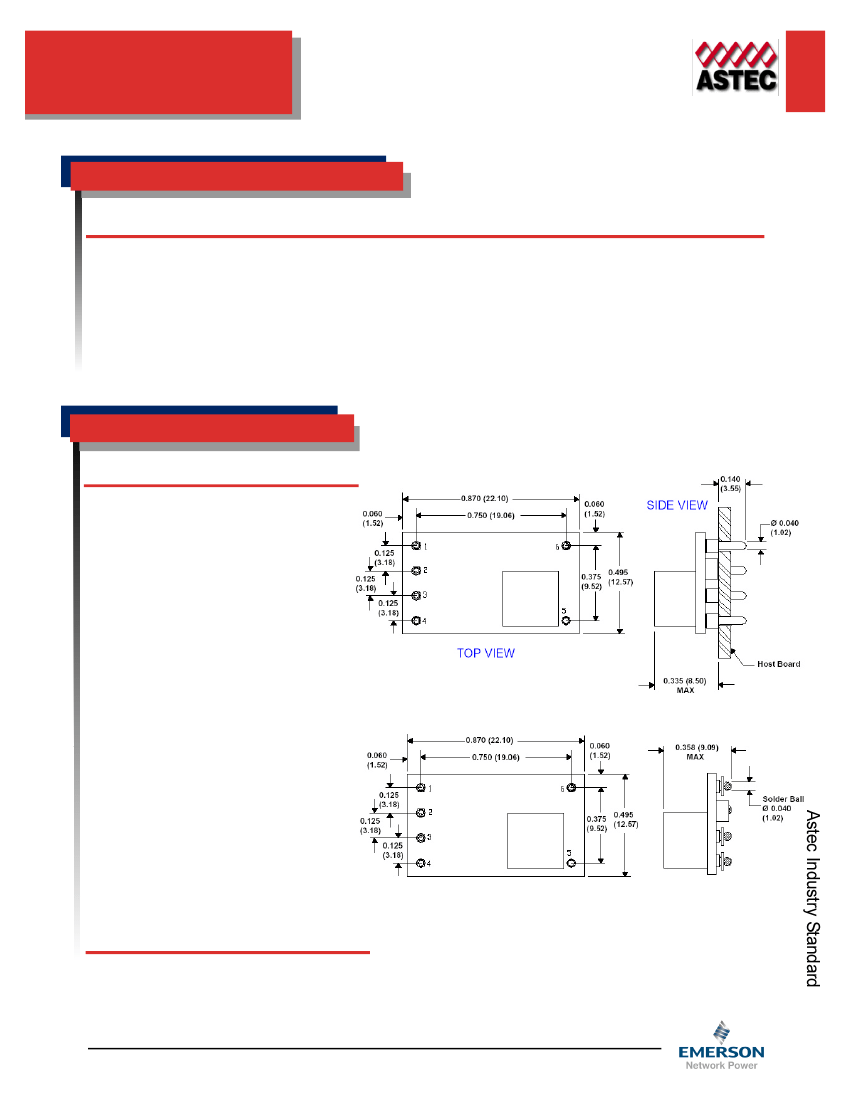

See output range on page 2

±5% V

O,NOM

(See Note 5)

Environmental

Ambient air operating temperature range:

-40°C to +85°C

Storage temperature: -40°C to +125°C

Calculated MTBF: > TBA

Specifications subject to change without notice

Safety

UL,cUL 60950 Recognition (Pending)

EN 60950 through TUV or VDE (Pending)

North America (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211Asia (HK): 852-2437-9662
