DG408DY-T1 datasheet, PDF - EEWORLD Datasheet

DG408DY-T1: DescriptionSingle-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16,; CategoryAnalog mixed-signal IC The signal circuit; File Size309KB，12 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

DG408DY-T1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG408DY-T1	-	-	View	Buy Now

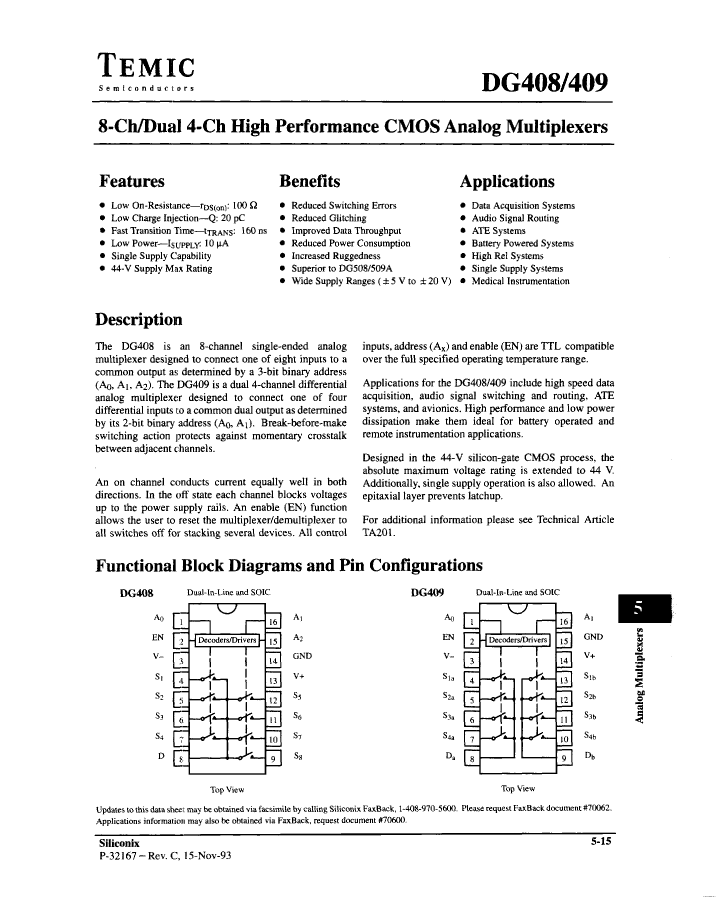

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16,

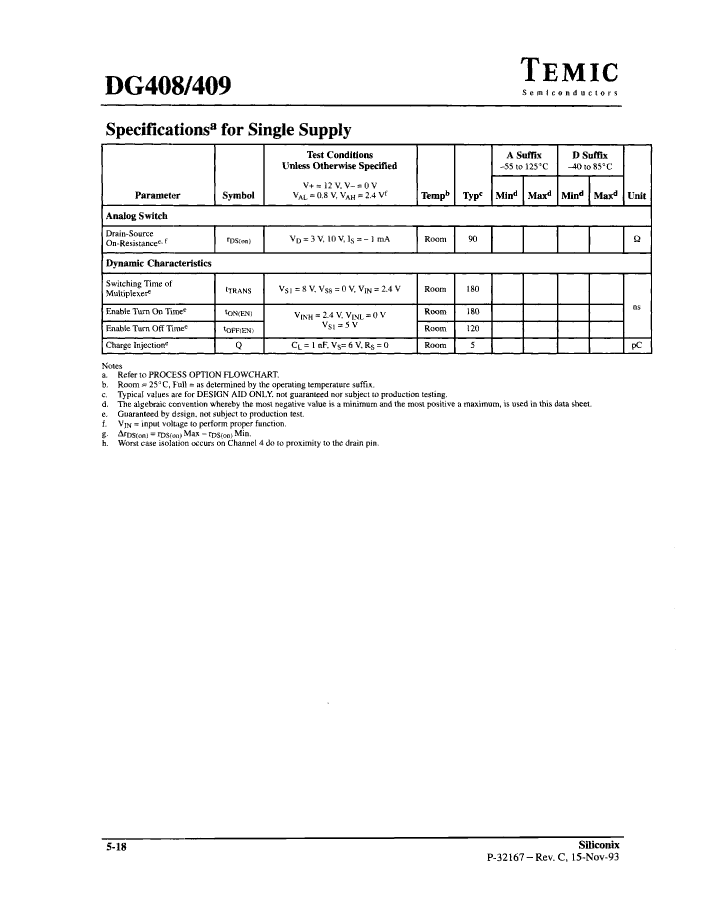

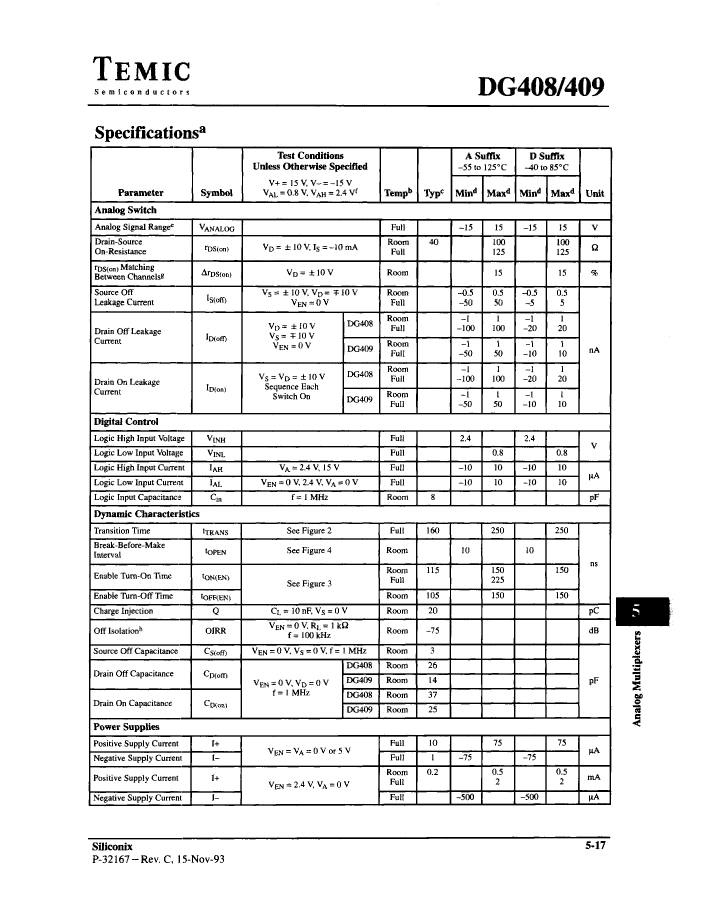

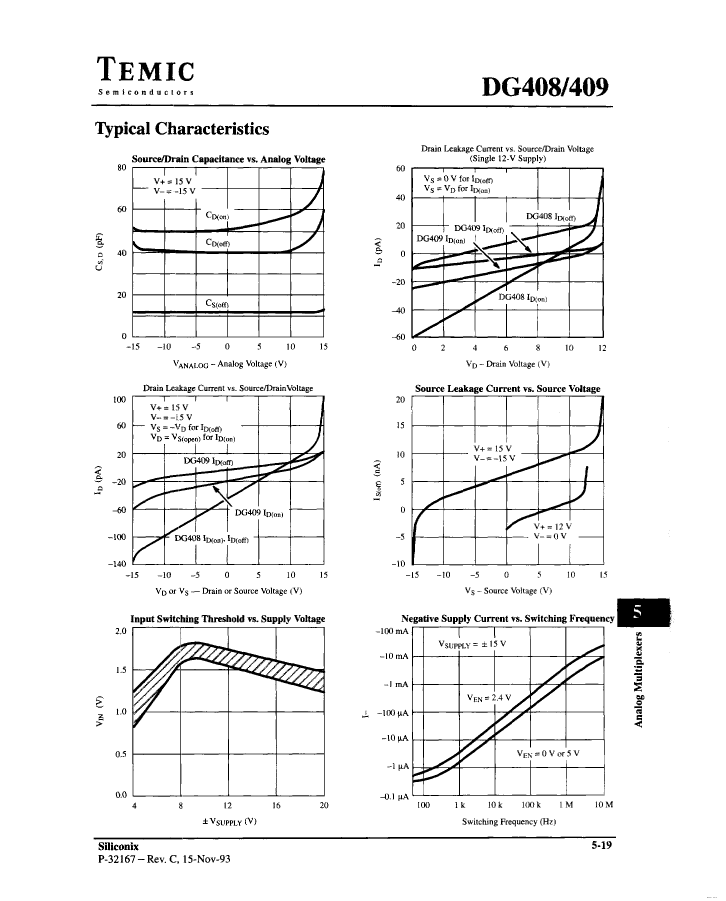

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	75 dB
Maximum on-state resistance (Ron)	100 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply current (Isup)	2 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	250 ns
Maximum connection time	250 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

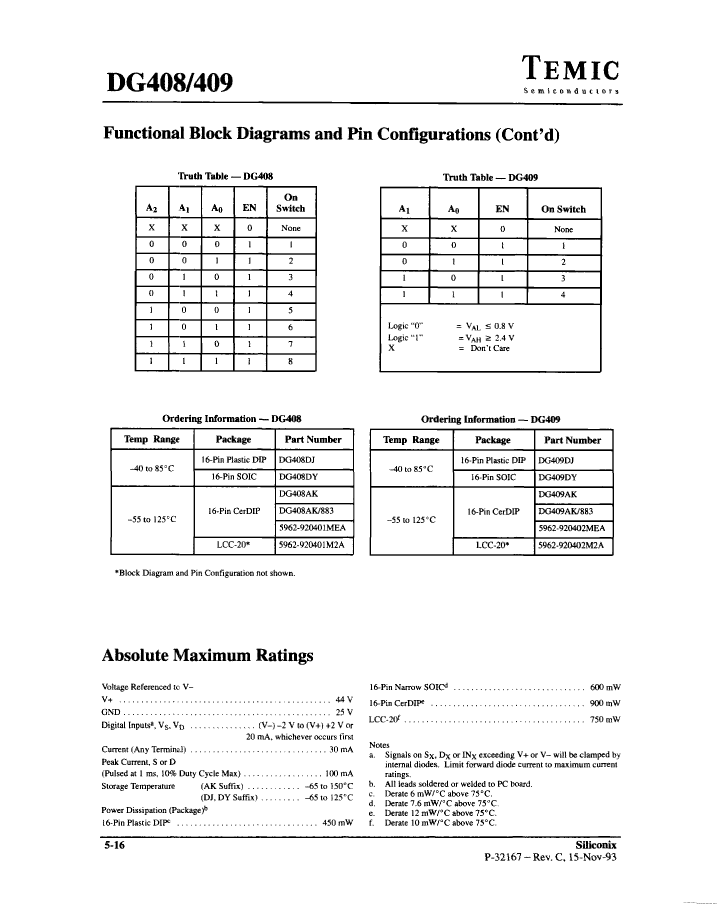

	DG408DY-T1	DG409DY-T1
Description	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16,	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16,
Reach Compliance Code	unknown	unknow
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of channels	8	4
Number of functions	1	1
Number of terminals	16	16
Nominal off-state isolation	75 dB	75 dB
Maximum on-state resistance (Ron)	100 Ω	100 Ω
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	2 mA	2 mA
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	YES
Maximum disconnect time	250 ns	250 ns
Maximum connection time	250 ns	250 ns
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
