AEE04G48: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid; CategoryPower/power management The power supply circuit; File Size505KB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

AEE04G48 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AEE04G48	-	-	View	Buy Now

AEE04G48 Overview

DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid

AEE04G48 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P6
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	6
Maximum output voltage	2.55 V
Minimum output voltage	2.45 V
Nominal output voltage	2.5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	15 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

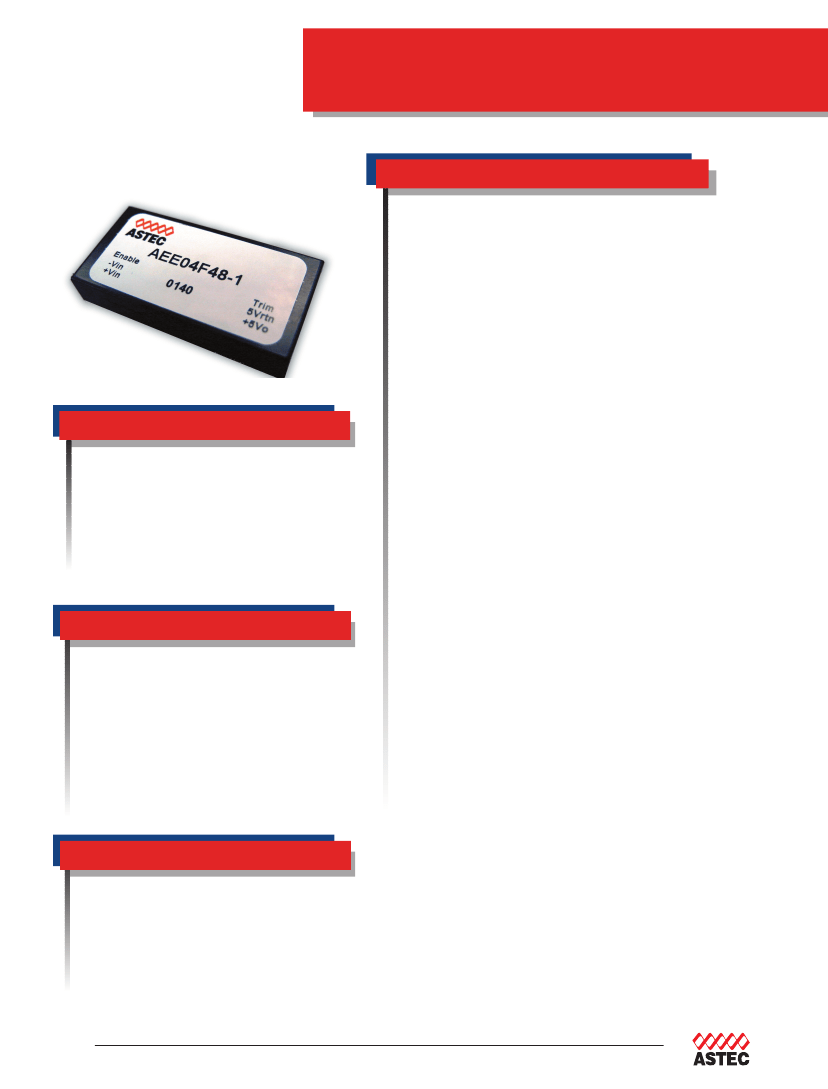

15 Watts

AEE04

AEE01-Dual

Total Power:

Input Voltages:

No. of Outputs:

15 Watts

48V, 24V

Single, Dual

Electrical Specs

Input

Input range

18 to 36 VDC

36 to 72 VDC

86% typical (3.3V)

Efficiency

Output

Voltage tolerance

2.45 - 2.55V (2.5V)

3.24 - 3.36V (3.3V)

4.95 - 5.05V (5.0V)

11.88 - 12.12V (12.0V)

Dual +12 (1%), -12V(5%)

±1% max

Dual

+12V(±1% max)

-12V(±10% max)

Special Features

•

15 W, Single output

High Efficiency

2:1 Input range

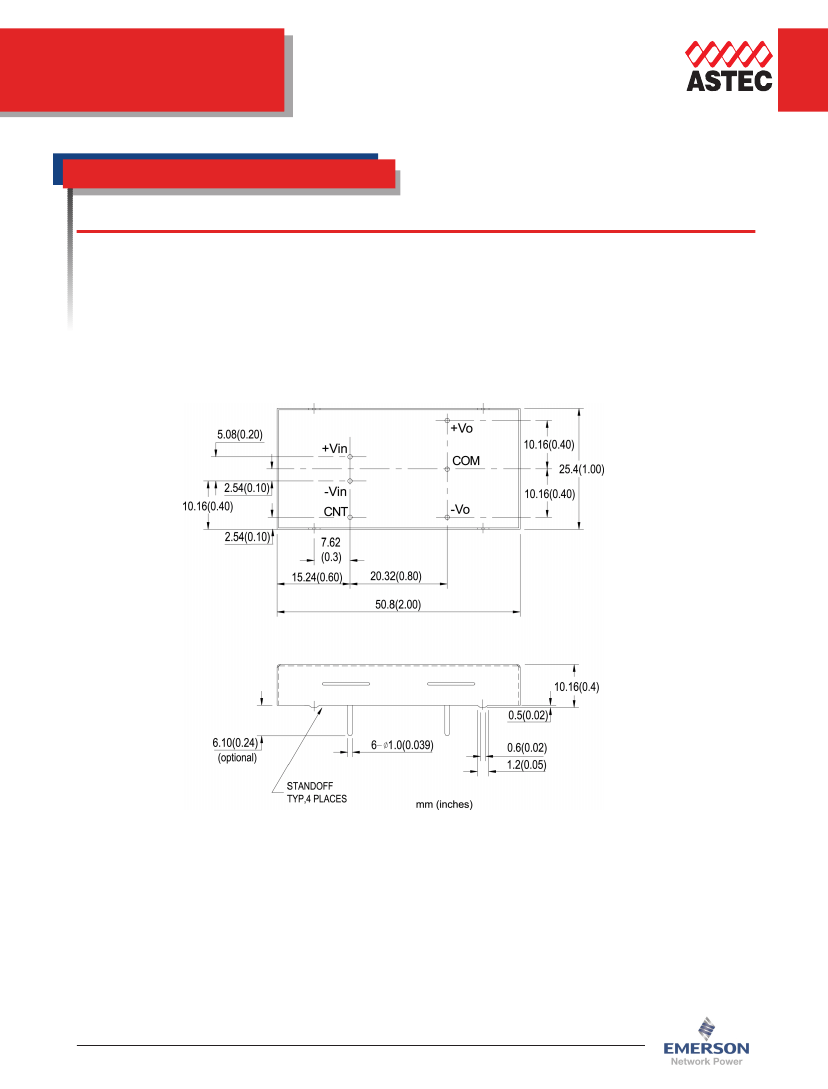

1.0" x 2.0" x 0.4 case

Industry standard package

Low Profile

Low Cost

Overall regulation

Noise/ripple

Transient response

2.5% (mV P-P) Max

2%Vo, 100 usec typical (25% step

load change)

±0.04 %Vo/°C

290kHz

Temperature Regulation

Switching frequency

Environmental

Operating base temperature range:

-40°C to +105°C

Storage temperature: -55°C to +125°C

MTBF: 1.5 Million Hours (Belcore TR332)

Isolation

I/O isolation

Input to Case

Output to Case

1500 VDC

Safety

CSA

TUV

UL1950 Recognition

CSA22.2-950 Recognition

EN60950 Certified

CE Mark

America’s (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662
