PCD3755EP datasheet, PDF - EEWORLD Datasheet

PCD3755EP: DescriptionMicrocontroller, 8-Bit, UVPROM, 8048 CPU, 16MHz, CMOS, PDIP28,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，28 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

PCD3755EP Overview

Microcontroller, 8-Bit, UVPROM, 8048 CPU, 16MHz, CMOS, PDIP28,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
bit size	8
CPU series	8048
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	1.8/6 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	8192
ROM programmability	UVPROM
speed	16 MHz
Maximum slew rate	4 mA
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

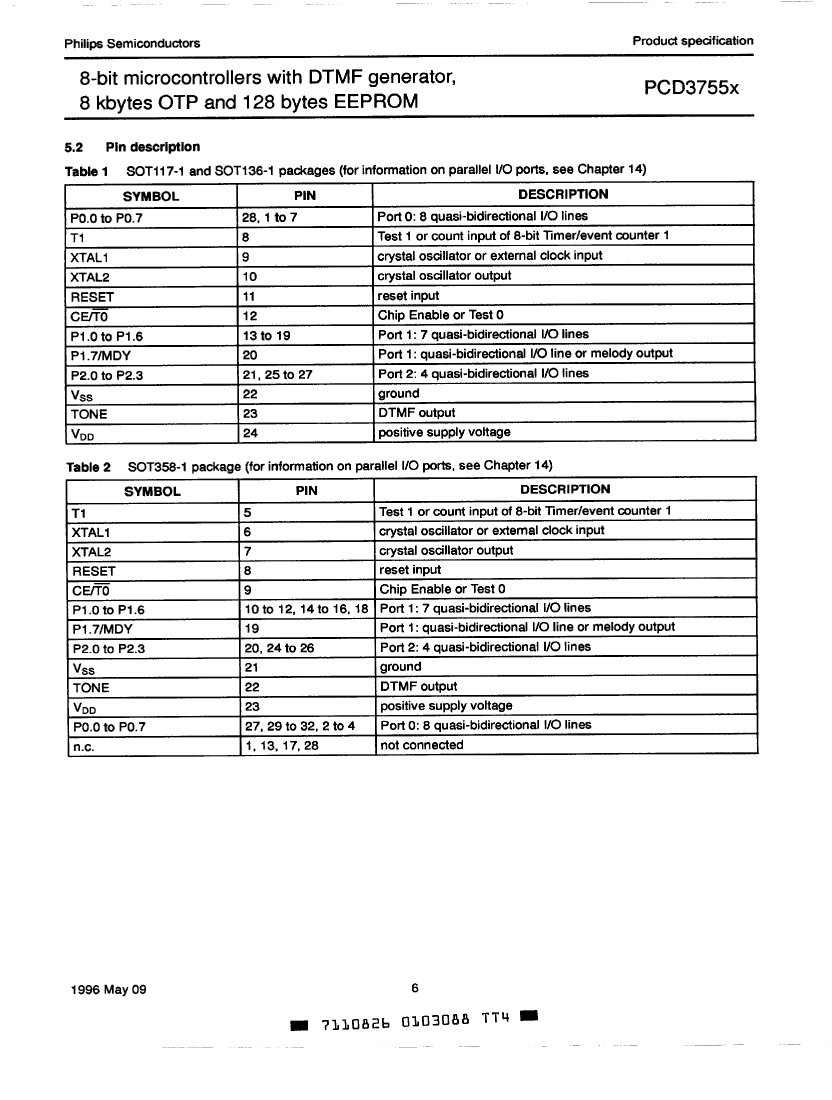

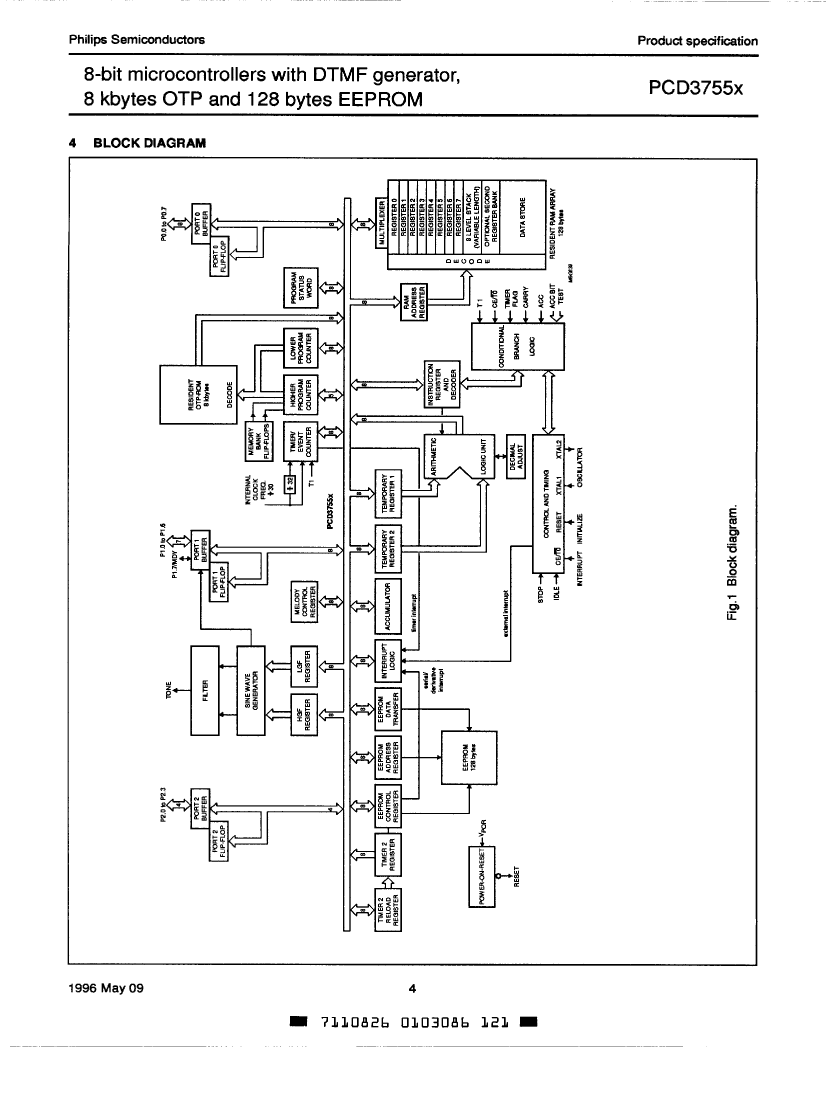

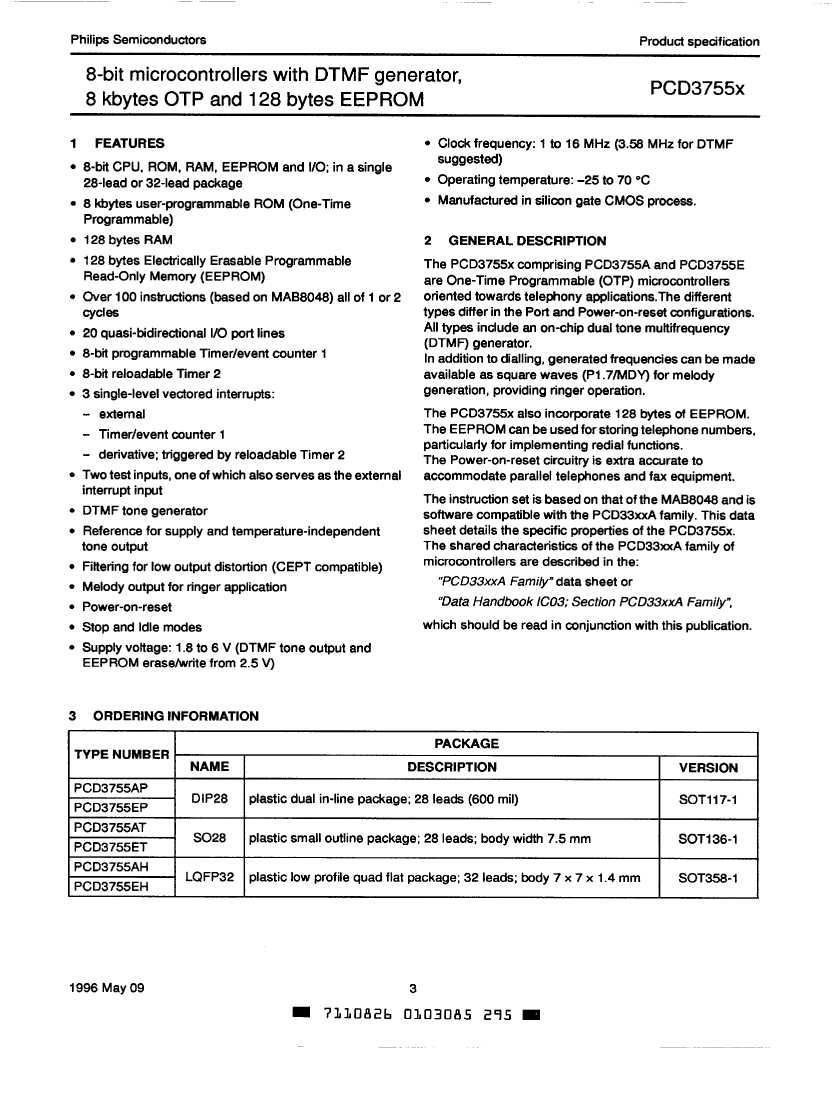

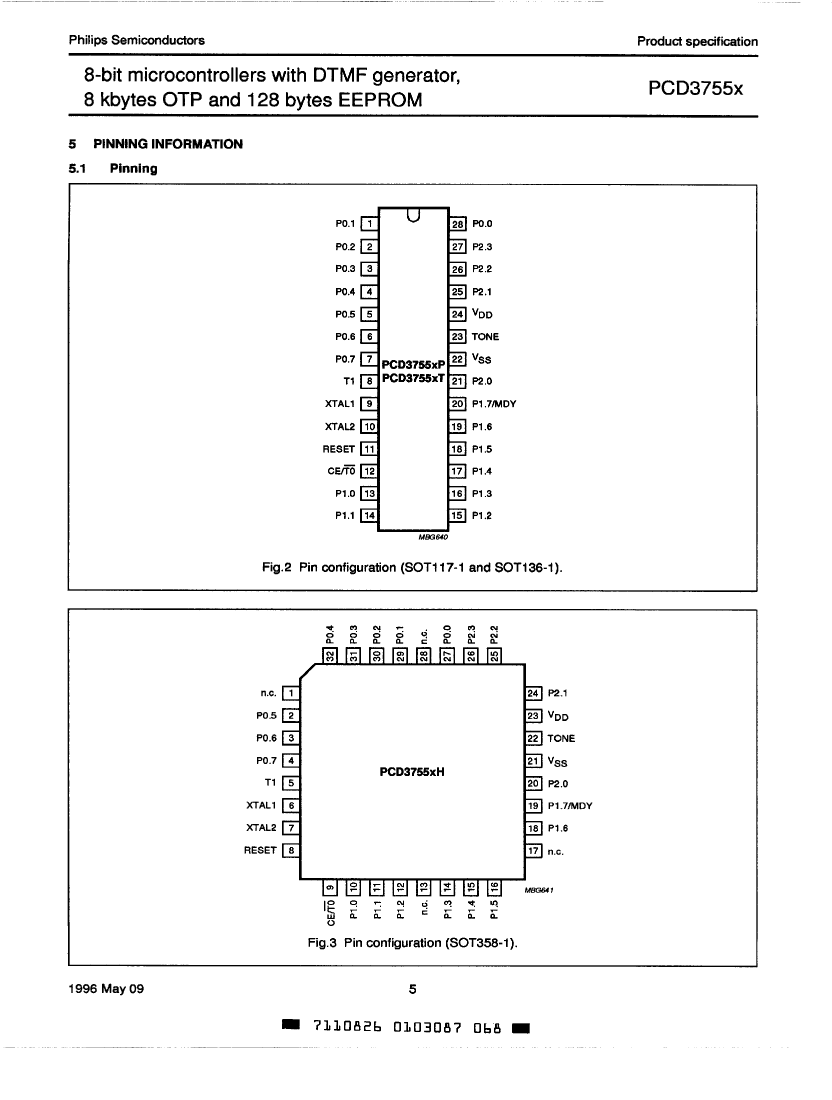

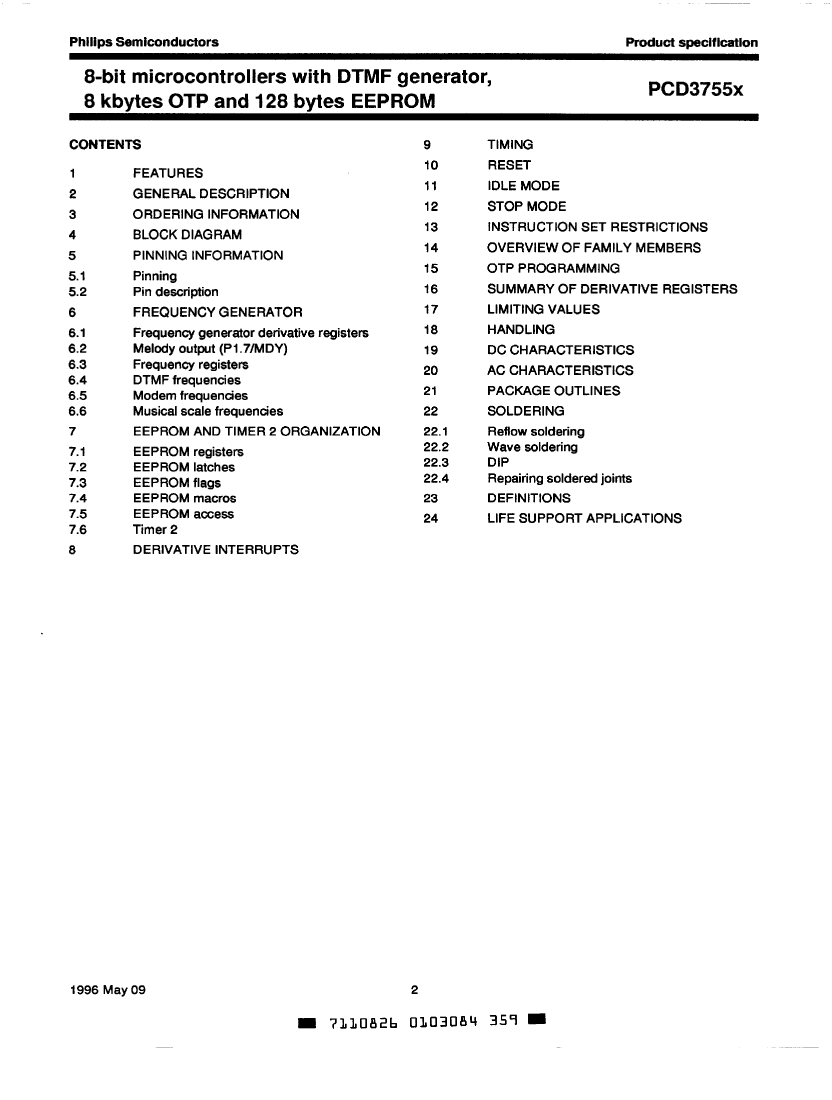

This Material Copyrighted By Its Respective Manufacturer

	PCD3755EP	PCD3755ET	PCD3755EH
Description	Microcontroller, 8-Bit, UVPROM, 8048 CPU, 16MHz, CMOS, PDIP28,	Microcontroller, 8-Bit, UVPROM, 8048 CPU, 16MHz, CMOS, PDSO28,	Microcontroller, 8-Bit, UVPROM, 8048 CPU, 16MHz, CMOS, PQFP32,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP28,.6	SOP, SOP28,.4	QFP, QFP32,.35SQ,32
Reach Compliance Code	unknown	unknown	unknown
bit size	8	8	8
CPU series	8048	8048	8048
JESD-30 code	R-PDIP-T28	R-PDSO-G28	S-PQFP-G32
JESD-609 code	e0	e0	e0
Number of terminals	28	28	32
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	QFP
Encapsulate equivalent code	DIP28,.6	SOP28,.4	QFP32,.35SQ,32
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	SMALL OUTLINE	FLATPACK
power supply	1.8/6 V	1.8/6 V	1.8/6 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	128	128	128
rom(word)	8192	8192	8192
ROM programmability	UVPROM	UVPROM	UVPROM
speed	16 MHz	16 MHz	16 MHz
Maximum slew rate	4 mA	4 mA	4 mA
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	0.8 mm
Terminal location	DUAL	DUAL	QUAD
Base Number Matches	1	1	1
