PCX-050-F-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PCX-050-F-15

PCX-050-F-15: DescriptionRF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm; CategoryWireless rf/communication Radio frequency and microwave; File Size239KB，2 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

PCX-050-F-15 Overview

RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm

PCX-050-F-15 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	41.76 dBm
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	100 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

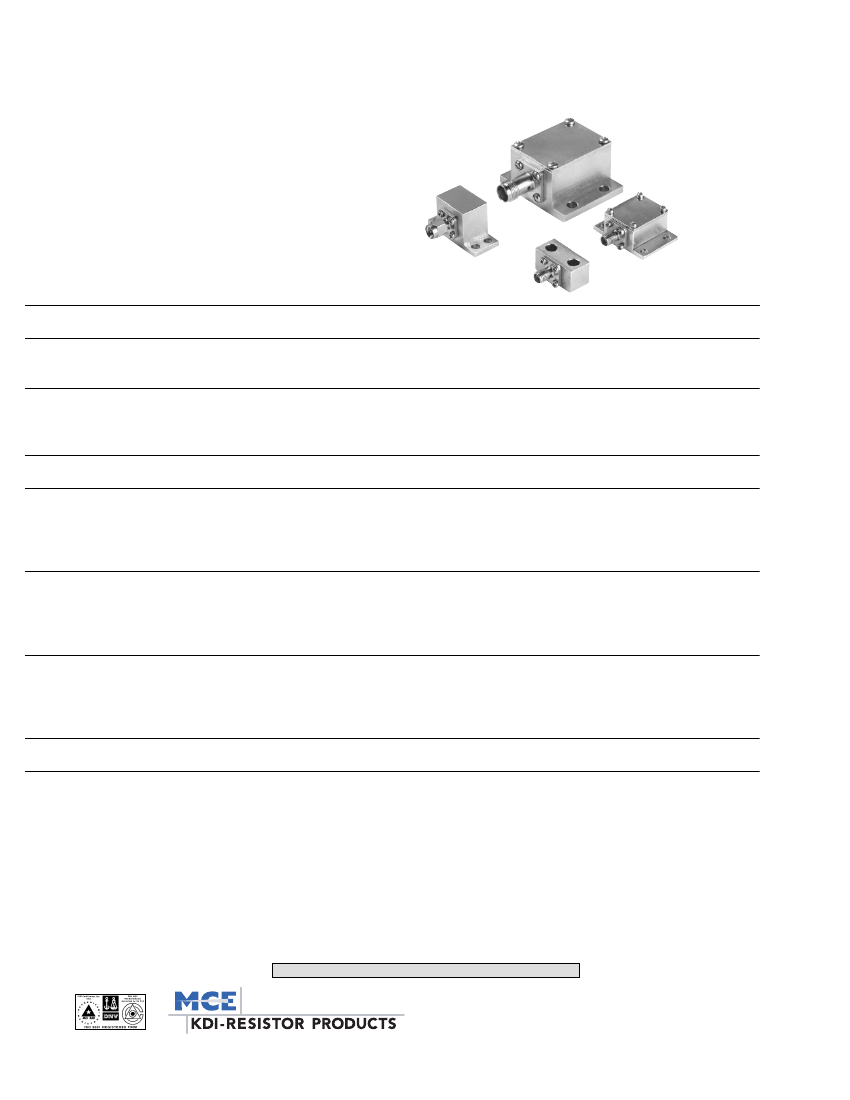

HIGH POWER COAXIAL TYPE N, SMA, TNC

TERMINATIONS

DC-18 GHz CONDUCTION (HEAT SINK) COOLED

GENERAL INFORMATION

The PCX Series High Power Terminations are designed to dissipate RF

power when mounted to a heat sink or chill plate. Power levels from 15

to 500 watts in 50 ohm impedance are available in units with type SMA,

TNC or Type N, male or female connectors. Improved VSWR models

over narrow bandwidths are available from D.C. to 18 GHz. High stabil-

ity thin film resistive elements on beryllium oxide substrates are used to

insure stable VSWR performance over temperature and environmental

conditions.

SERIES PCX

PERFORMANCE SPECIFICATIONS

Part Number

PCX-050-F-15

PCX-050-M-15

PCX-050-F-30

PCX-050-M-30

PCX-075-F-30

PCX-075-M-30

PCX-050-F-50

PCX-050-M-50

PCX-050-F-100

PCX-050-M-100

PCX-075-F-100

PCX-050-F-100-(XX)

PCX-050-F-150

PCX-050-M-150

PCX-100-F-150

PCX-100-M-150

PCX-050-F-250

PCX-050-M-250

PCX-100-F-250

PCX-100-M-250

PCX-100-F-500

PCX-100-M-500

500

DC-200 MHz

100

Input Power(Watts)

(Note 1)

Frequency Range

(Note 2)

DC-12.4 GHz

Connector Type

SMA FEMALE

SMA Male

VSWR

(Maximum)

DC-4 GHz—1.15:1

4.8 GHz—1.20:1

8–12.4 GHz—1.30:1

DC-4 GHz—1.25:1

4–8 GHz—1.35:1

8–18 GHz—1.40:1

DC-3 GHz—1.25:1

3-6 GHz—1.35:1

DC-3 GHz—1.25:1

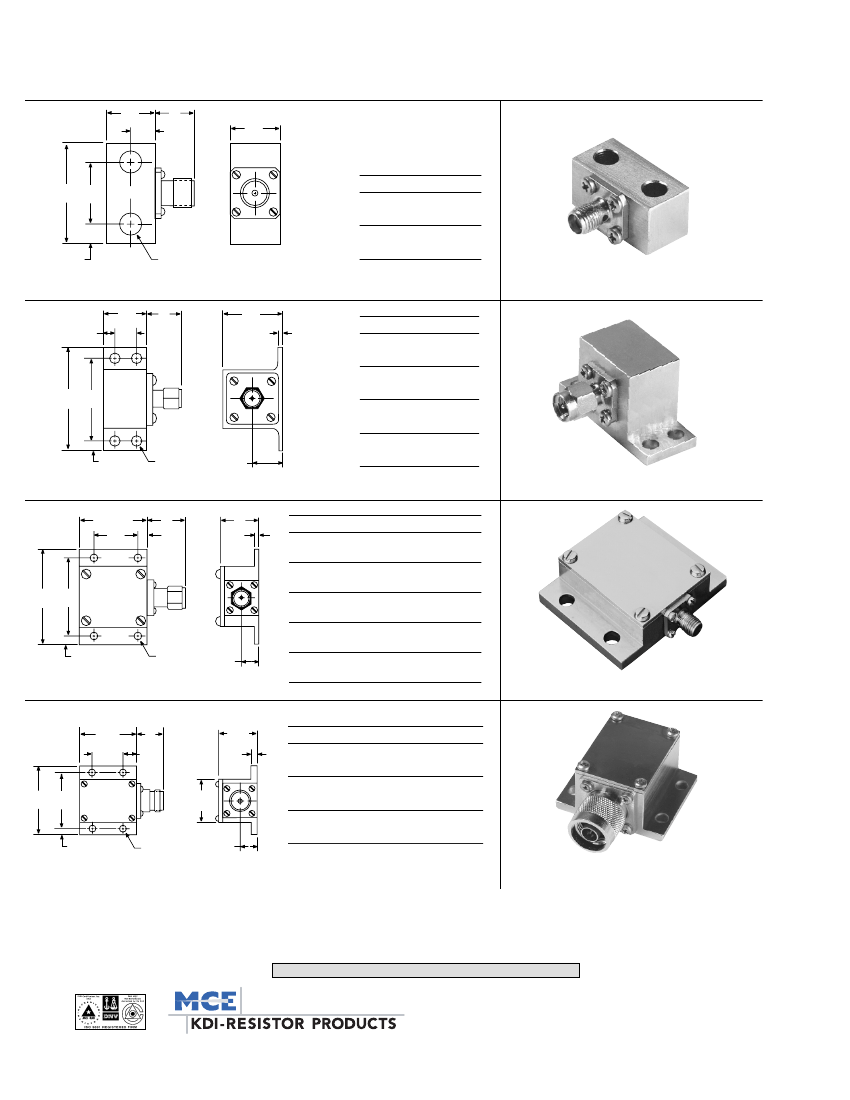

Outline

DC-18 GHz

DC-8 GHz

SMA FEMALE

SMA MALE

TNC FEMALE

TNC MALE

SMA FEMALE

SMA MALE

SMA FEMALE

SMA MALE

TNC FEMALE

SMA FEMALE

SMA MALE

N FEMALE

N MALE

SMA FEMALE

SMA ONLY

DC-6 GHz

100

DC-3 GHz

DC-18 GHz(3)

1.4—8%B.W.

1.15—1%B.W.

DC-1 GHz—1.15:1

1-2 GHz—1:40.1

150

DC-2 GHz

250

DC-800 MHz

SMA MALE

N FEMALE

N MALE

N FEMALE

N MALE

DC-200 MHz—1.15:1

200–400 MHz—1.25:1

400–800 MHz—1.30:1

DC-200 MHz—1.30:1

Notes:

1. Operating Temperature: 15 watt models 100°C maximum case temperature. All other models 85°C maximum case temperature.

2. Narrowband (8%) performance up to 18 GHz available in special units.

3. Specify center frequency in GHz.

KEY:

Inches[Millimeters] .XX ±.03 .XXX ±.010 [.X ±0.8 .XX ±0.25]

60 South Jefferson Road, Whippany, NJ 07981

Tel: 973-887-8100

Fax: 973-884-0445

E-Mail: sales@mcekdi-resistor.com

See us on the web @ www.mcekdi-resistor.com

8/02
