GD74HCT126J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> GD74HCT126J

GD74HCT126J: DescriptionBus Driver, 1-Func, 4-Bit, True Output, CMOS, CDIP14,; Categorylogic logic; File Size201KB，4 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

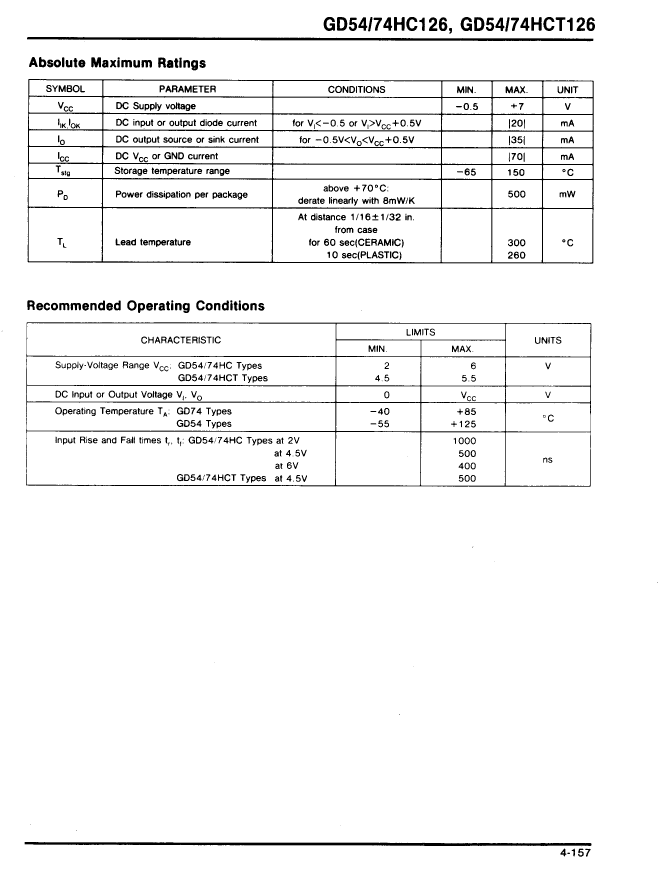

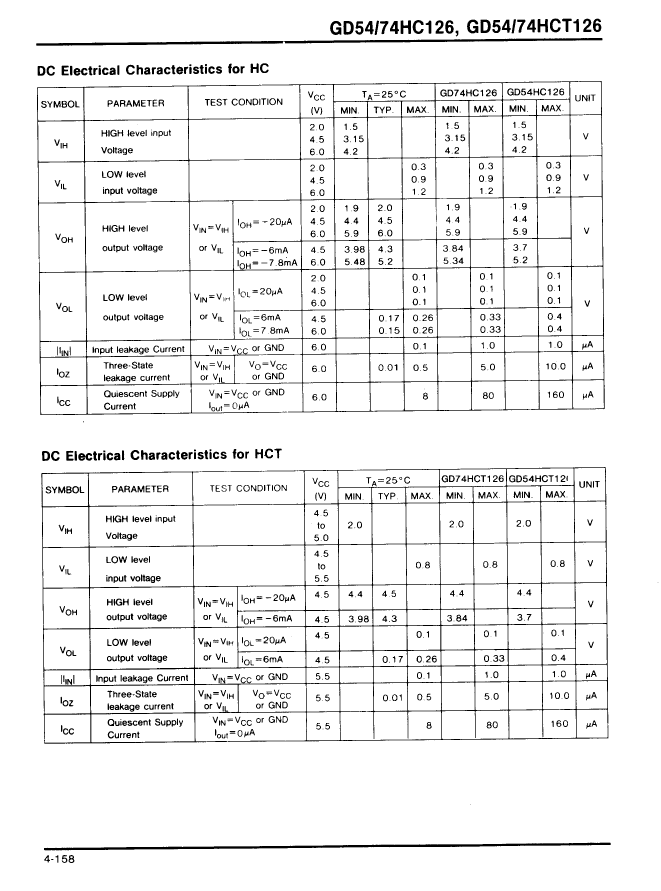

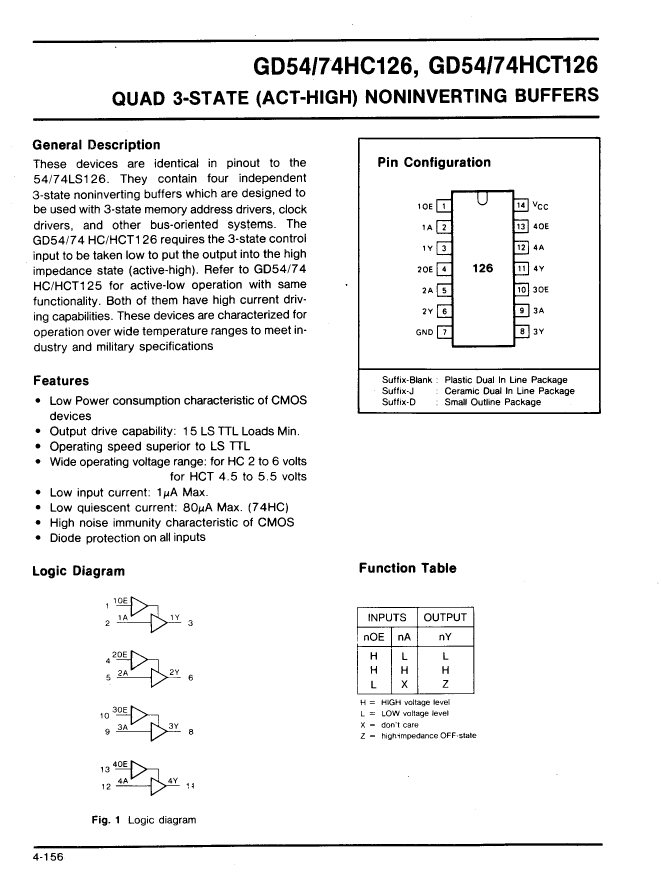

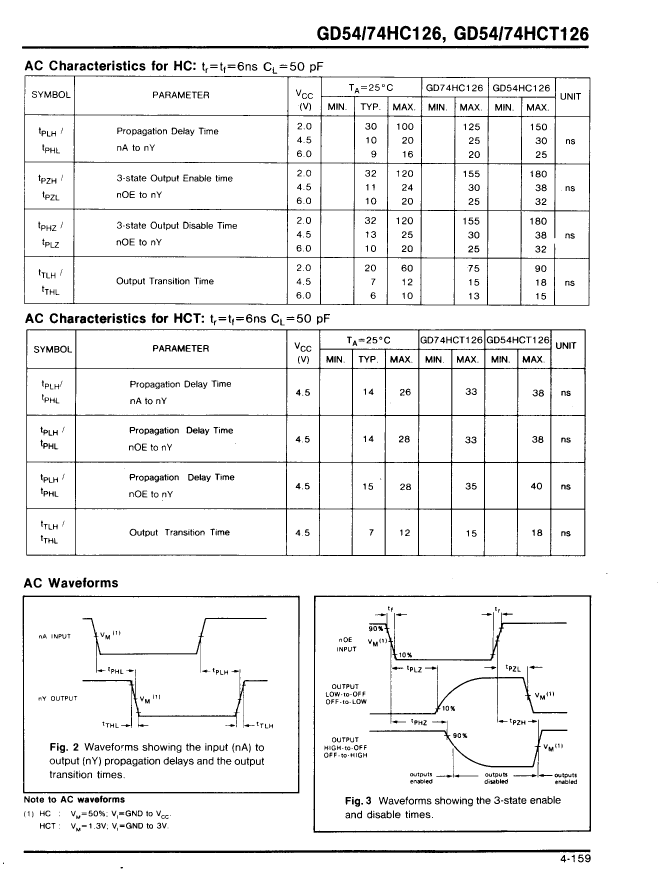

GD74HCT126J Overview

Bus Driver, 1-Func, 4-Bit, True Output, CMOS, CDIP14,

GD74HCT126J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Control type	ENABLE HIGH
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.006 A
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	35 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

GD74HCT126J Related Products

	GD74HCT126J	GD74HCT126	GD74HCT126D	GD54HC126J	GD54HCT126J	GD74HC126D	GD74HC126	GD74HC126J
Description	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, CDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, PDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, PDSO14,	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, CDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, CDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, PDSO14,	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, PDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, CDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknown
Control type	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH
JESD-30 code	R-XDIP-T14	R-PDIP-T14	R-PDSO-G14	R-XDIP-T14	R-XDIP-T14	R-PDSO-G14	R-PDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A
Number of digits	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	125 °C	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	SOP	DIP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	SOP14,.25	DIP14,.3	DIP14,.3	SOP14,.25	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	2/6 V	5 V	2/6 V	2/6 V	2/6 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	YES	NO	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	SOP, SOP14,.25	DIP, DIP14,.3	DIP, DIP14,.3	-	DIP, DIP14,.3	DIP, DIP14,.3
Prop。Delay @ Nom-Sup	35 ns	35 ns	35 ns	38 ns	40 ns	30 ns	-	30 ns
Maker	-	-	-	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
