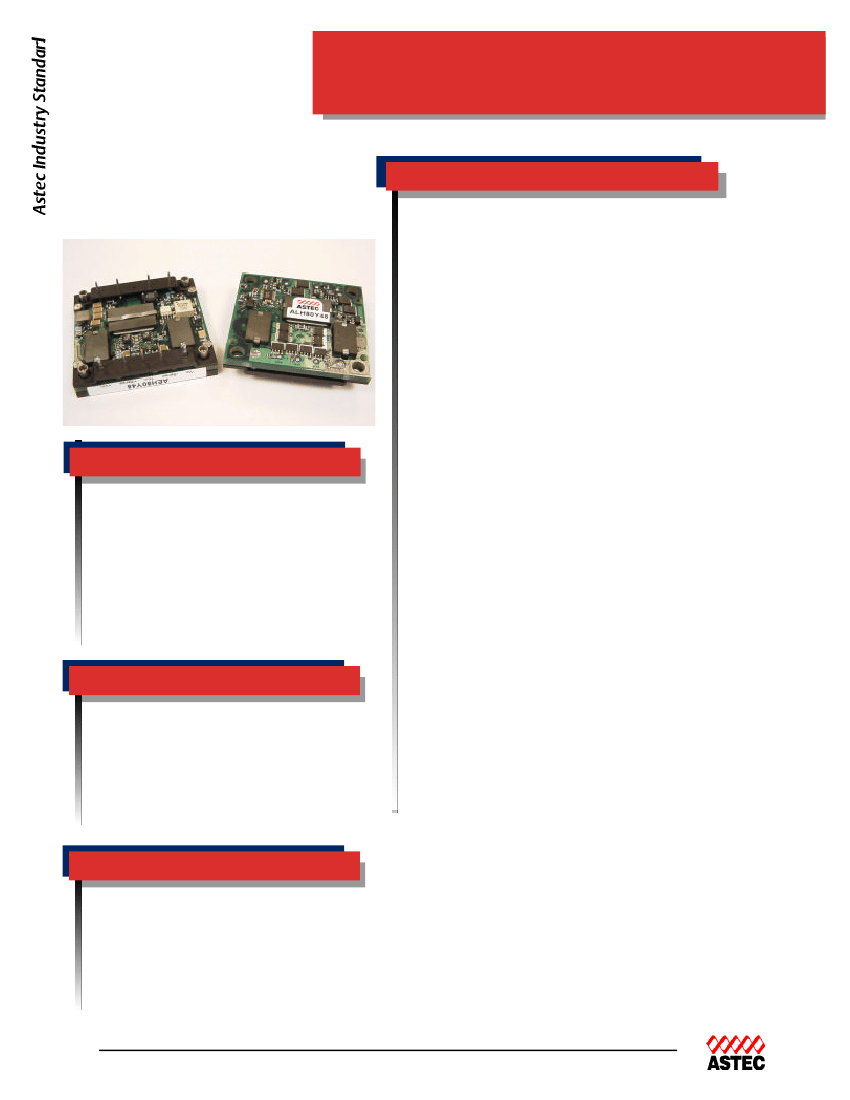

80Amps
Ultra High Efficiency
PRELIMINARY
AEH80
ALH80
(Open Frame)
Total Power:
Input Voltages:
No. of Outputs:
150 Watts (1.8V@80Amps)
48 V
Single
Electrical Specs
Input
Input range
Input Surge
Efficiency
36-75 VDC
100V / 100ms
89%@1.8V (Typical)
Control
Enable
TTL compatible
(positive & negative enable options)
Output
Regulation
(Line, Load, Temp)
Ripple and noise
Remote sense
Output voltage
adjust range
Transient Response
Overvoltage Protection
<2%
60mV p-p typical
Up to 10%Vout
+/-10% of nominal output
4% max deviation with
50% to 75% full load
300 µS (max) recovery
130% nominal output
Special Features
•
•
•
•
•
•
•
•
•
•
•
Ultra High efficiency, 1.8V@89% (Typical)
-40°C to 100°C baseplate operating temp.
-40°C to 85°C Ambient Air for Open Frame
Open Frame (ALH80) and Baseplate (AEH80)
Redundant Inline Output Pins
Positive and Negative enable function
Low output ripple and noise
High capacitive load limit on start-up
Remote sense compensation
Regulation to zero load
Fixed frequency switching (400 kHz)
Environmental
Operating temperature
-40°C to +100°C Baseplate (AEH80)
-40°C to +85°C Ambient Air (ALH80)
Storage temperature: -55°C to +105°C
Overtemperature protection: 115°C typical
MTBF: >1 million hours
Safety
UL, CUL
1950 Recognized
TUV
EN60950 Licensed
4
North America (USA): 1-888-41-ASTEC
Europe (UK): 44 (1384) 842-211
Asia (HK): 852-2437-9662
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
Ordering Information
Input
Output
Voltage Voltage
48V
48V
48V
48V
48V
48V
Note:
1.8V @ 80A
1.5V @ 80A
1.2V @ 80A
1.8V @ 80A
1.5V @ 80A
1.2V @ 80A
Efficiency
89% (Typ)
87% (Typ)
85% (Typ)
89% (Typ)
87% (Typ)
85% (Typ)
Model Number
AEH80Y48
AEH80M48
AEH80K48
ALH80Y48
ALH80M48
ALH80K48
Availability
Samples Available March, 2002
Samples Available March, 2002
Samples Available March, 2002
Samples Available March, 2002
Samples Available March, 2002
Samples Available March, 2002
1. For Negative Enable add suffix “N”
2. To Remove Pins 6 and 10 for standard 1/2 brick add suffix “-2”

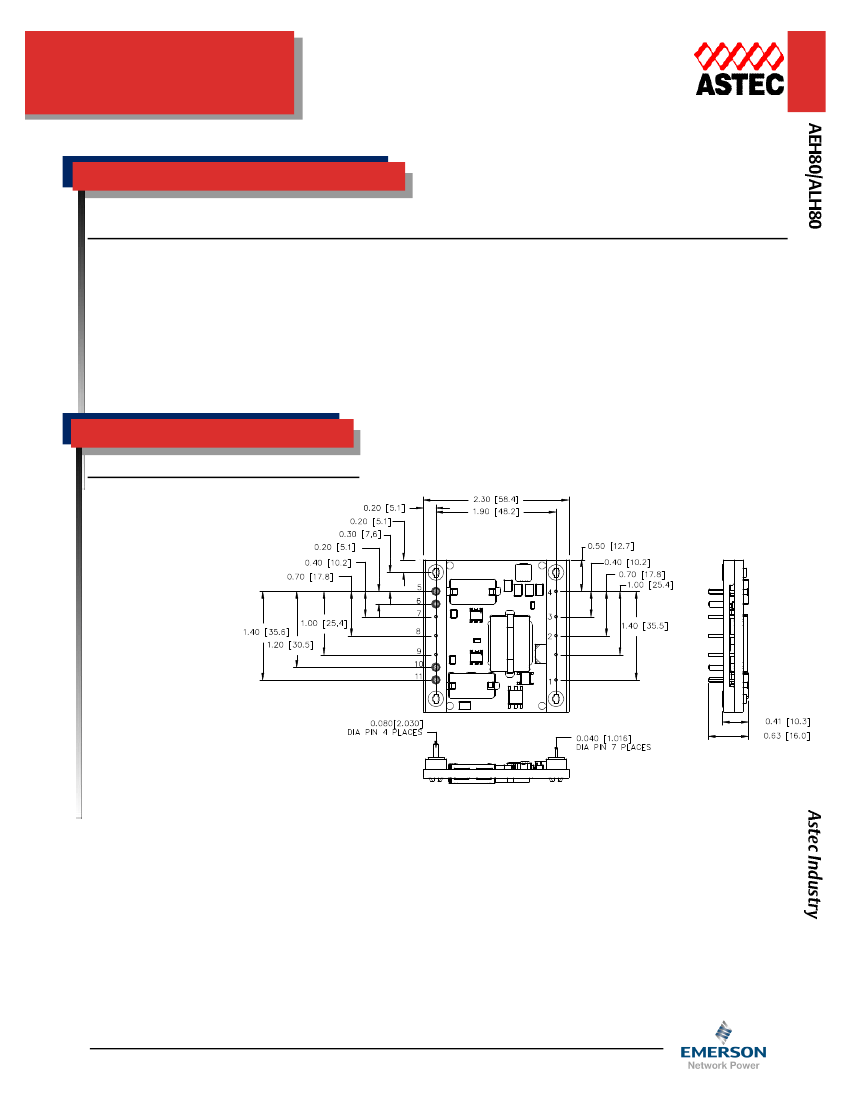

Pin Assignments
Single Output
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
-Vin
Case
Enable (on/off)
+Vin
+Output
+Output
+ Sense
Trim
- Sense
-Output
-Output
Notes:
1. 20 mHz bandwidth. External 10 uF tant. capacitor + 0.1 uF cer.
capacitor placed from +V out to -V out.
2. Requires a 2.2 mf, 100V film capacitor connected between +V in
and -V in to meet FCC class A and ETS300-386-1 requirements for
conducted noise. Consult Factory for filtering information to
meet FCC class B, VDE or EIC specifications.
3. All specifications are typical at nominal line, full load, and 25°C
unless otherwise noted.
4. All specifications subject to change without notice. Mechanical
drawings are for reference only
5. Technical Reference Notes should be consulted for detailed
information when available
6. Warranty: 1yr
Note:
ALH = 0.41” height
AEH = .5” Standard height
with Heatsink assembley
www.astec.com
5
