800-RF1575.42M-D: DescriptionGPS, RF SAW Filter; CategoryAnalog mixed-signal IC filter; File Size367KB，3 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com; Environmental Compliance

Download Datasheet Parametric View All

800-RF1575.42M-D Overview

GPS, RF SAW Filter

800-RF1575.42M-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Oscilent
Reach Compliance Code	compliant
Center frequency or cutoff frequency (fo/fc)	1575.42 MHz
filter type	SAW FILTER
high	1 mm
input resistance	50 OHM
Maximum insertion loss	1.5 dB
length	2.5 mm
Manufacturer's serial number	801-RF1575.42M-D
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	50 OHM Ω
physical size	L2.5XB2.0XH1.0 (mm)/L0.098XB0.079XH0.039 (inch)
Base Number Matches	1

Preview

Download Datasheet

View All

Oscilent Corporation RF SAW Filter | 800-RF1575.42M-D

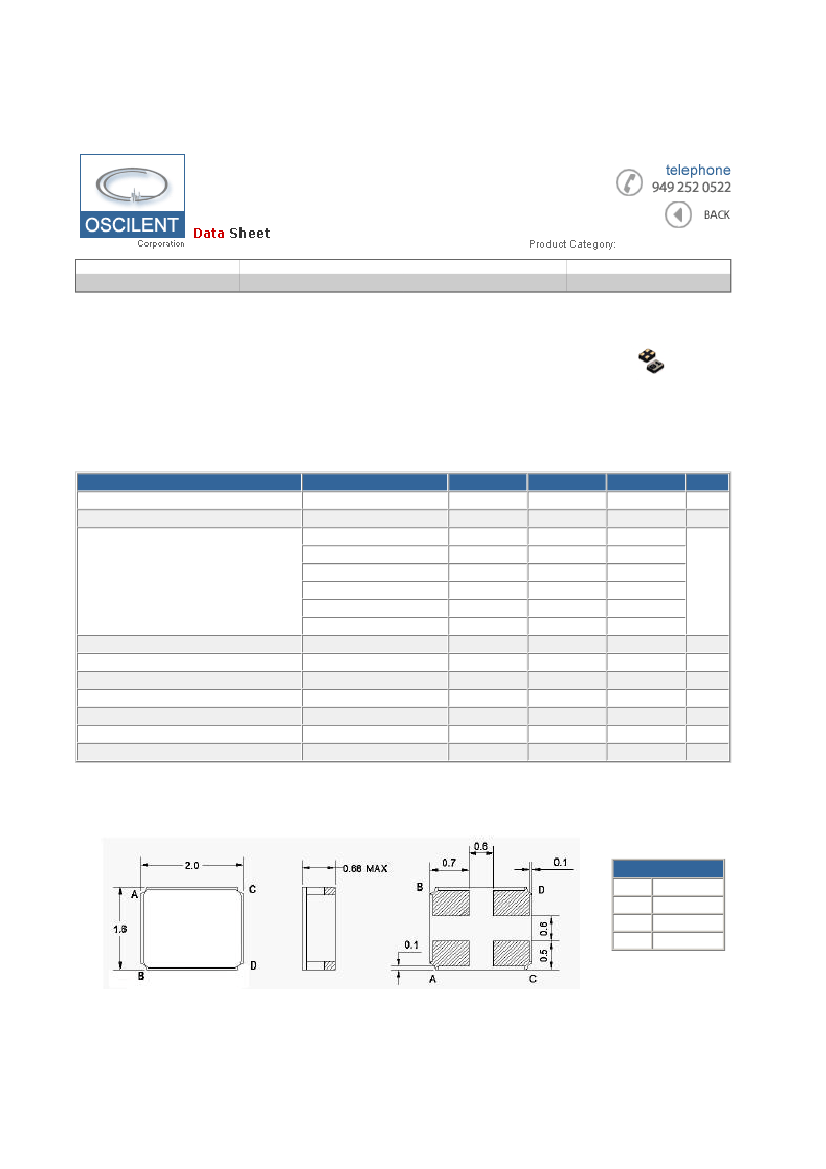

Page 1 of 3

RF SAW Filter

Part Number

Package

Application

Last Modified

800-RF1575.42M-D

.

TYPE :

1.6 x 2.0 SMD

GPS

Mar.14, 2007

GPS, RF SAW Filter

PART NUMBER :

800-RF1575.42M-D

..

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency (Fo)

Maximum Insertion Loss

Attenuation:

Condition

-

1574.42~ 1576.42 MHz

DC~ 1429.0 MHz

1429.0~ 1501.0 MHz

1501.0~ 1520.0MHz

1625.0~ 1650.0 MHz

1650.0~ 2200.0 MHz

2200.0~ 2500.0 MHz

Source Impedence (single ended)*

Load Impendance (single ended)*

VSWR

Amplitude Ripple

Maximum DC Voltage

Maximum Input Power

Operating Temperature

-

1574.42~ 1576.42 MHz

-

Minimum

-

19

23

20

15

21

-

-40

Typical

1575.42

1.0

21

26

28

30

25

50

1.1

0.1

-

Maximum

-

1.5

-

1.5

0.5

7.5

20

+85

ohm

-

dBp-p

V

dBm

ºC

dB

Units

MHz

dB

* No Matching Network(Ref. Testing Enviroment Circut as shown below)

.

PACKAGE OUTLINE

(mm)

PIN LAYOUT

A

B

C

D

Ground

In/ Out

In/Out

Ground

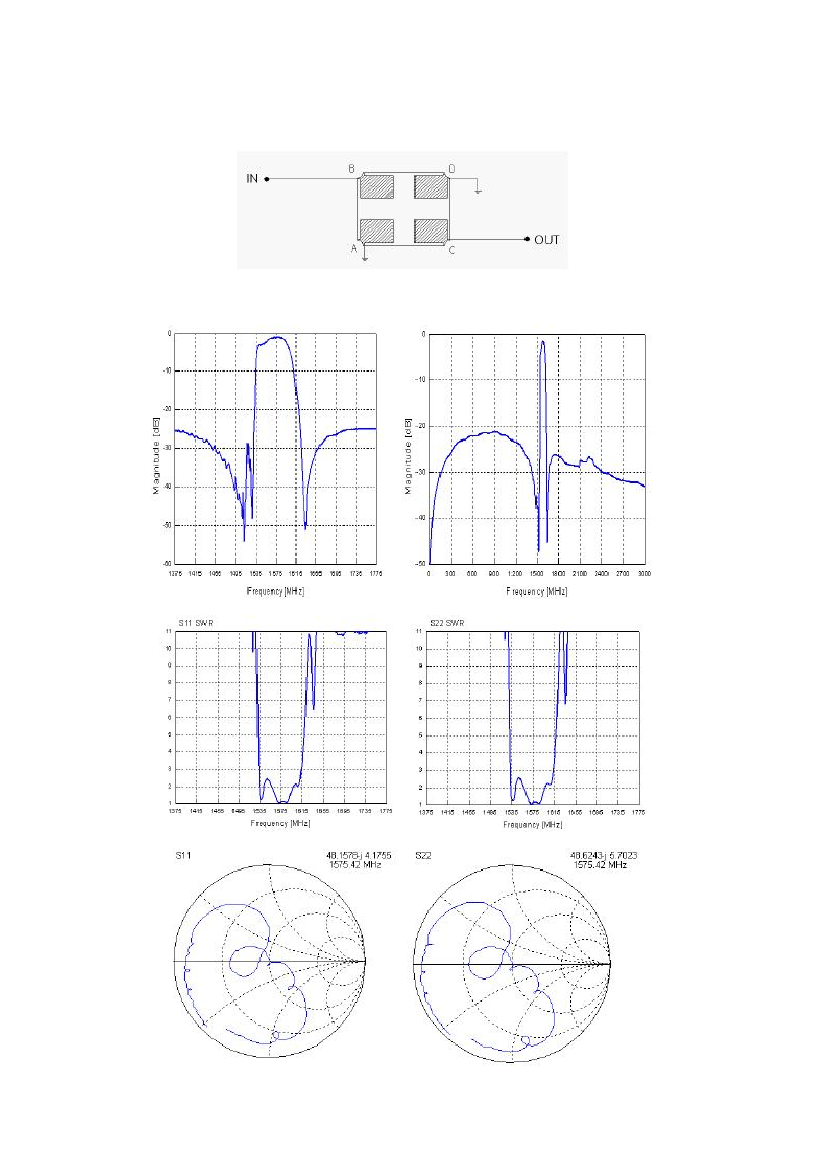

TEST FIXTURE
