HM2R88PAEA20E9LF

Description
Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE
CategoryThe connector    The connector
File Size119KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

HM2R88PAEA20E9LF Overview

Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE

HM2R88PAEA20E9LF Parametric

Parameter NameAttribute value
package instructionLEAD FREE
Reach Compliance Codecompliant
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedMATTE TIN
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberHM2
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded8
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts200
UL Flammability Code94V-0
Base Number Matches1

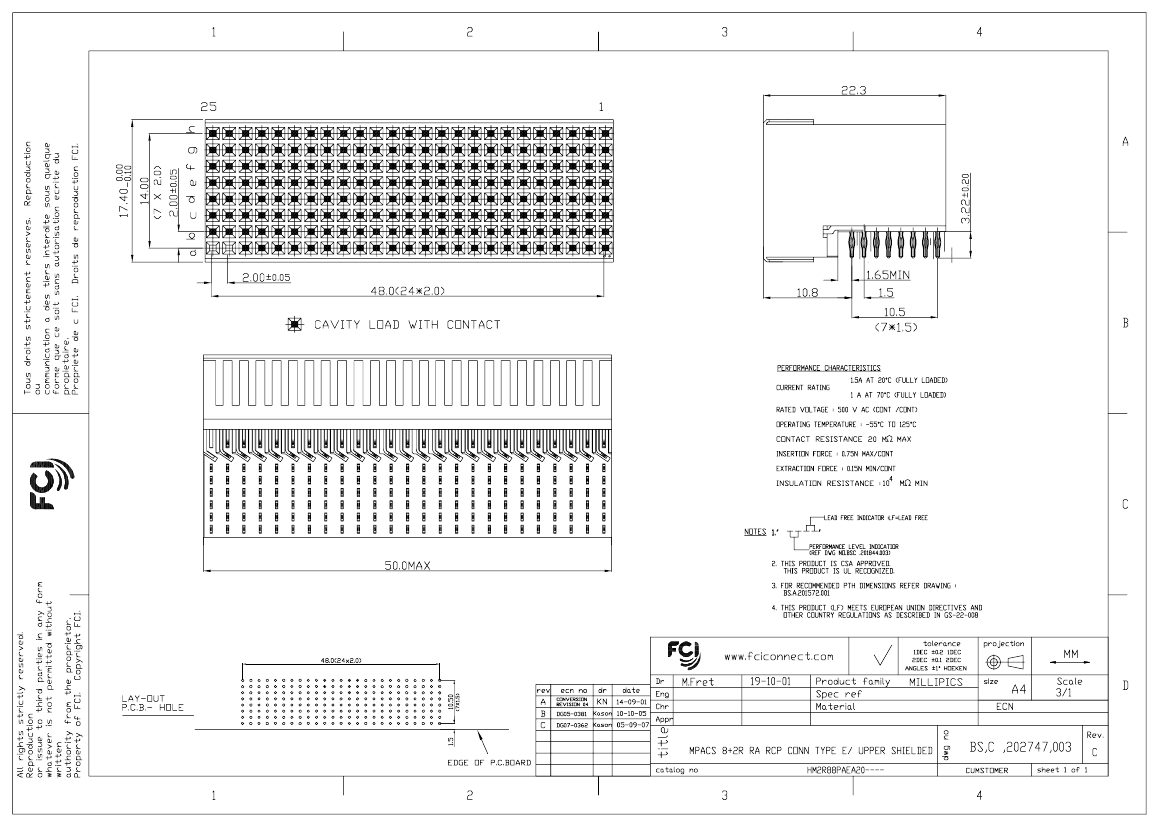

Preview

Download Datasheet
PDM: Rev:C
STATUS:
Released
Printed: Mar 15, 2011
.

HM2R88PAEA20E9LF Related Products

HM2R88PAEA20E9LF HM2R88PAEA20N9 HM2R88PAEA20Z1LF HM2R88PAEA20Z1 HM2R88PAEA20GCLF HM2R88PAEA20GC HM2R88PAEA20GFLF HM2R88PAEA20GF HM2R88PAEA20GLLF HM2R88PAEA20GL
Description Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE Board Connector, 200 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
DIN compliance NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO NO NO NO NO
Manufacturer's serial number HM2 HM2 HM2 HM2 HM2 HM2 HM2 HM2 HM2 HM2
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 8 8 8 8 8 8 8 8 8 8
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
Termination type PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 200 200 200 200 200 200 200 200 200 200
Contact completed and terminated MATTE TIN - MATTE TIN TIN LEAD MATTE TIN TIN LEAD MATTE TIN TIN LEAD MATTE TIN TIN LEAD
JESD-609 code e3 - e3 e0 e3 e0 e3 e0 e3 e0
Maker - - - - Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol
