HM2J07PE5120E9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2J07PE5120E9

HM2J07PE5120E9: DescriptionBoard Connector, 110 Contact(s), 5 Row(s), Male, Right Angle, Press Fit Terminal; CategoryThe connector The connector; File Size201KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

HM2J07PE5120E9 Overview

Board Connector, 110 Contact(s), 5 Row(s), Male, Right Angle, Press Fit Terminal

HM2J07PE5120E9 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110
Base Number Matches	1

Preview

Download Datasheet

View All

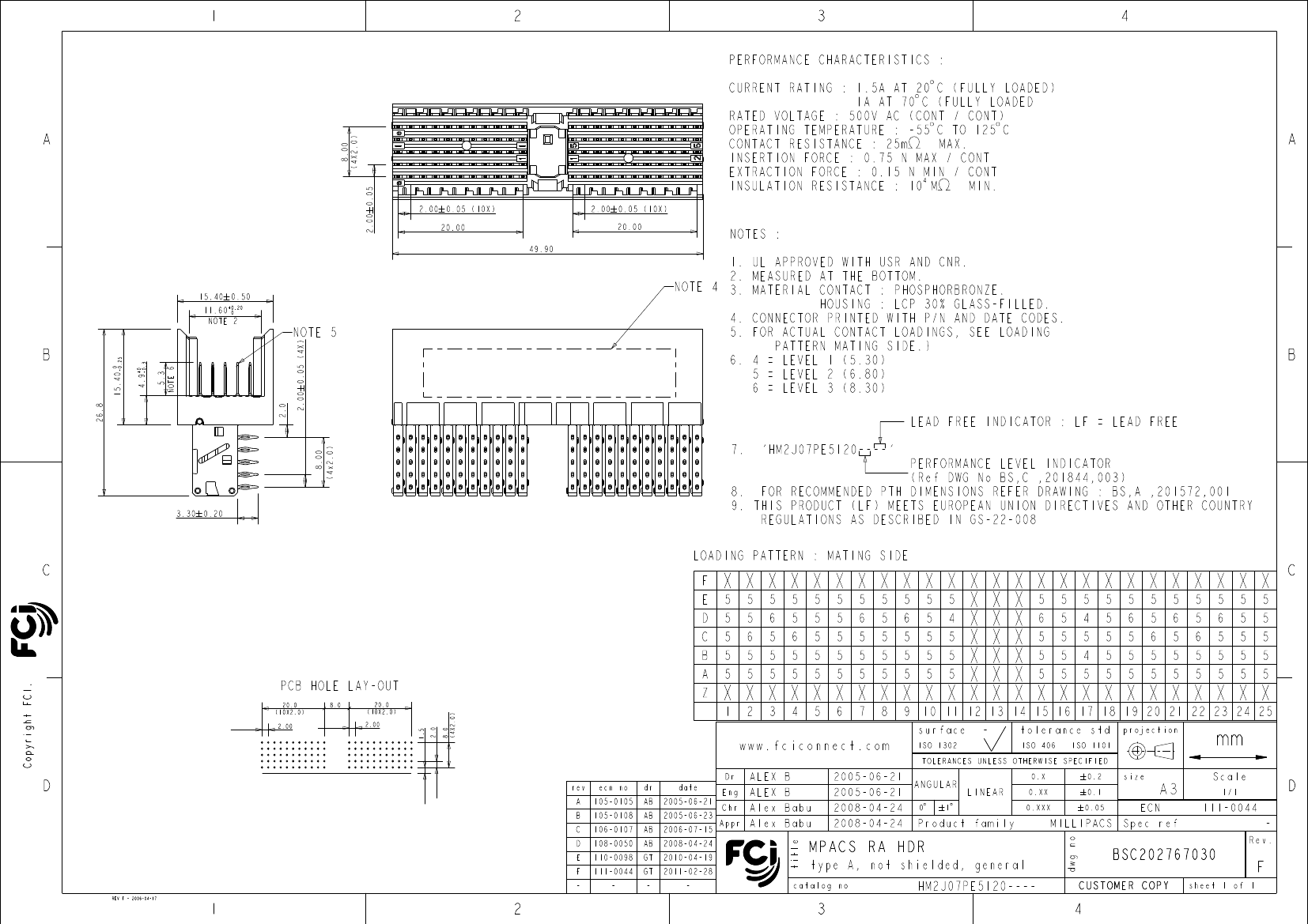

PERFORMANCE CHARACTERISTICS :

CURRENT RATING : 1.5A AT 20 C (FULLY LOADED)

1A AT 70 C (FULLY LOADED

RATED VOLTAGE : 500V AC (CONT / CONT)

OPERATING TEMPERATURE : -55 C TO 125 C

CONTACT RESISTANCE : 25m

MAX.

INSERTION FORCE : 0.75 N MAX / CONT

EXTRACTION FORCE : 0.15 N MIN / CONT

INSULATION RESISTANCE : 10 M

MIN.

8.00

(4X2.0)

2.00 0.05

2.00 0.05 (10X)

20.00

49.90

2.00 0.05 (10X)

20.00

NOTES :

1. UL APPROVED WITH USR AND CNR.

2. MEASURED AT THE BOTTOM.

NOTE 4 3. MATERIAL CONTACT : PHOSPHORBRONZE.

HOUSING : LCP 30% GLASS-FILLED.

4. CONNECTOR PRINTED WITH P/N AND DATE CODES.

5. FOR ACTUAL CONTACT LOADINGS, SEE LOADING

PATTERN MATING SIDE.}

6. 4 = LEVEL 1 (5.30)

5 = LEVEL 2 (6.80)

6 = LEVEL 3 (8.30)

LEAD FREE INDICATOR : LF = LEAD FREE

15.40 0.50

11.60

+0.20

NOTE 2

NOTE 5

15.40

-0.25

4.9

-0.3

2.00 0.05 (4X)

26.8

NOTE 6

5.3

2.0

8.00

(4x2.0)

'HM2J07PE5120----'

3.30 0.20

PERFORMANCE LEVEL INDICATOR

(Ref DWG No BS,C ,201844,003)

8. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS,A ,201572,001

9. THIS PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

LOADING PATTERN : MATING SIDE

8.0

(4X2.0)

2.0

1.5

PCB HOLE LAY-OUT

20.0

(10X2.0)

2.00

8.0

20.0

(10X2.0)

2.00

X X X X X X X X X X X X

5 5 5 5 5 5 5 5 5 5 5

5 5 6 5 5 5 6 5 6 5 4

5 6 5 6 5 5 5 5 5 5 5

5 5 5 5 5 5 5 5 5 5 5

X X X X X X X X X X X X

surface

X X X X X X X X X X X X

5 5 5 5 5 5 5 5 5 5 5

6 5 4 5 6 5 6 5 6 5 5

5 5 5 5 5 6 5 6 5 5 5

5 5 4 5 5 5 5 5 5 5 5

5 5 5 5 5 5 5 5 5 5 5

X X X X X X X X X X X X

tolerance std

ISO 406

ISO 1101

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

projection

ISO 1302

www.fciconnect.com

Scale

1/1

TOLERANCES UNLESS OTHERWISE SPECIFIED

rev

REV F - 2006-04-17

ALEX B

Alex Babu

title

2005-06-21

2008-04-24

ecn no

I05-0105

I05-0108

I06-0107

I08-0050

I10-0098

I11-0044

date

2005-06-21

2005-06-23

2006-07-15

2008-04-24

2010-04-19

2011-02-28

Eng

Chr

Appr

ANGULAR

0.X

0.2

0.1

0.05

size

LINEAR

0.XX

0.XXX

ECN

Rev.

I11-0044

Product family

MILLIPACS Spec ref

dwg no

MPACS RA HDR

type A, not shielded, general

HM2J07PE5120----

BSC202767030

CUSTOMER COPY

sheet

1 of 1

catalog no

PDM: Rev:F

STATUS:

Released

Printed: Mar 19, 2011
