MJ04-C55MRP-301G datasheet, PDF

Datasheet> All Categories > The connector> The connector> MJ04-C55MRP-301G

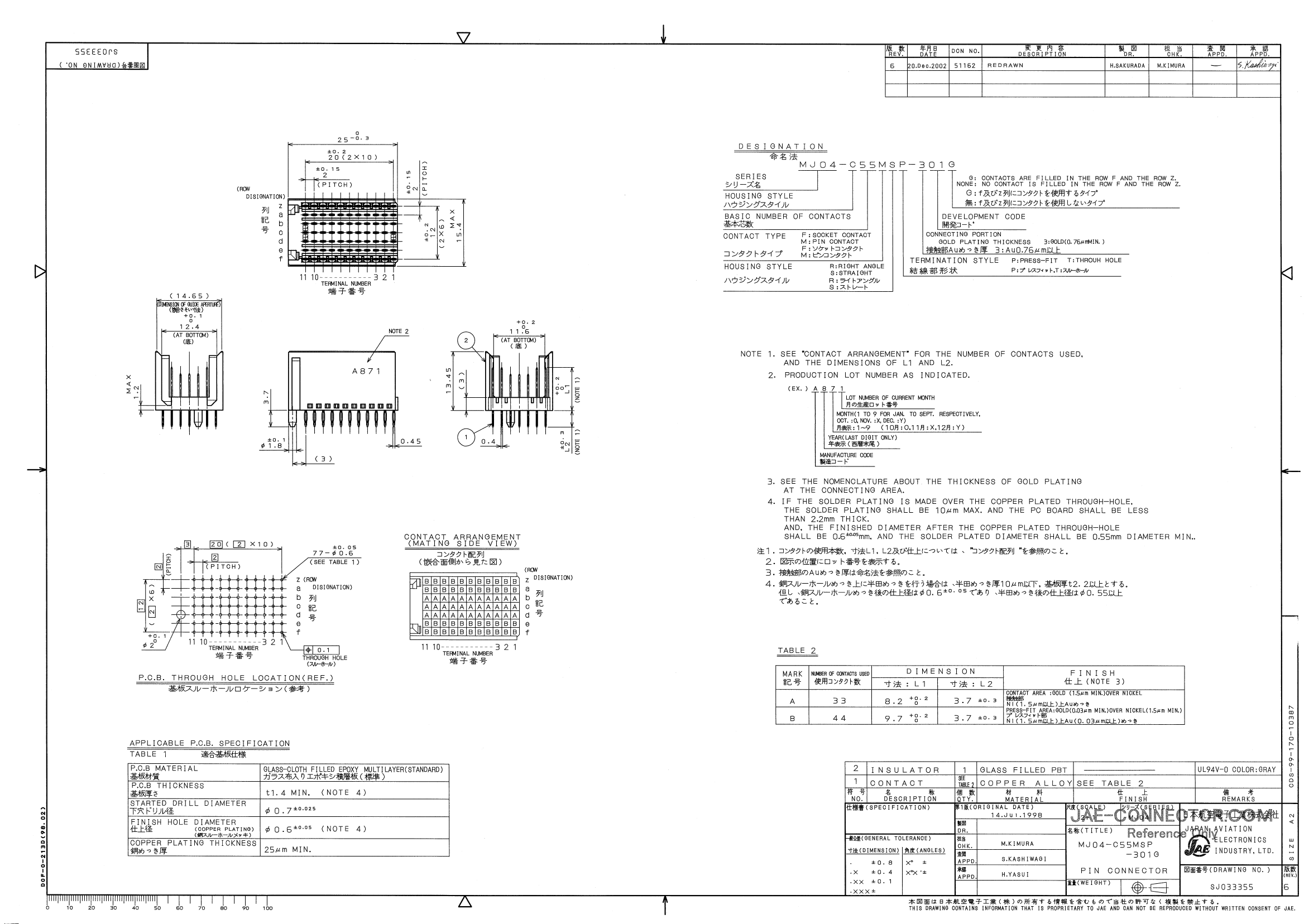

MJ04-C55MRP-301G: DescriptionBoard Connector, 77 Contact(s), 7 Row(s), Male, Right Angle, Press Fit Terminal,; CategoryThe connector The connector; File Size205KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

MJ04-C55MRP-301G Overview

Board Connector, 77 Contact(s), 7 Row(s), Male, Right Angle, Press Fit Terminal,

MJ04-C55MRP-301G Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (1) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MJ04
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	77
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

MJ04-C55MRP-301G Related Products

	MJ04-C55MRP-301G	MJ04-C55FRP-301G	MJ04-C55FRT-301G	MJ04-C55FSP-301G	MJ04-C55FST-301G	MJ04-C55MRT-301G	MJ04-C55MST-301G	MJ04-C55MSP-301G
Description	Board Connector, 77 Contact(s), 7 Row(s), Male, Right Angle, Press Fit Terminal,	Board Connector, 77 Contact(s), 7 Row(s), Female, Right Angle, Press Fit Terminal,	Board Connector, 77 Contact(s), 7 Row(s), Female, Right Angle, Solder Terminal,	Board Connector, 77 Contact(s), 7 Row(s), Female, Straight, Press Fit Terminal,	Board Connector, 77 Contact(s), 7 Row(s), Female, Straight, Solder Terminal,	Board Connector, 77 Contact(s), 7 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Solder Terminal,	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	NOT SPECIFIED
Contact point gender	MALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	SOLDER	PRESS FIT	SOLDER	SOLDER	SOLDER	PRESS FIT
Total number of contacts	77	77	77	77	77	77	77	77
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
Contact completed and terminated	GOLD (1) OVER NICKEL	GOLD (1) OVER NICKEL	GOLD (1) OVER NICKEL	GOLD (1) OVER NICKEL	GOLD (1) OVER NICKEL	GOLD (1) OVER NICKEL	GOLD (1) OVER NICKEL	-
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	-
Manufacturer's serial number	MJ04	MJ04	MJ04	MJ04	MJ04	MJ04	MJ04	-
Base Number Matches	1	1	1	1	1	1	1	-
