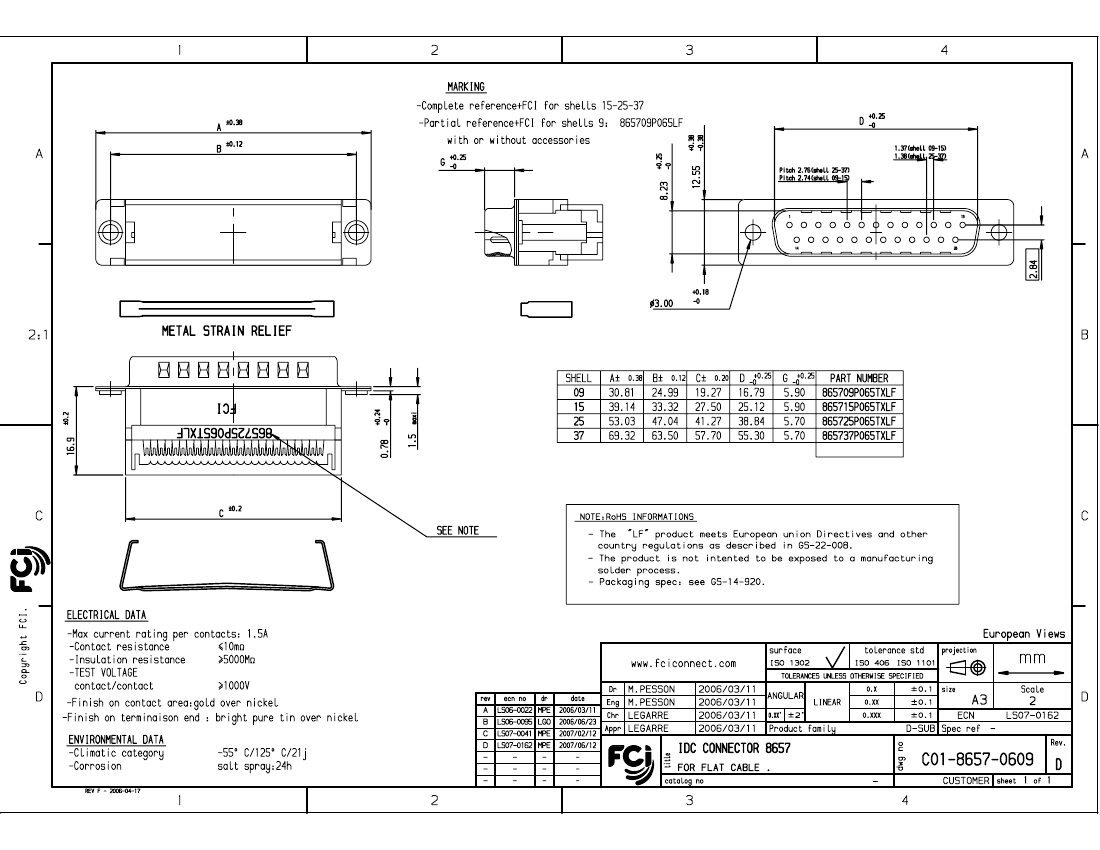

D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .115-.125, Receptacle, LEAD FREE
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| body width | 0.494 inch |
| subject depth | 0.665 inch |
| body length | 2.729 inch |
| Body/casing type | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | STAGGERED |
| Contact resistance | 10 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 4.8928 N |
| Insulation resistance | 5000000000 Ω |
| insulator material | THERMOPLASTIC |
| MIL compliance | NO |
| Manufacturer's serial number | 865737P065TXLF |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation option 1 | HOLE .115-.125 |
| Installation option 2 | LOCKING |
| Installation type | CABLE |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Rated current (signal) | 1.5 A |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 4/C |
| Termination type | IDC |
| Total number of contacts | 37 |
| Maximum wire diameter | 26 AWG |
| Minimum wire diameter | 30 AWG |
| Evacuation force-minimum value | .278 N |
| Base Number Matches | 1 |
| 865737P065TXLF | 865709P065TXLF | 865725P065TXLF | 865715P065TXLF | |
|---|---|---|---|---|
| Description | D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .115-.125, Receptacle, LEAD FREE | D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, IDC Terminal, Hole .115-.125, Receptacle, LEAD FREE | D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .115-.125, Receptacle, LEAD FREE | D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, IDC Terminal, Hole .115-.125, Receptacle, LEAD FREE |
| Is it Rohs certified? | conform to | conform to | conform to | conform to |
| package instruction | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| body width | 0.494 inch | 0.494 inch | 0.494 inch | 0.494 inch |
| subject depth | 0.665 inch | 0.665 inch | 0.665 inch | 0.665 inch |
| body length | 2.729 inch | 1.213 inch | 2.088 inch | 1.541 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | GOLD OVER NICKEL |
| Contact point gender | MALE | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | NO | NO | NO | NO |
| Dielectric withstand voltage | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V |
| empty shell | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| maximum insertion force | 4.8928 N | 4.8928 N | 4.8928 N | 4.8928 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| MIL compliance | NO | NO | NO | NO |
| Plug contact pitch | 0.109 inch | 0.108 inch | 0.109 inch | 0.108 inch |
| Match contact row spacing | 0.112 inch | 0.112 inch | 0.112 inch | 0.112 inch |
| Mixed contacts | NO | NO | NO | NO |
| Installation option 1 | HOLE .115-.125 | HOLE .115-.125 | HOLE .115-.125 | HOLE .115-.125 |
| Installation option 2 | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation type | CABLE | CABLE | CABLE | CABLE AND PANEL |
| Number of rows loaded | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Rated current (signal) | 1.5 A | 1.5 A | 1.5 A | 1.5 A |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | TIN | TIN | TIN | TIN |
| Shell material | STEEL | STEEL | STEEL | STEEL |
| Housing size | 4/C | 1/E | 3/B | 2/A |
| Termination type | IDC | IDC | IDC | IDC |
| Total number of contacts | 37 | 9 | 25 | 15 |
| Maximum wire diameter | 26 AWG | 26 AWG | 26 AWG | 26 AWG |
| Minimum wire diameter | 30 AWG | 30 AWG | 30 AWG | 30 AWG |
| Evacuation force-minimum value | .278 N | .278 N | .278 N | .278 N |
