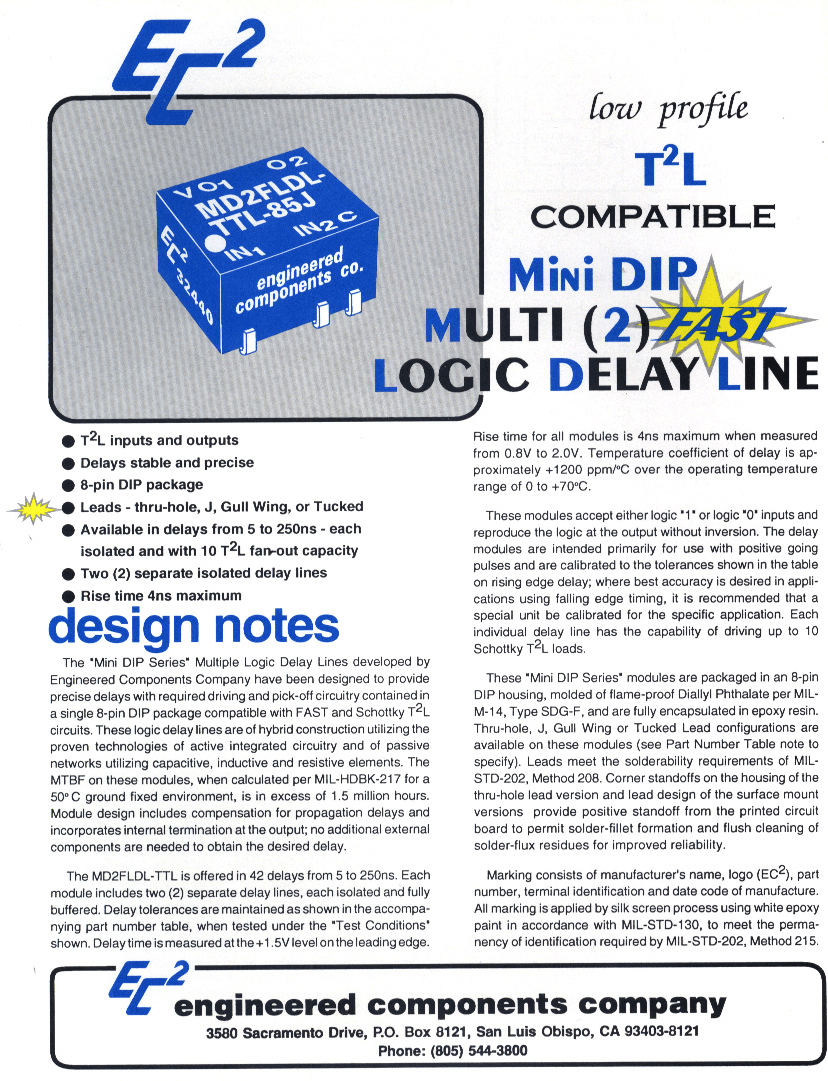

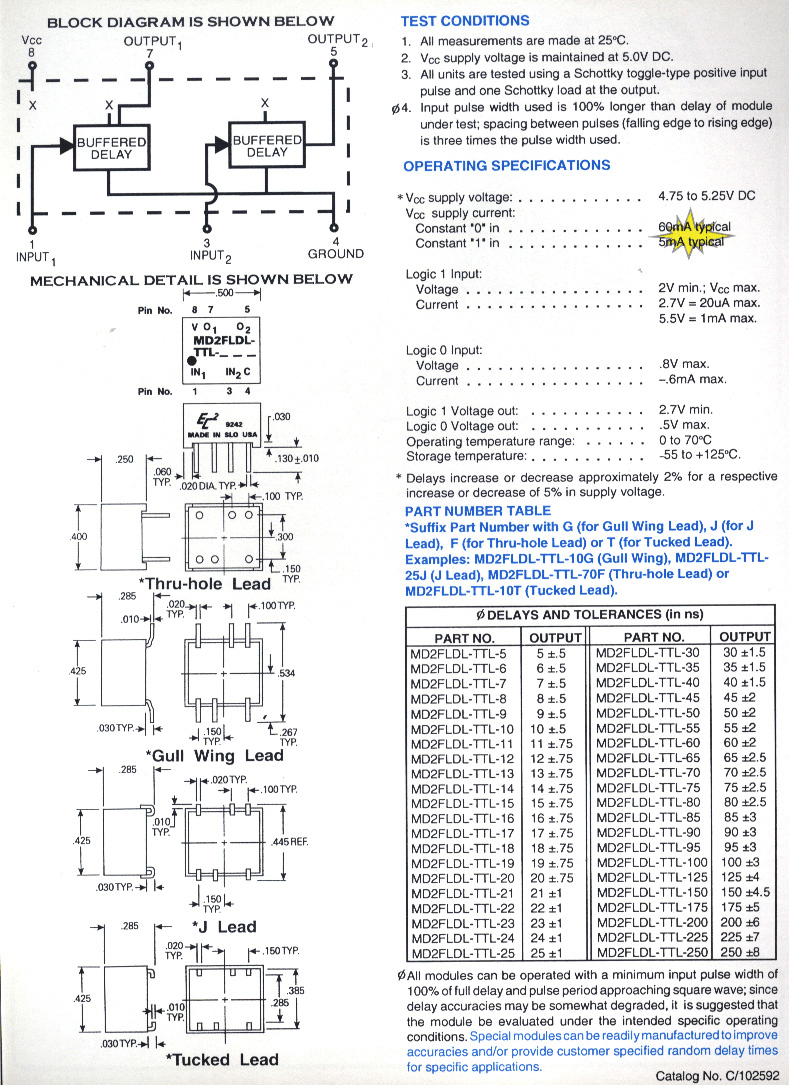

MD2FLDL-TTL-90T datasheet, PDF

MD2FLDL-TTL-90T: DescriptionActive Delay Line, 2-Func, 1-Tap, True Output, TTL, TUCKED LEAD, MODULE-8/6; Categorylogic logic; File Size1MB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

MD2FLDL-TTL-90T Overview

Active Delay Line, 2-Func, 1-Tap, True Output, TTL, TUCKED LEAD, MODULE-8/6

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOL, SMDIP6/8,.38
Contacts	6
Reach Compliance Code	unknown
Other features	TYP. ICC = 60MA; MAX FAN OUT OF 10 STTL LOAD PER OUTPUT; INTERNAL TERMINATION
series	F
JESD-30 code	R-XDSO-L6
length	12.7 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	2
Number of taps/steps	1
Number of terminals	6
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	SOL
Encapsulate equivalent code	SMDIP6/8,.38
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	93 ns
Certification status	Not Qualified
Maximum seat height	7.239 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	L BEND
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	90 ns
width	10.795 mm
Base Number Matches	1
