74F86 2-Input Exclusive-OR Gate
April 1988
Revised June 2003
74F86
2-Input Exclusive-OR Gate
General Description
This device contains four independent gates, each of which
performs the logic exclusive-OR function.
Ordering Code:
Order Number
74F86SC
74F86SJ
74F86PC
Package Number
M14A
M14D
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbol
IEEE/IEC
Connection Diagram
Unit Loading/Fan Out
U.L.
Pin Names
A
n
, B
n
O
n
Description
Inputs
Outputs
HIGH/LOW
1.0/1.0
50/33.3
Input I
IH
/I
IL
Output I
OH
/I
OL
20
µ
A/
−
0.6 mA
−
1 mA/20 mA
© 2003 Fairchild Semiconductor Corporation
DS009470
www.fairchildsemi.com
74F86
Absolute Maximum Ratings
(Note 1)
Storage Temperature
Ambient Temperature under Bias
Junction Temperature under Bias
V
CC
Pin Potential to Ground Pin
Input Voltage (Note 2)
Input Current (Note 2)
Voltage Applied to Output
in HIGH State (with V
CC
=
0V)
Standard Output
3-STATE Output
Current Applied to Output
in LOW State (Max)
twice the rated I
OL
(mA)
−
65
°
C to
+
150
°
C
−
55
°
C to
+
125
°
C
−
55
°
C to
+
150
°
C
−
0.5V to
+
7.0V
−
0.5V to
+
7.0V
−
30 mA to
+
5.0 mA
Recommended Operating
Conditions
Free Air Ambient Temperature
Supply Voltage
0
°
C to
+
70
°
C
+
4.5V to
+
5.5V
−
0.5V to V
CC
−
0.5V to
+
5.5V
Note 1:
Absolute maximum ratings are values beyond which the device
may be damaged or have its useful life impaired. Functional operation
under these conditions is not implied.
Note 2:
Either voltage limit or current limit is sufficient to protect inputs.
DC Electrical Characteristics
Symbol
V
IH
V
IL
V
CD
V
OH
V
OL
I
IH
I
BVI
I
CEX
V
ID
I
OD
I
IL
I
OS
I
CCH
I
CCL
Parameter
Input HIGH Voltage
Input LOW Voltage
Input Clamp Diode Voltage
Output HIGH Voltage
Output LOW Voltage
Input HIGH Current
Input HIGH Current Breakdown Test
Output HIGH Leakage Current
Input Leakage Test
Output Leakage Circuit Current
Input LOW Current
Output Short-Circuit Current
Power Supply Current
Power Supply Current
−60
12
18
4.75
3.75
−0.6
−150
18
28
10% V
CC
5% V
CC
10% V
CC
2.5
2.7
0.5
5.0
7.0
50
µA
µA
µA
V
µA
mA
mA
mA
mA
Min
2.0
0.8
−1.2
Typ
Max
Units
V
V
V
V
Min
Min
Min
Max
Max
Max
0.0
0.0
Max
Max
Max
Max
V
CC
Conditions
Recognized as a HIGH Signal
Recognized as a LOW Signal
I
IN
= −18
mA
I
OH
= −1
mA
I
OH
= −1
mA
I
OL
=
20 mA
V
IN
=
2.7V
V
IN
=
7.0V
V
OUT
=
V
CC
I
ID
=
1.9
µA
All other pins grounded
V
IOD
=
150 mV
All other pins grounded
V
IN
=
0.5V
V
OUT
=
0V
V
O
=
HIGH
V
O
=
LOW
AC Electrical Characteristics
T
A
= +25°C
Symbol
Parameter
Min
t
PLH
t
PHL
t
PLH
t
PHL
Propagation Delay
A
n
, B
n
to O
n
(Other Input LOW)
Propagation Delay
A
n
, B
n
to O
n
(Other Input HIGH)
3.5
3.0
5.3
4.7
7.0
6.5
3.5
3.0
8.0
7.5
ns
3.0
3.0
V
CC
= +5.0V
C
L
=
50 pF
Typ
4.0
4.2
Max
5.5
5.5
T
A
=
0°C to
+70°C
V
CC
= +5.0V
C
L
=
50 pF
Min
3.0
3.0
Max
6.5
6.5
ns
Units
www.fairchildsemi.com
2
74F86
Physical Dimensions
inches (millimeters) unless otherwise noted
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
Package Number M14A
3
www.fairchildsemi.com
74F86
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)

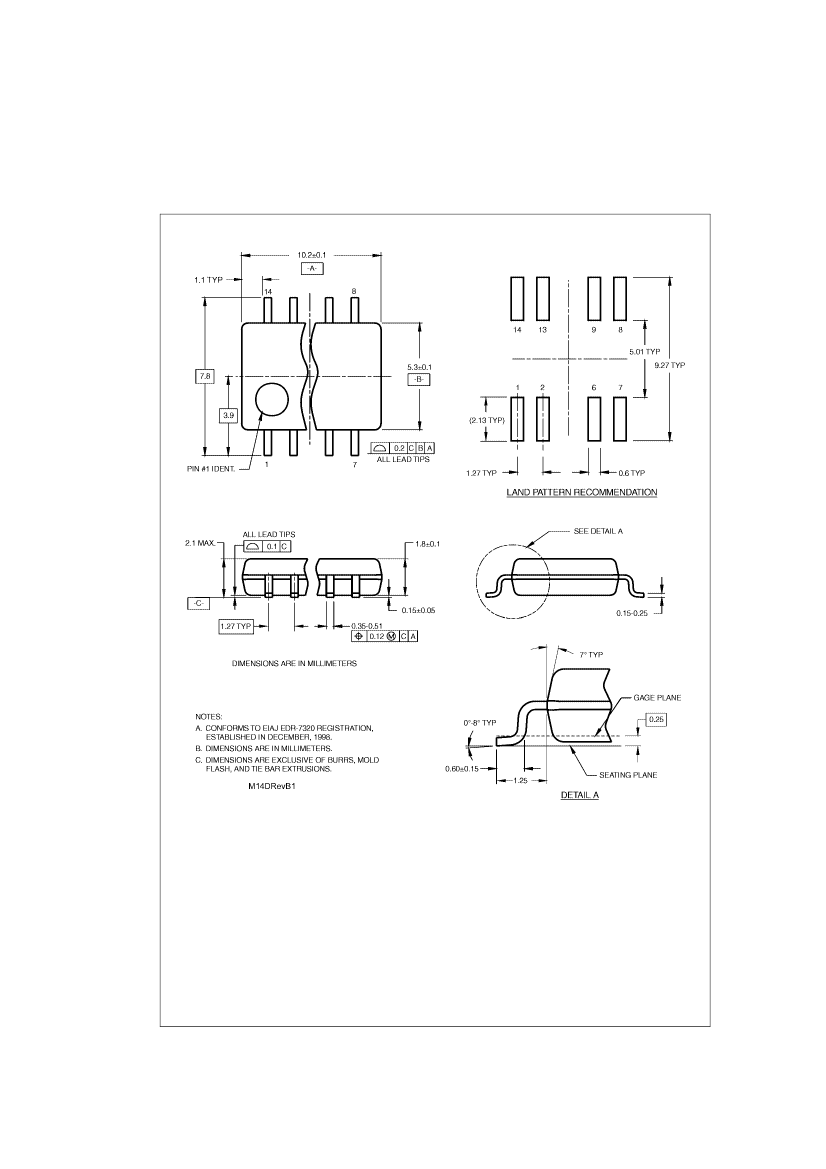

14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
Package Number M14D
www.fairchildsemi.com
4
74F86 2-Input Exclusive-OR Gate
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
Package Number N14A
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea-
sonably expected to result in a significant injury to the
user.
5
2. A critical component in any component of a life support
device or system whose failure to perform can be rea-
sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
