74AC648PW: DescriptionRegistered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO24,; Categorylogic logic; File Size607KB，14 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

74AC648PW Overview

Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO24,

74AC648PW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	TSSOP, TSSOP24,.25
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.012 A
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP24,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	10 ns
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

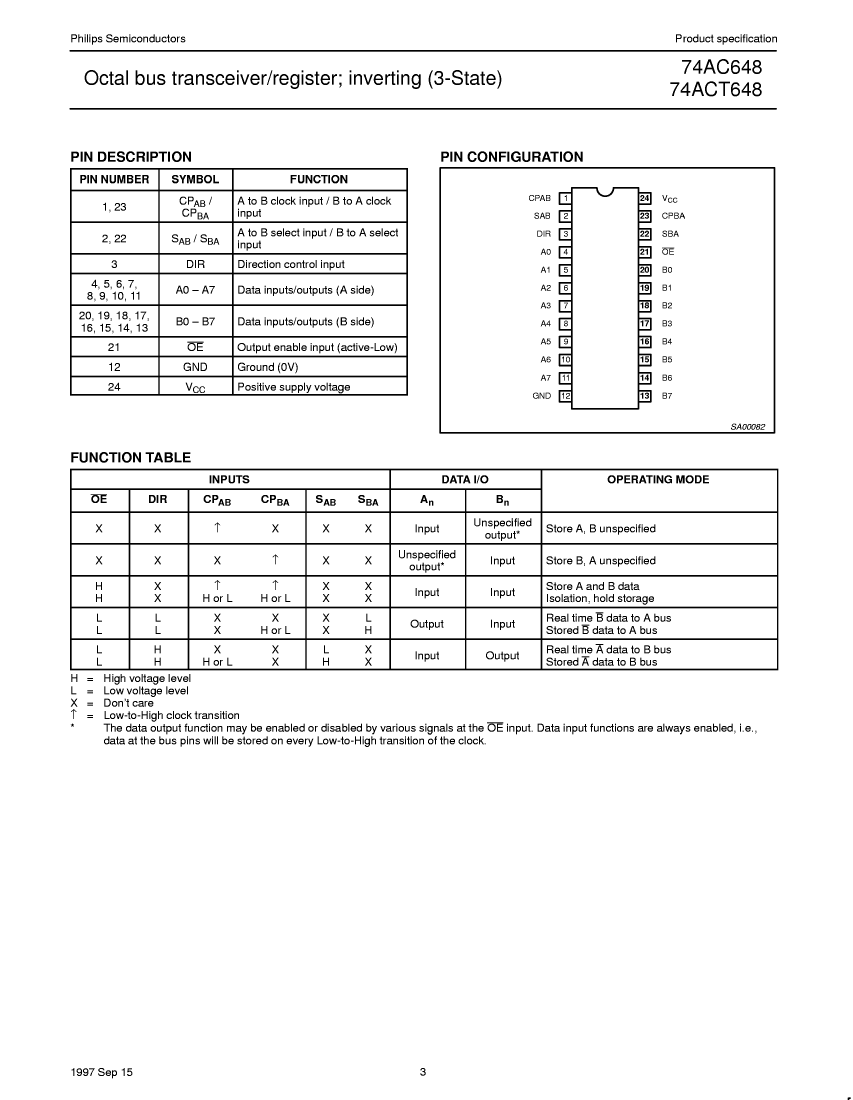

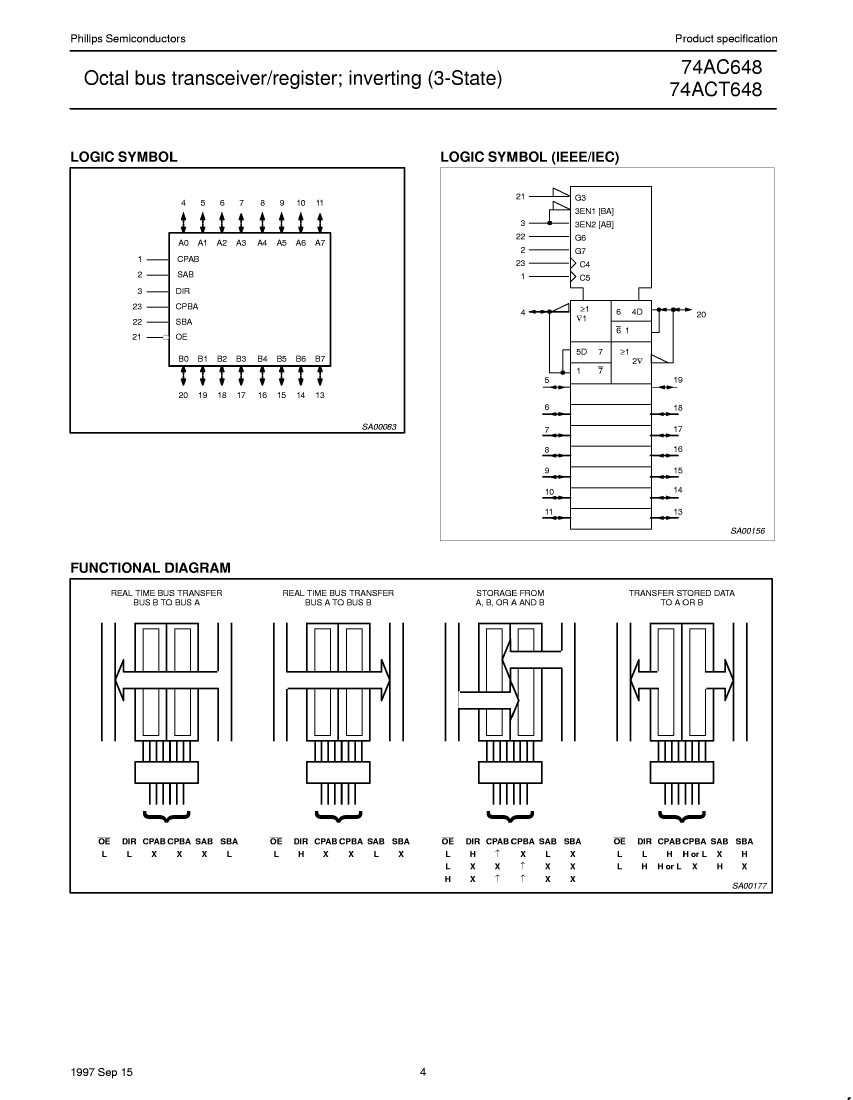

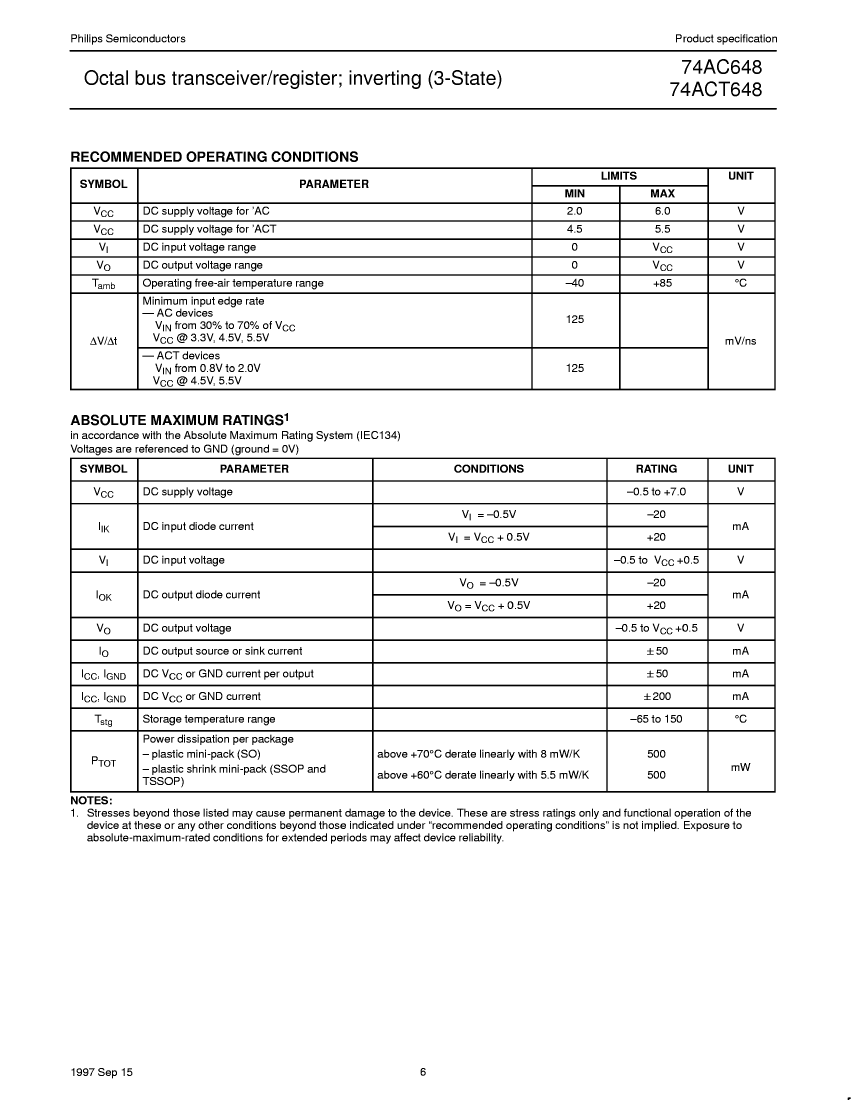

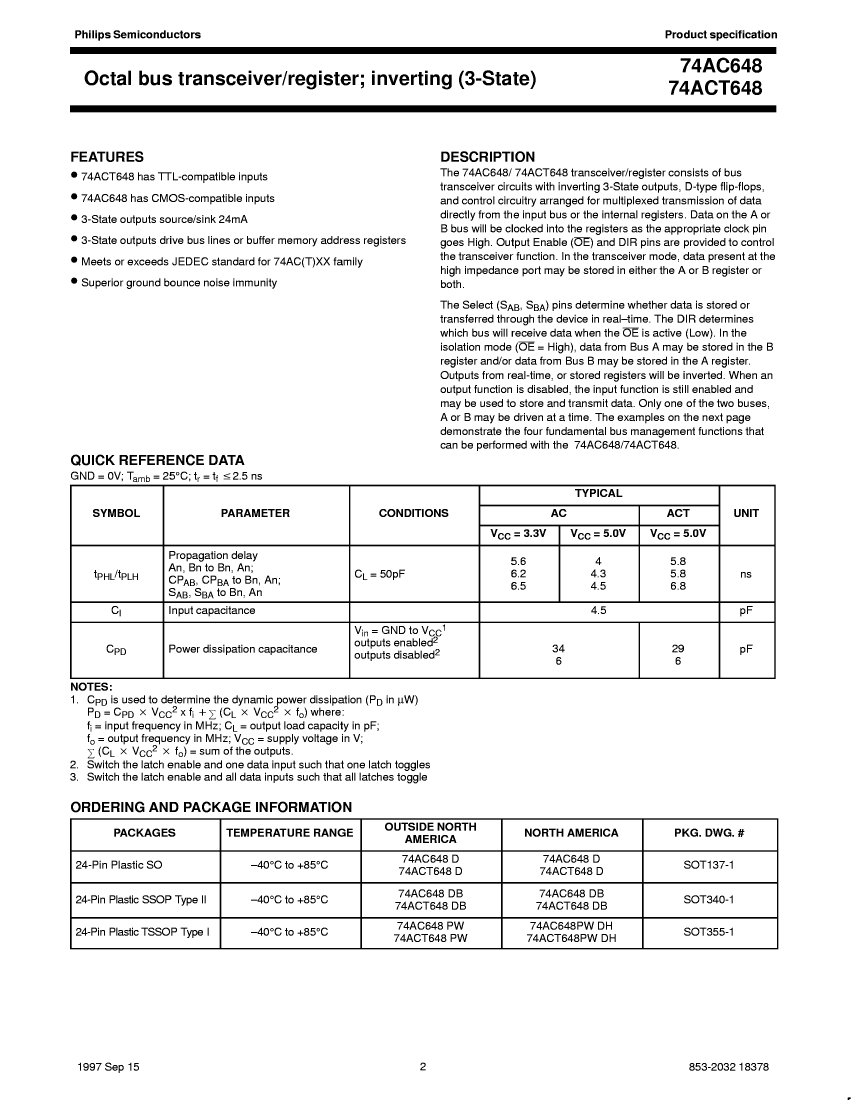

Preview

Download Datasheet

View All

74AC648PW Related Products

	74AC648PW	74ACT648PW	74AC648D	74ACT648DB
Description	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO24,	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO24,	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO24,	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	TSSOP, TSSOP24,.25	TSSOP, TSSOP24,.25	SOP, SOP24,.4	SSOP, SSOP24,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.012 A	0.024 A	0.012 A	0.024 A
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	24	24	24	24
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	SOP	SSOP
Encapsulate equivalent code	TSSOP24,.25	TSSOP24,.25	SOP24,.4	SSOP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH
power supply	3.3/5 V	5 V	3.3/5 V	5 V
Prop。Delay @ Nom-Sup	10 ns	11.5 ns	10 ns	11.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	1.27 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1	1	1
Maker	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
