B43514E9477M007 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B43514E9477M007

B43514E9477M007: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 470uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size251KB，10 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B43514E9477M007 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 470uF, THROUGH HOLE MOUNT, RADIAL LEADED

B43514E9477M007 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	280 mΩ
JESD-609 code	e3
leakage current	1.47981 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	400 V
ripple current	2200 mA
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	SNAP-IN
Base Number Matches	1

Preview

Download Datasheet

View All

Capacitors with 4 Snap-In Terminals and Solder Pins

Wide Temperature Range

–

105 °C

B43514, B43524

Long-life grade capacitors

Applications

Frequency converters

Professional switch-mode power supplies

B43514

B43524

Features

Long useful life

High reliability and high ripple current capability

Small dimensions

Many different case sizes

Pinning ensures correct insertion

KAL0409-D

B 43 514

B 43 524

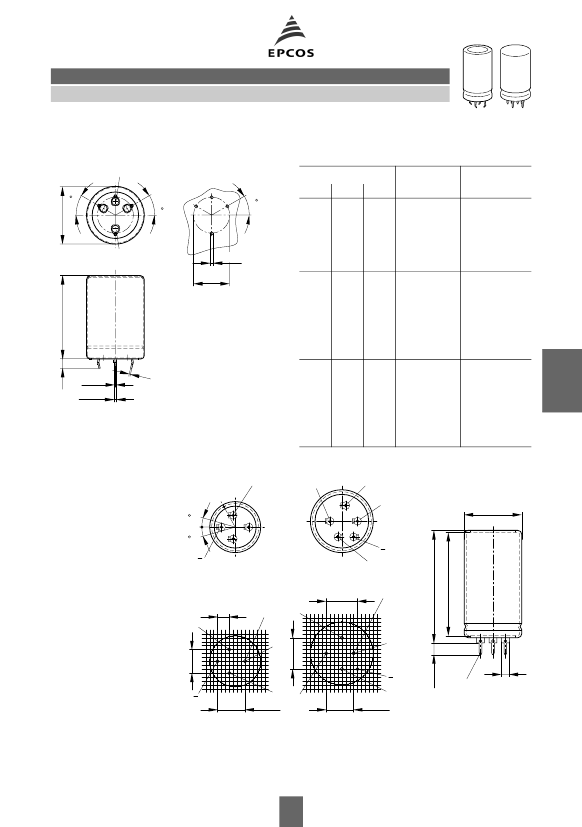

Construction

Charge-discharge proof, polar

Aluminum case, fully insulated

Overload protection by preset break point in case

Terminals

4 snap-in terminals (6,3 mm and 4,5 mm length)

Solder pin mounting on printed circuit boards,

pins fit standardized spacings on PCB

197

10/02

B43514E9477M007 Related Products

	B43514E9477M007	B43514A4228M007	B43514A4228M000	B43514C0827M000	B43514C0827M007	B43514E9477M000	B43514E9687M000	B43514E9687M007
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 470uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 350V, 2200uF, THROUGH HOLE MOUNT, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 350V, 2200uF, THROUGH HOLE MOUNT, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 420V, 820uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 420V, 820uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 470uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 680uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 680uF, THROUGH HOLE MOUNT, RADIAL LEADED
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	470 µF	2200 µF	2200 µF	820 µF	820 µF	470 µF	680 µF	680 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	280 mΩ	65 mΩ	65 mΩ	250 mΩ	250 mΩ	280 mΩ	190 mΩ	190 mΩ
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
leakage current	1.47981 mA	3.96372 mA	3.96372 mA	2.25858 mA	2.25858 mA	1.47981 mA	1.91526 mA	1.91526 mA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-25 °C	-25 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
method of packing	BULK	CARDBOARD	CARDBOARD	BULK	BULK	BULK	BULK	BULK
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	400 V	350 V	350 V	420 V	420 V	400 V	400 V	400 V
ripple current	2200 mA	6110 mA	6110 mA	3100 mA	3100 mA	2200 mA	2600 mA	2600 mA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN
Base Number Matches	1	1	1	1	1	1	1	1
