HM1K51NBP040H0P datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM1K51NBP040H0P

HM1K51NBP040H0P: DescriptionBoard Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM1K51NBP040H0P Overview

Board Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle

HM1K51NBP040H0P Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SOLDER, TRAY PACKAGING
body width	0.701 inch
subject depth	1.378 inch
body length	0.472 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	BLADE PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	53.376 N
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	HM1
Plug contact pitch	0.236 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZING PEG
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	30
Base Number Matches	1

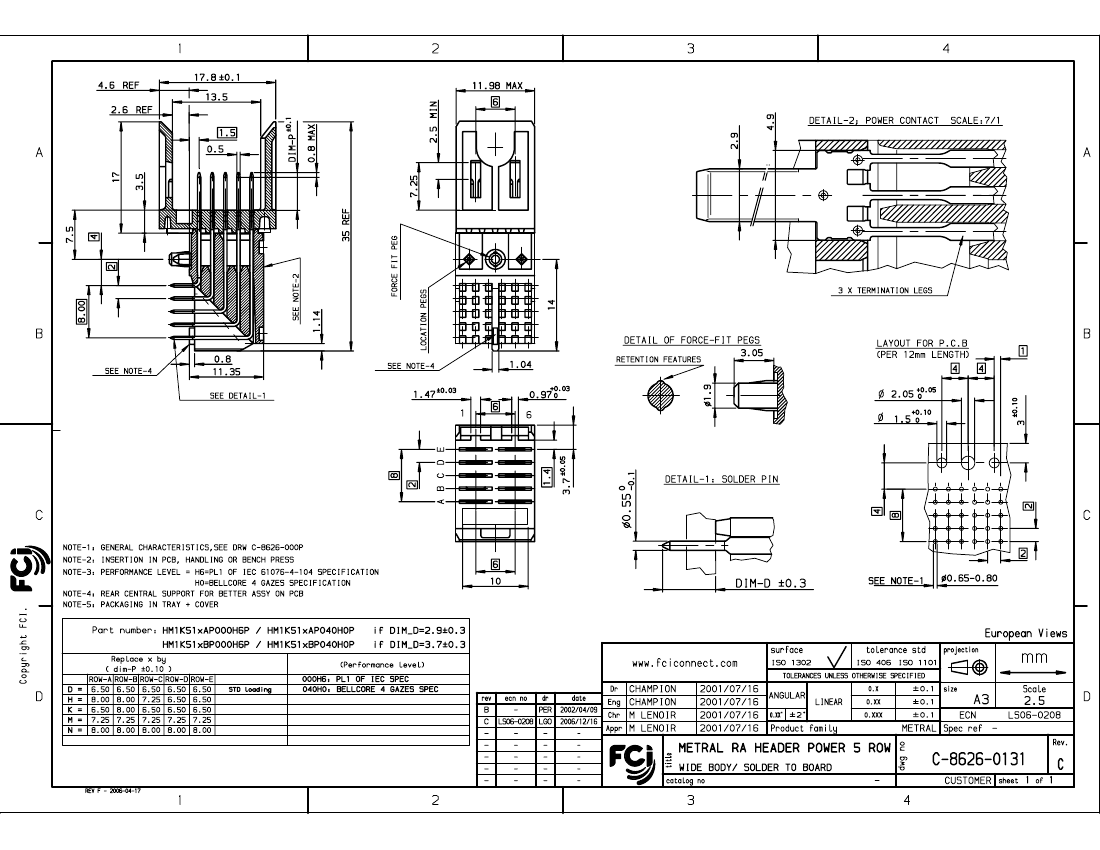

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Feb 23, 2007

HM1K51NBP040H0P Related Products

	HM1K51NBP040H0P	HM1K51HAP040H0P	HM1K51HBP040H0P	HM1K51KAP040H0P	HM1K51KBP040H0P	HM1K51MAP040H0P	HM1K51MBP040H0P	HM1K51DAP040H0P	HM1K51DBP040H0P	HM1K51NAP040H0P
Description	Board Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Male, Right Angle, 0.236 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	SOLDER, TRAY PACKAGING	SOLDER, TRAY PACKAGING	SOLDER, TRAY PACKAGING	SOLDER, TRAY PACKAGING	SOLDER, TRAY PACKAGING	SOLDER, TRAY PACKAGING	SOLDER, TRAY PACKAGING	SOLDER, TRAY PACKAGING	SOLDER, TRAY PACKAGING	SOLDER, TRAY PACKAGING
body width	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch
subject depth	1.378 inch	1.378 inch	1.378 inch	1.378 inch	1.378 inch	1.378 inch	1.378 inch	1.378 inch	1.378 inch	1.378 inch
body length	0.472 inch	0.472 inch	0.472 inch	0.472 inch	0.472 inch	0.472 inch	0.472 inch	0.472 inch	0.472 inch	0.472 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	53.376 N	53.376 N	53.376 N	53.376 N	53.376 N	53.376 N	53.376 N	53.376 N	53.376 N	53.376 N
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	HM1	HM1	HM1	HM1	HM1	HM1	HM1	HM1	HM1	HM1
Plug contact pitch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	5	5	5	5	5	5	5	5	5	5
Number of rows loaded	5	5	5	5	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
polarization key	POLARIZING PEG	POLARIZING PEG	POLARIZING PEG	POLARIZING PEG	POLARIZING PEG	POLARIZING PEG	POLARIZING PEG	POLARIZING PEG	POLARIZING PEG	POLARIZING PEG
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.146 inch	0.114 inch	0.146 inch	0.114 inch	0.146 inch	0.114 inch	0.146 inch	0.114 inch	0.146 inch	0.114 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	30	30	30	30	30	30	30	30	30	30
Base Number Matches	1	1	1	1	1	1	1	-	-	-
