MDMA-1508: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, MODULE-9; CategoryPower/power management The power supply circuit; File Size137KB，3 Pages; ManufacturerAstrodyne TDI

Download Datasheet Parametric Compare View All

MDMA-1508 Overview

DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, MODULE-9

MDMA-1508 Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	MODULE-9
Contacts	9
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	12V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V
Minimum input voltage	90 V
Nominal input voltage	100 V
JESD-30 code	R-XDMA-P9
length	69.9 mm
Number of functions	1
Output times	2
Number of terminals	9
Maximum output voltage	5.3 V
Minimum output voltage	4.7 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Maximum seat height	23.75 mm
surface mount	NO
technology	HYBRID
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	15 W
Fine-tuning/adjustable output	YES
width	48 mm
Base Number Matches	1

Preview

Download Datasheet

View All

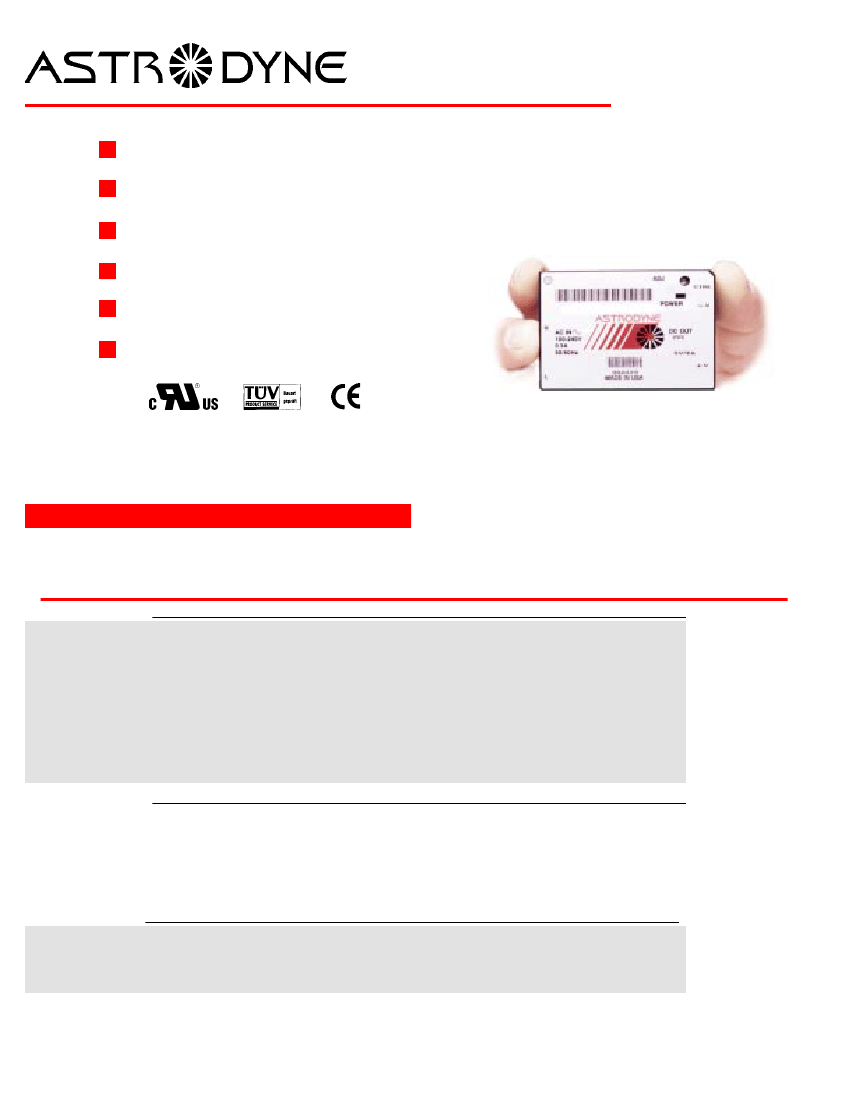

15 WATT

Ultraminiature

Modular Switching Power Supplies

Single / Dual / Triple Outputs

Universal 85VAC to 265VAC Input

3.3VDC to 24VDC Outputs

4,000VAC Input to Output Isolation

PCB and Chassis Mount Packages

Full Safety Approvals

Medically Approved

MMA-15 Series

Fully Approved

IEC-950, EN60950, UL1950

CSA22.2-950

EN601-1, UL2601

UL File# E167432, TUV File# B 95 08 22749 003

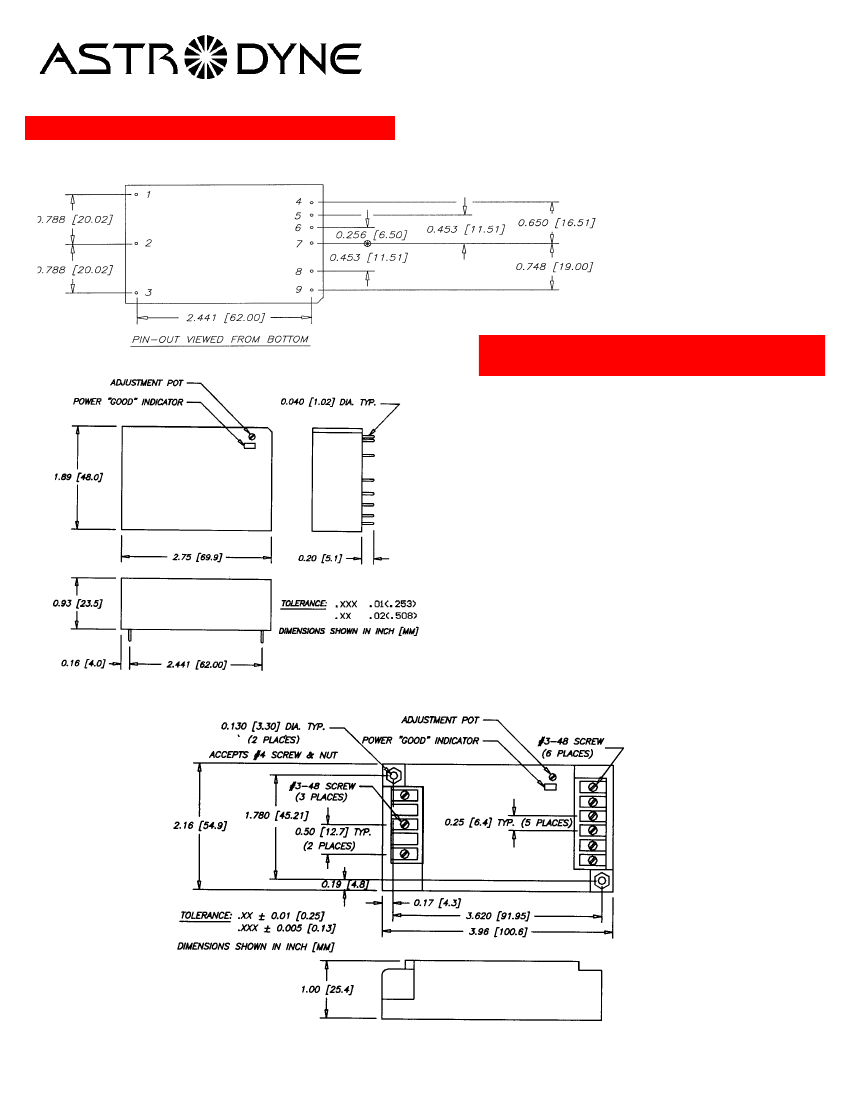

As Small As 2.75”L x 1.89”W x 0.93”H

MODEL SELECTIONS

Output

Voltage

Output

Amps/Watts

Size, (inches)

(PCB, CHASSIS)

Model

Number

Price

SINGLE OUTPUT

3.3 VDC

3.5/12W

5 VDC

12 VDC

15 VDC

24 VDC

3/15W

1.25/15W

1/15W

0.63/15W

(PCB)

2.75 x 1.89 x 0.93

(CHA)

3.96 x 2.16 x 1

(PCB)

2.75 x 1.89 x 0.93

(CHA)

3.96 x 2.16 x 1

(PCB)

2.75 x 1.89 x 0.93

(CHA)

3.96 x 2.16 x 1

(PCB)

2.75 x 1.89 x 0.93

(CHA)

3.96 x 2.16 x 1

(PCB)

2.75 x 1.89 x 0.93

(CHA)

3.96 x 2.16 x 1

MSMA-1500

MSMC-1500

MSMA-1501

MSMC-1501

MSMA-1502

MSMC-1502

MSMA-1503

MSMC-1503

MSMA-1505

MSMC-1505

$93

$104

$93

$104

$93

$104

$93

$104

$93

$104

$89

$99

$89

$99

$89

$99

$89

$99

$89

$99

DUAL OUTPUT

+/-12 VDC

+/-0.63/15W

+/-15 VDC

+5/12 VDC

+/-0.5/15W

1.5/0.63/15W

for

High Volume

Pricing

(PCB)

2.75 x 1.89 x 0.93

(CHA)

3.96 x 2.16 x 1

(PCB)

2.75 x 1.89 x 0.93

(CHA)

3.96 x 2.16 x 1

(PCB)

2.75 x 1.89 x 0.93

(CHA)

3.96 x 2.16 x 1

MDMA-1506

MDMC-1506

MDMA-1507

MDMC-1507

MDMA-1508

MDMC-1508

$100

$110

$100

$110

$100

$110

$95

$105

$95

$105

$95

$105

TRIPLE OUTPUT

+5,+/-12 VDC

2.5,0.1/0.1/15W

(PCB)

2.75 x 1.89 x 0.93

(CHA)

3.96 x 2.16 x 1

+5,+/-15 VDC

2.5,0.1/0.1/15W

(PCB)

2.75 x 1.89 x 0.93

(CHA)

3.96 x 2.16 x 1

MTMA-1509

MTMC-1509

MTMA-1511

MTMC-1511

$106

$117

$106

$117

$101

$110

$101

$110

300 Myles Standish Blvd., Taunton, MA 02780

Ph: 1-800-823-8082 Fax: 508-823-8181

MDMA-1508 Related Products

	MDMA-1508	MDMA-1506	MDMA-1507	MDMC-1507	MTMA-1509	MTMA-1511	MTMC-1509	MTMC-1511	MDMC-1508
Description	DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, MODULE-9	DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, MODULE-9	DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, MODULE-9	DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, MODULE-9	DC-DC Regulated Power Supply Module, 3 Output, 15W, Hybrid, MODULE-9	DC-DC Regulated Power Supply Module, 3 Output, 15W, Hybrid, MODULE-9	DC-DC Regulated Power Supply Module, 3 Output, 15W, Hybrid, MODULE-9	DC-DC Regulated Power Supply Module, 3 Output, 15W, Hybrid, MODULE-9	DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, MODULE-9
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	MODULE-9	MODULE-9	MODULE-9	MODULE-9	MODULE-9	MODULE-9	MODULE-9	MODULE-9	MODULE-9
Contacts	9	9	9	9	9	9	9	9	9
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	12V ADDITIONAL OUTPUT AVAILABLE	-12V ADDITIONAL OUTPUT AVAILABLE	-15V ADDITIONAL OUTPUT AVAILABLE	-15V ADDITIONAL OUTPUT AVAILABLE	+/-12V ADDITIONAL OUTPUT AVAILABLE	+/-15V ADDITIONAL OUTPUT AVAILABLE	+/-12V ADDITIONAL OUTPUT AVAILABLE	+/-15V ADDITIONAL OUTPUT AVAILABLE	12V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V	264 V	264 V	264 V	264 V	264 V	264 V	264 V	264 V
Minimum input voltage	90 V	90 V	90 V	90 V	90 V	90 V	90 V	90 V	90 V
Nominal input voltage	100 V	100 V	100 V	100 V	100 V	100 V	100 V	100 V	100 V
JESD-30 code	R-XDMA-P9	R-XDMA-P9	R-XDMA-P9	R-PDMA-P9	R-XDMA-P9	R-XDMA-P9	R-PDMA-P9	R-PDMA-P9	R-PDMA-P9
length	69.9 mm	69.9 mm	69.9 mm	100 mm	69.9 mm	69.9 mm	100 mm	100 mm	100 mm
Number of functions	1	1	1	1	1	1	1	1	1
Output times	2	2	2	2	3	3	3	3	2
Number of terminals	9	9	9	9	9	9	9	9	9
Maximum output voltage	5.3 V	12.72 V	15.9 V	15.9 V	5.3 V	5.3 V	5.3 V	5.3 V	5.3 V
Minimum output voltage	4.7 V	11.28 V	14.1 V	14.1 V	4.7 V	4.7 V	4.7 V	4.7 V	4.7 V
Nominal output voltage	5 V	12 V	15 V	15 V	5 V	5 V	5 V	5 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Maximum seat height	23.75 mm	23.75 mm	23.75 mm	25.65 mm	23.75 mm	23.75 mm	25.65 mm	25.65 mm	25.65 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	15 W	15 W	15 W	15 W	15 W	15 W	15 W	15 W	15 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES	YES	YES
width	48 mm	48 mm	48 mm	-	48 mm	48 mm	-	-	-
Maker	-	-	-	-	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI
