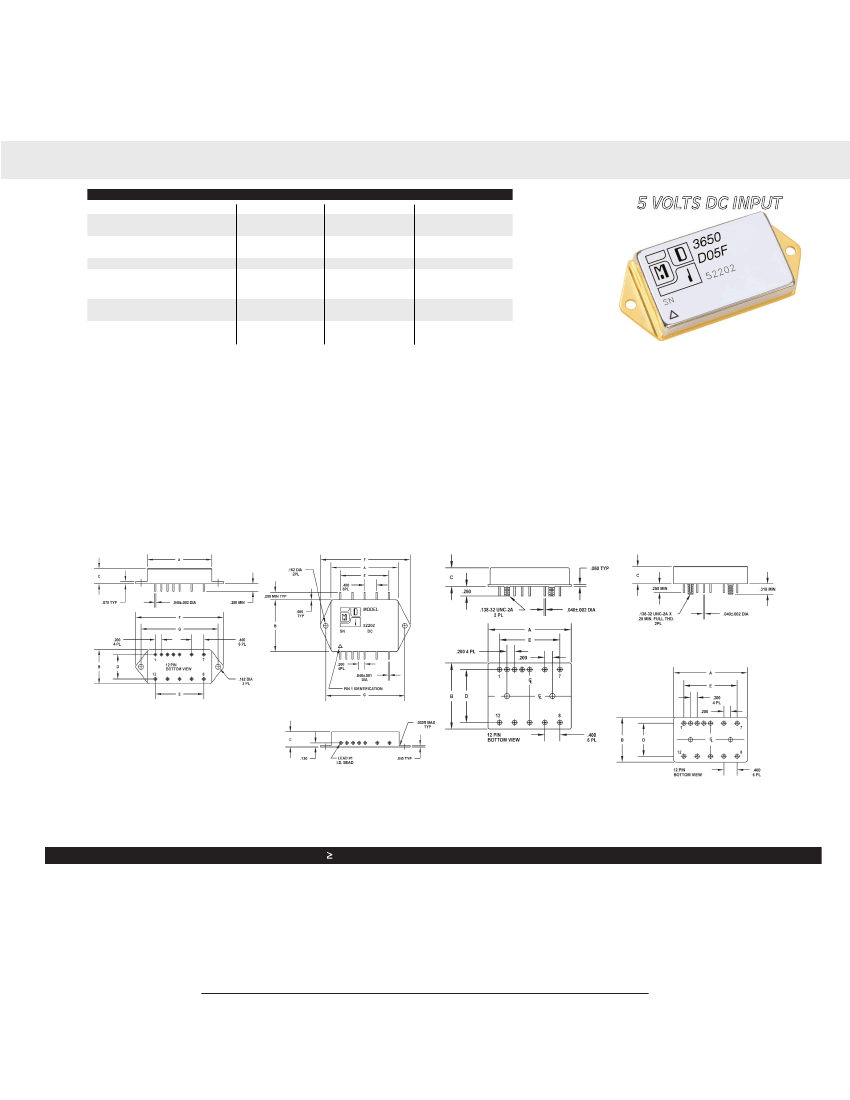

Series 3650

8 - 20 Watt Low Input Voltage Converters

5 VOLTS DC INPUT

SINGLE OUTPUT CONVERTERS

PARAMETER

Output voltage

Output current

Efficiency

Line regulation

Load regulation

Output ripple

CONDITION

—

Vin min — Vin max

Pout = max rated load

Vin min — Vin max

Pout = 10% to F.L.

F.L. BW 2 MHz

mVpp

CONDITION

—

Vin min — Vin max

Pout = max rated load

Vin min — Vin max

Pout = 10% to F.L.

F.L. BW 2 MHz

3650-S02 (8W)

MIN

+1.9

—

56%

—

TYP

+2.0

—

59%

10mV

MAX

+2.1

—

30mV

3650-S02.5 (10W)

MIN

+2.4

—

61%

—

TYP

+2.5

—

64%

10mV

3650-S12 (20W)

MIN

+11.9

—

78%

—

TYP

+12.0

—

82%

20mV

MAX

+12.1

1.67A

—

100mV

150

MAX

+2.6

—

30mV

3650-S03.3 (13W)

MIN

+3.2

—

66%

—

TYP

+3.3

—

70%

10mV

3650-S15 (20W)

MIN

+14.9

—

79%

—

TYP

+15.0

—

83%

25mV

MAX

+15.1

1.33A

—

125mV

180

MAX

+3.04

—

30mV

3650-S05 (20W)

MIN

+4.9

—

73%

—

TYP

+5.0

—

77%

10mV

3650-S28 (20W)

MIN

+27.8

—

78%

—

TYP

+28.0

—

82%

50mV

150

MAX

+28.2

0.72A

—

250mV

350

MAX

+5.1

—

50mV

Features

• Specifically designed for military or

aerospace applications, with hermetic

package

• Completely self contained DC-DC

converter, needs no external components

• Fully isolated input - output

• “Inhibit-not” function

• Power on soft start

• 300 kHz operation for low ripple and fast

response time

• Built-in common mode and differential

mode EMI filter

• Short circuit protection

• Capability of external sync for switching

frequencies

• Built-in test pin

SINGLE OUTPUT CONVERTERS

PARAMETER

Output voltage

Output current

Efficiency

Line regulation

Load regulation

Output ripple

3650-S05.2 (20W)

MIN

+5.1

—

73%

—

TYP

+5.2

—

77%

10mV

MAX

+5.3

3.85A

—

50mV

mVpp

Specifications

INPUT: 5 VDC nominal

Range: 4.6 to 5.6 VDC continuous

4.75 to 5.6 VDC full power

Survives 10 V transients

ISOLATION:

Input to case:

500 VDC

Input to output: 500 VDC

Output to case: 100 VDC

ENVIRONMENT:

Storage temperature: -55°C to

+150°C

Shock: 50 G's

Acceleration: 500 G's

Vibration: 30 G's

Grades M:

Full Output Power at

Tcase = +85°C

Linearly derates to zero at

Tcase = +115°C

Grades E:

Full Power Output at

Tcase = +125°C

Linearly derates to zero at

Tcase = +135°C

WEIGHT: 75 grams typical

PACKAGE and DIMENSIONS: Many

case styles are available.

Model No.

3650

—

Case Style

Pin Count

Mounting

Solder Sealed Flangeless PCB Mount

Solder Sealed PCB Mount with Flange

Seam Weld Flangeless PCB Mount

Seam Weld PCB Mount with Flange

Seam Weld Chassis Mount with Flange

Solder Sealed Flangeless PCB Stud Mount

Seam Weld PCB Stud Mount

Case Style 2

Case Style 3

Case Style 5

Case Dimensions

Units: inches | millimeters

Case Style

TOLERANCES: Drawings in Inches

All dimensions ±0.01 except F = max, C = +0.01/-0.020 For Custom Packages, Contact Factory

1.350 | 34.290

1.710 | 43.434

1.350 | 34.290

0.495 | 12.573

1.000 | 25.400

—|—

1.000 | 25.400

1.600 | 40.640

—|—

2.960 | 75.184

—|—

2.960 | 75.184

—|—

2.610 | 66.294

—|—

2.610 | 66.294

—|—

2.200 | 55.880

2.225 | 56.515

Modular Devices, Inc •

One Roned Road

•

Shirley, New York 11967

•

E-mail sales@mdipower.com

•

Fax 631.345.3106

• Tel 631.345.3100

Page 1 of 2

Revised 2011-09-20
