UPD75P108BCW datasheet, PDF - EEWORLD Datasheet

UPD75P108BCW: DescriptionMicrocontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PDIP64, PLASTIC, SDIP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，52 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric View All

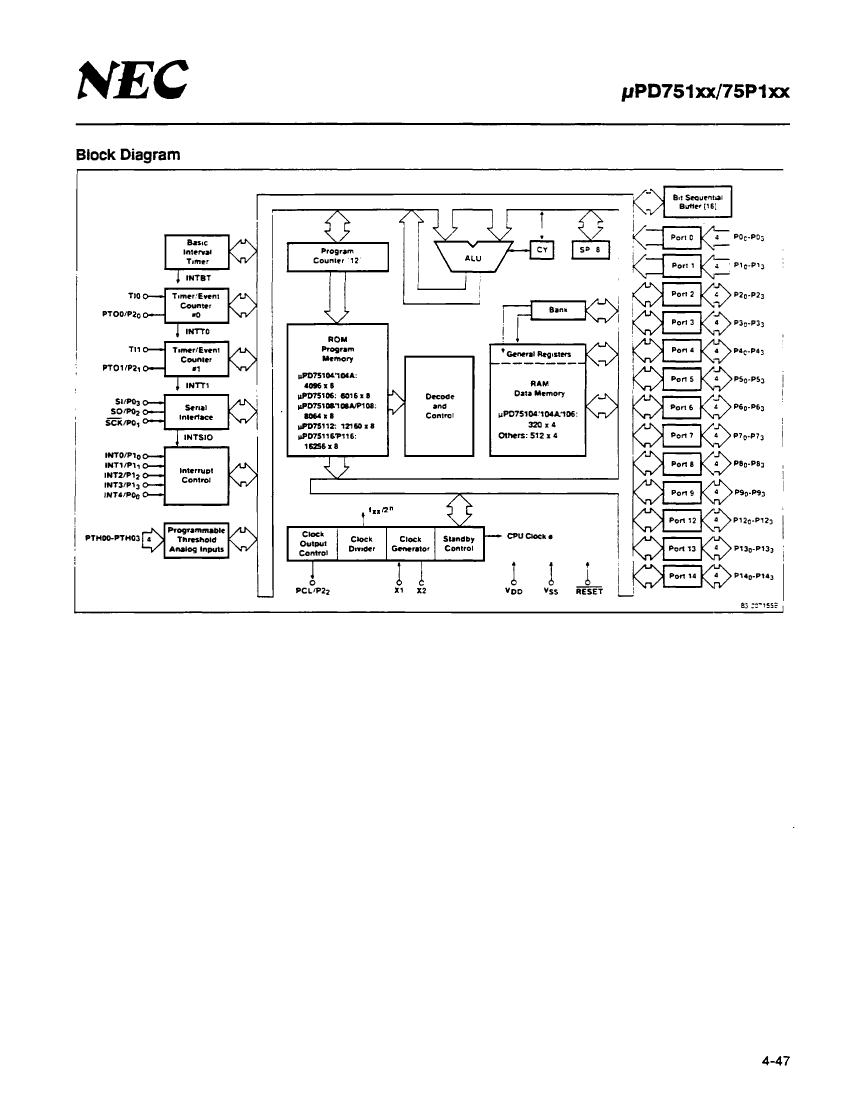

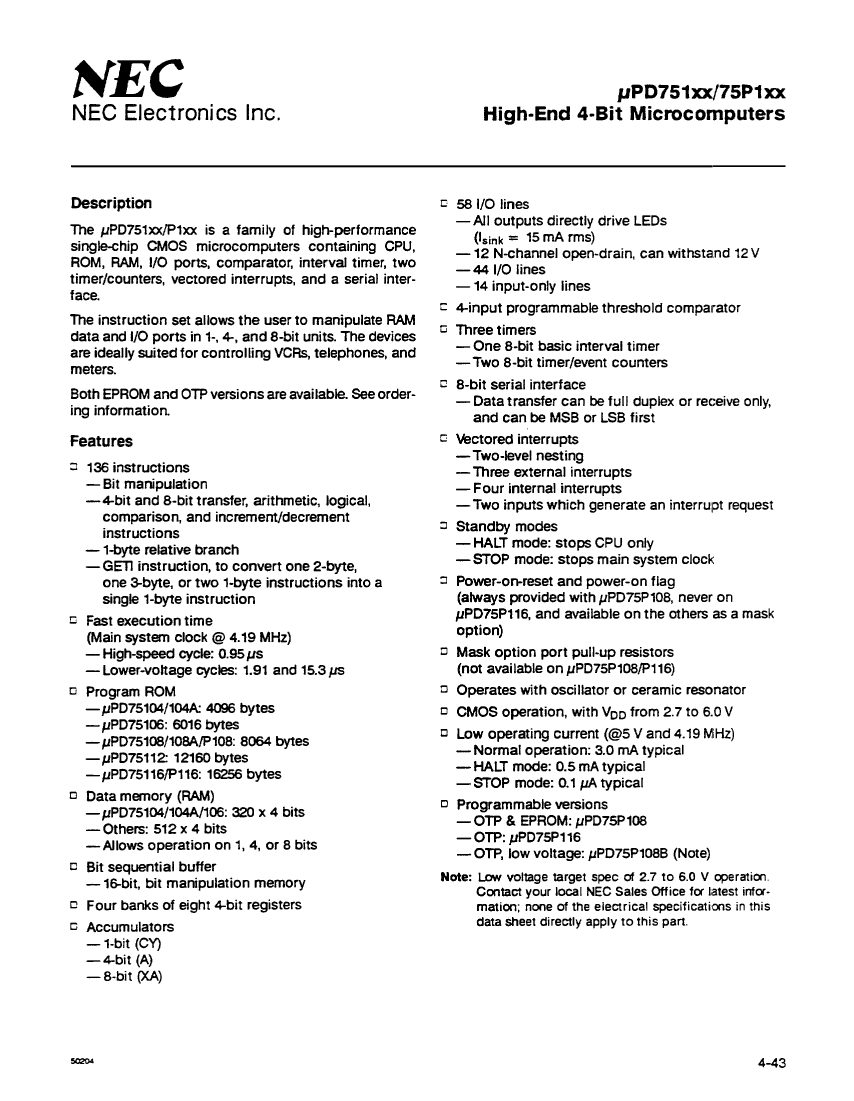

UPD75P108BCW Overview

Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PDIP64, PLASTIC, SDIP-64

Parameter Name	Attribute value

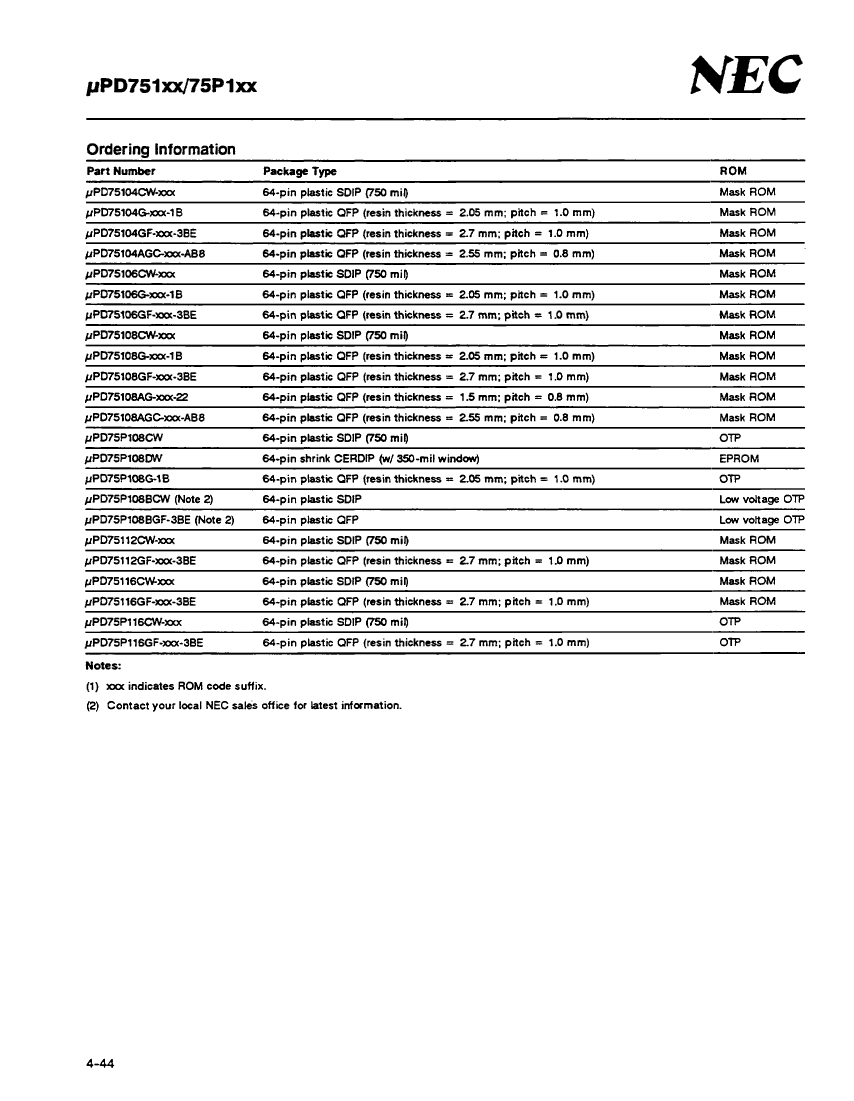

package instruction	PLASTIC, SDIP-64
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	5 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T64
length	57.655 mm
Number of I/O lines	58

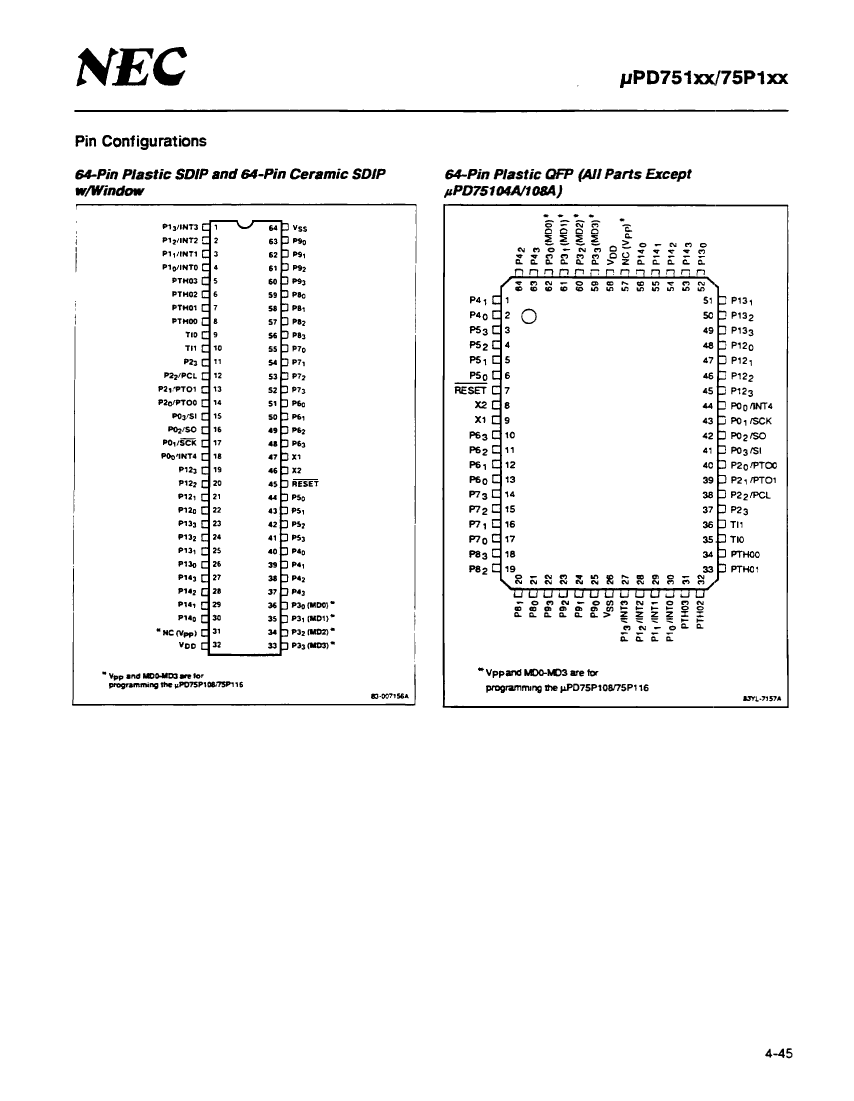

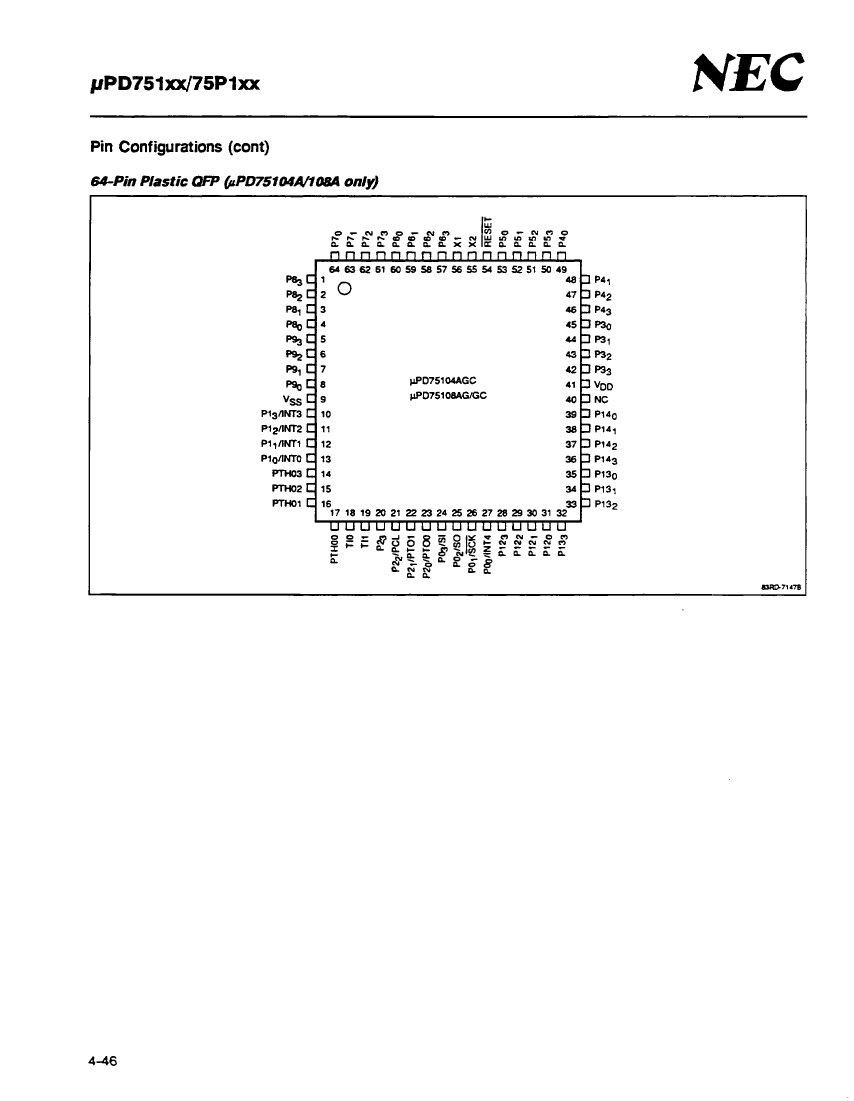

Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	5.08 mm
speed	4.19 MHz
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
