ZXCL Series
MICROPOWER SC70-5 & SOT23-5 LOW DROPOUT REGULATORS
ZXCL5213V25, ZXCL5213V26, ZXCL5213V28, ZXCL5213V30, ZXCL5213V33, ZXCL5213V40
ZXCL250, ZXCL260, ZXCL280, ZXCL300, ZXCL330, ZXCL400
DESCRIPTION
The ZXCL series have been designed with space
sensitive systems in mind. They are available in the
ultra small SC70-5 package, which is half the size of
other SOT23 based regulators.
The devices can be used with all types of output
capacitors including low ESR ceramics and typical
dropout voltage, is only 85mV at 50mA load. Supply
current is minimised with a ground pin current of only
50 A at full 150mA load. Logic control allows the
devices to be shut down, consuming typically less than
10nA. These features make the device ideal for battery
powered applications where power economy is
critical.
For applications requiring improved performance over
alternative devices, the ZXCL is also offered in the 5 pin
SOT23 package with an industry standard pinout.
The devices feature thermal overload and over-current
protection and are available with output voltages of
2.5V, 2.6V, 2.8V, 3V, 3.3V and 4V. Other voltage options
between 1.5V and 4V can be provided. Contact Zetex
marketing for further information.
The ZXCL series are manufactured using CMOS
processing, however advanced design techniques
mean that output noise is improved even when
compared to other bipolar devices.
FEATURES
•
5-pin SC70 package for the ultimate in space
saving
APPLICATIONS
•
Cellular and Cordless phones
•
Palmtop and laptop computers
•
PDA
•
Hand held instruments
•
Camera, Camcorder, Personal Stereo
•
PCMCIA cards
•
Portable and Battery-powered equipment
No-Load Stability,
the ZXCL device will maintain regulation and is stable
with no external load. e.g. CMOS RAM applacations.
•
5-pin SOT23 industry standard pinout
•
Can be used with all types of output capacitor
•
Low 85mV dropout at 50mA load
•
50 A ground pin current with full 150mA load
•
Typically less than 10nA ground pin current on
shutdown
•
2.5, 2.6, 2.8, 3, 3.3 and 4 volts output
•
Very low noise, without bypass capacitor
•
Thermal overload and over-current protection
•
-40 to +85°C operating temperature range
•
No-load stable
TYPICAL APPLICATION CIRCUIT
PACKAGE FOOTPRINT
ISSUE 7 - AUGUST 2002
1
ZXCL Series
ABSOLUTE MAXIMUM RATINGS
Terminal Voltage with respect to GND
V
IN
E
N
V
O
-0.3V to 7.0V
-0.3V to 10V
-0.3V to 5.5V
Output short circuit duration
Continuous Power Dissipation
Operating Temperature Range
Storage Temperature Range
Infinite
Internally limited
-40°C to +85°C
-55°C to +125°C
Package Power Dissipation (T
A
=25°C)
SC70-5
SOT23-5
300mW (Note 1)
450mW (Note 1)
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device.
These are stress ratings only, and functional operation of the device at these or any other conditions beyond
those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum
conditions for extended periods may affect device reliability.

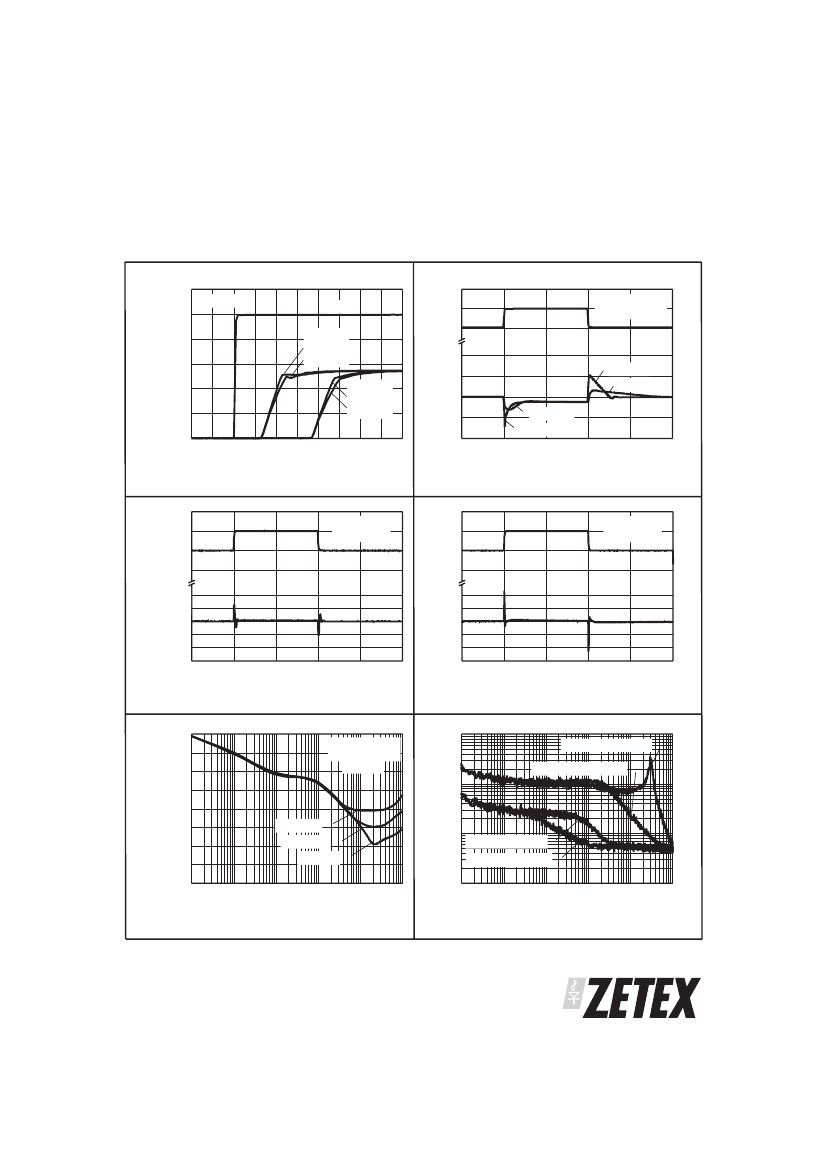

ELECTRICAL CHARACTERISTICS
V
IN
= V
O
+ 0.5V, all values at T
A
= 25 C
(Unless otherwise stated)
SYMBOL
V
IN
V
O
PARAMETER
Input Voltage
Output Voltage
CONDITIONS
MIN
(note2)
I
O
= 1mA
ZXCL250 / 5213V25
ZXCL260 / 5213V26
ZXCL280 / 5213V28
ZXCL300 / 5213V30
ZXCL330 / 5213V33
ZXCL400 / 5213V40
I
O
= 100mA
V
O
+ 0.5V < V
IN
< V
IN
max.
ZXCL250 / 5213V25
ZXCL260 / 5213V26
ZXCL280 / 5213V28
ZXCL300 / 5213V30
ZXCL330 / 5213V33
ZXCL400 / 5213V40
2.450
2.548
2.744
2.940
3.234
3.920
2.425
2.522
2.744
2.910
3.201
3.880
LIMITS
TYP
MAX
5.5
2.5
2.6
2.8
3.0
3.3
4.0
2.550
2.652
2.856
3.060
3.366
4.080
2.575
2.678
2.884
3.090
3.399
4.120
-15
UNITS
V
V
V
ppm/°C
∆V
O
/∆T
Output Voltage
Temperature
Coefficient
Output Current
Over Current Limit
Ground pin current
ZXCL250 / 5213V25 only
ZXCL250 / 5213V25 only
No Load
I
O
= 150mA,
I
O
= 100mA,
150
100
160
105
I
O(MAX)
I
OLIM
I
Q
mA
230
25
50
40
800
750
50
120
100
mA
A
A
A
ISSUE 7 - AUGUST 2002
2
