ZMV832ATA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ZMV832ATA

ZMV832ATA: DescriptionVariable Capacitance Diode, 22pF C(T), 25V, Silicon, Hyperabrupt, MINIATURE PACKAGE-2; CategoryDiscrete semiconductor diode; File Size139KB，6 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ZMV832ATA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZMV832ATA	-	-	View	Buy Now

ZMV832ATA Overview

Variable Capacitance Diode, 22pF C(T), 25V, Silicon, Hyperabrupt, MINIATURE PACKAGE-2

ZMV832ATA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	MINIATURE PACKAGE-2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW NOISE
Minimum breakdown voltage	25 V
Configuration	SINGLE
Diode Capacitance Tolerance	10%
Minimum diode capacitance ratio	5
Nominal diode capacitance	22 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.33 W
Certification status	Not Qualified
minimum quality factor	200
Maximum repetitive peak reverse voltage	25 V
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Varactor Diode Classification	HYPERABRUPT
Base Number Matches	1

Preview

Download Datasheet

View All

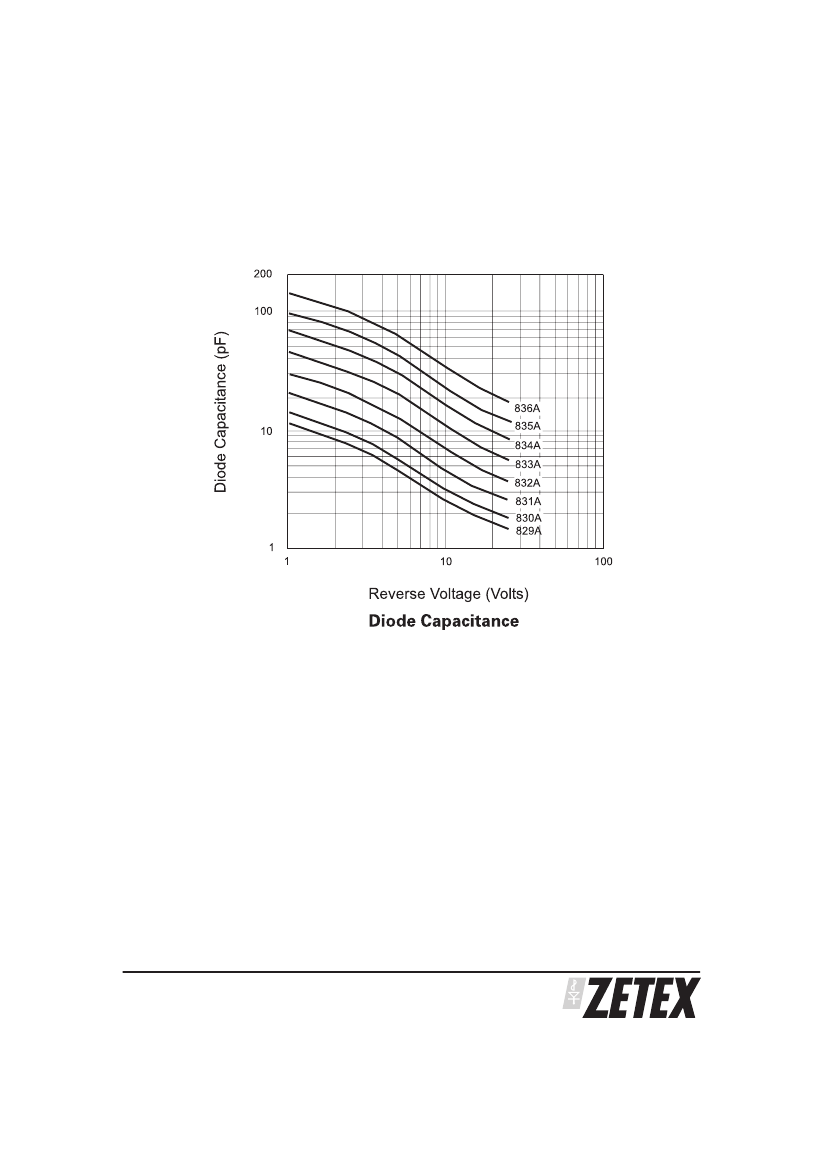

830 series

SILICON 28V HYPERABRUPT VARACTOR DIODES

ZC829, ZDC833, ZMV829, ZMDC830, ZV831 Series

Device Description

A range of silicon varactor diodes for use in frequency control and

filtering. Featuring closely controlled CV characteristics and high

Q. Low reverse current ensures very low phase noise

performance. Available in single or dual common cathode format

in a wide rage of miniature surface mount packages.

Features

Close tolerance C-V characteristics

High tuning ratio

Low I

(typically 200pA)

Excellent phase noise performance

High Q

Range of miniature surface mount packages

Applications

VCXO and TCXO

Wireless communications

Pagers

Mobile radio

*Where steeper CV slopes are required there is the 12V hyperabrupt range.

ZC930, ZMV930, ZV930, ZV931 Series

ISSUE 6 - JANUARY 2002

ZMV832ATA Related Products

	ZMV832ATA	ZC836ATA	ZC834ATA
Description	Variable Capacitance Diode, 22pF C(T), 25V, Silicon, Hyperabrupt, MINIATURE PACKAGE-2	Variable Capacitance Diode, 100pF C(T), 25V, Silicon, Hyperabrupt, MINIATURE PACKAGE-3	Variable Capacitance Diode, 47pF C(T), 25V, Silicon, Hyperabrupt, MINIATURE PACKAGE-3
Is it Rohs certified?	conform to	conform to	conform to
package instruction	MINIATURE PACKAGE-2	MINIATURE PACKAGE-3	MINIATURE PACKAGE-3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE	LOW NOISE
Minimum breakdown voltage	25 V	25 V	25 V
Configuration	SINGLE	SINGLE	SINGLE
Diode Capacitance Tolerance	10%	10%	10%
Minimum diode capacitance ratio	5	5	5
Nominal diode capacitance	22 pF	100 pF	47 pF
Diode component materials	SILICON	SILICON	SILICON
Diode type	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G2	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3	e3
Humidity sensitivity level	1	1	1
Number of components	1	1	1
Number of terminals	2	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260
Maximum power dissipation	0.33 W	0.33 W	0.33 W
Certification status	Not Qualified	Not Qualified	Not Qualified
minimum quality factor	200	100	200
Maximum repetitive peak reverse voltage	25 V	25 V	25 V
surface mount	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40
Varactor Diode Classification	HYPERABRUPT	HYPERABRUPT	HYPERABRUPT
Base Number Matches	1	1	1
Maximum operating temperature	-	150 °C	150 °C
Minimum operating temperature	-	-55 °C	-55 °C
Maximum reverse current	-	2e-8 µA	2e-8 µA
Reverse test voltage	-	20 V	20 V
