Model 73016

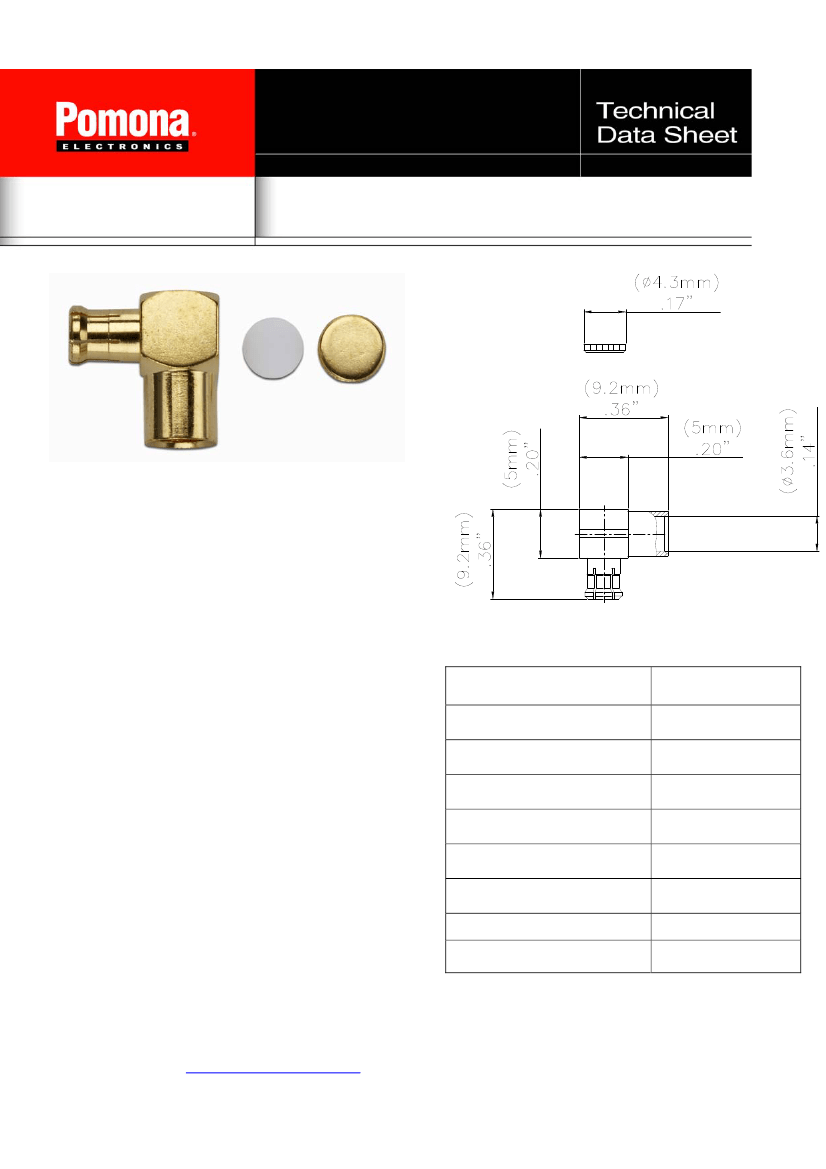

MCX PLUG R/A SEMI-RIGID, RG402

Model

73016 MCX PLUG R/A SEMI-RIGID, RG402

Snap-on coupling and miniature

size for fast connect and

disconnect where space is

limited.

Features

•

DC - 3 GHz bandwidth.

30% smaller than SMB connectors.

Meets CECC 22220.

Perfect for applications where space, weight,

performance and ease of assembly are required.

Precision machined and gold-plated for low loss.

Frequency Range

VSWR

Working Voltage

Dielectric withstand voltage

Center / Outer contact

resistance

Number of insertions

Insulation resistance

Temperature Range

DC - 3 GHz

1.4 max.

170 Vrms max.

750 Vrms

5 / 2.5 mΩ

500 cycles min.

1,000 MΩ min.

-55˚ C to 155˚ C, -67˚

F to 311˚ F

Specifications

Impedance

Ω

Materials

•

Body is machined brass with gold plating.

Center contacts – Plug is gold plated brass and

Jack is gold plated beryllium copper.

High quality PTFE insulators.

Crimp Ferrules are gold or nickel plated copper.

Ordering

Information

Model: 73016

Description: MCX PLUG R/A SEMI-RIGID, RG402

USA:

Sales: 800-490-2361

Technical Support:

technicalsupport@pomonatest.com

Fax: 425-446-5844

Europe:

31-(0) 40 2675 150

International:

425-446-5500

Where to Buy:

www.pomonaelectronics.com

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (.51 mm),

.xxx = ± .005” (.127 mm). All specifications are to the latest revisions.

Specifications are subject to change without notice. Registered trademarks

are the property of their respective companies.

D2003452 REV 001

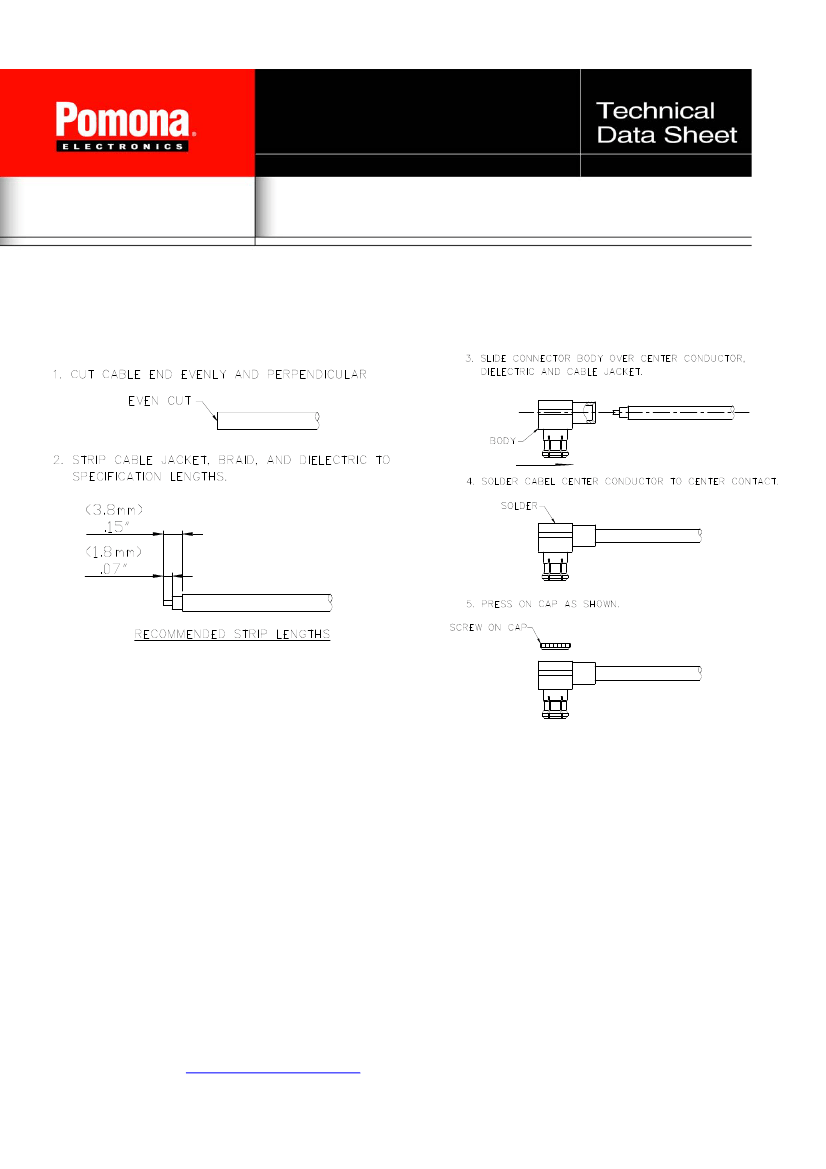

Page 1 of 2
