ADP-0103-08-000-02: DescriptionRF/Microwave Attenuator, 0 MHz - 18000 MHz RF/MICROWAVE FIXED ATTENUATOR, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size93KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

ADP-0103-08-000-02 Overview

RF/Microwave Attenuator, 0 MHz - 18000 MHz RF/MICROWAVE FIXED ATTENUATOR, STAINLESS STEEL

ADP-0103-08-000-02 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	N-F; SMA-M, I/P POWER-MAX (PEAK)=200W
Nominal attenuation	8 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

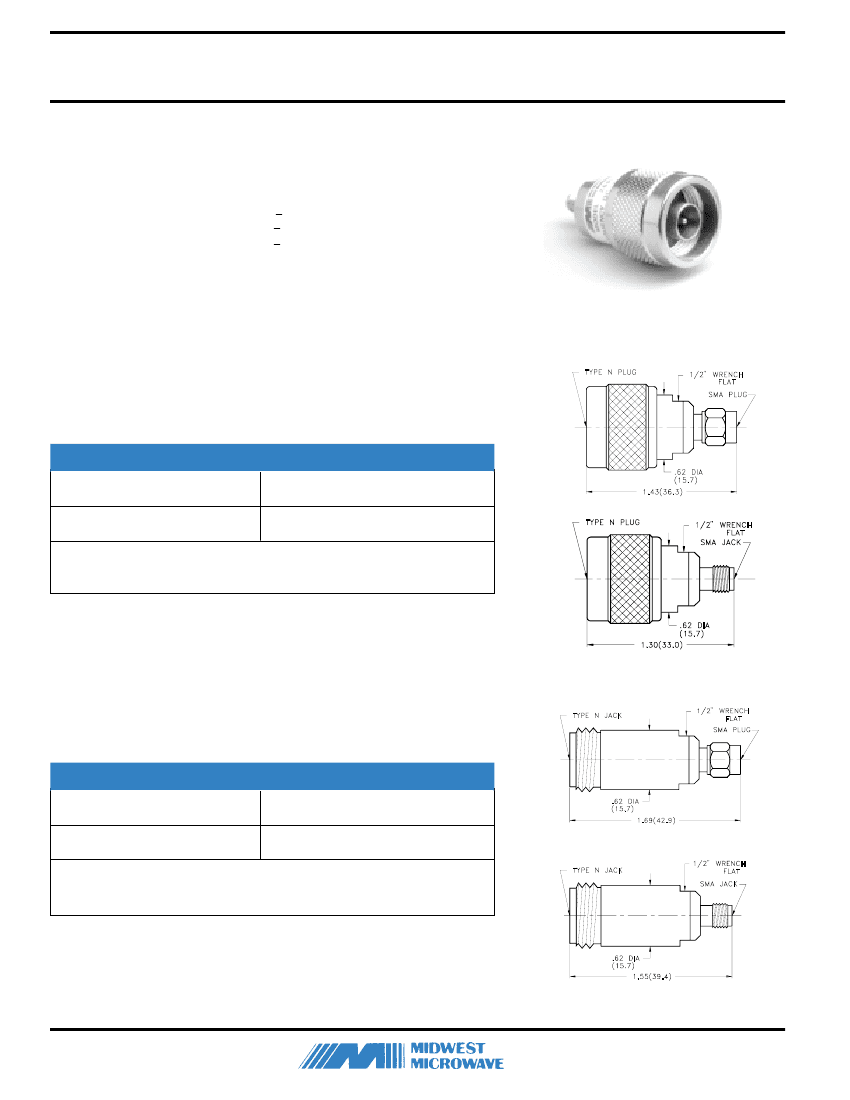

Attenuators

Type N to SMA DC - 18 GHz Performance

Specifications

Frequency:

DC - 18.0 GHz

Attenuation Values:

1 - 30 dB in 1 dB increments

Attenuation Accuracy:

1 - 6 dB

+ 0.3 dB

Impedance:

50 Ohms

VSWR:

1.10@ DC-4, 1.20 @ 4-10, and 1.30 @ 10-18 GHz max

Power:

2 Watts average @ +25

o

C derated linearly to 0.5 Watts @ +125

Peak Power:

0.2 Killowatts

Operating Temperature Range:

-54

o

C to +125

o

C

Finish:

Passivated Stainless Steel

7 - 20 dB

21 - 30 dB

+ 0.5 dB

+ 1.0 dB

Adapter - Pads

o

C

Type N Male to SMA

DC - 18.0 GHz

N Male / SMA Male

ADP-0101-XX-000-02

Type N / SMA

Model Numbers

N Male / SMA Female

ADP-0102-XX-000-02

Attenuation Value = XX, Select 01 -30 dB in 1 dB increments

Precision N / SMA

Type N Female to SMA

DC - 18.0 GHz

Type N / SMA

Model Numbers

N Female / SMA Male

ADP-0103-XX-000-02

N Female / SMA Female

ADP-0104-XX-000-02

Attenuation Value = XX, Select 01 -30 dB in 1 dB increments

Precision N / SMA
