Oscilent Corporation | 712 - 714
Page 1 of 3
Filters
Series Number
Package
Description
Last Modified
712 ~ 714
.
UM-1 / UM-5; 4 Pole
Monolithic Dip Type
Jan. 01 2002
Filter FEATURES
- Low loss
- High stability for wide temperature ranges
- Sharp cut offs
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS / PART NUMBER
GUIDE
GENERAL CHARACTERISTICS
Operating Temperature Range:
-20 ~ 70°C
Mode of
Oscillation:
21.40 ~ 30.875 MHz:
Fundamental
45.0 MHz: 3rd Overtone
Nominal
Frequency
MHz
21.40
21.40
21.40
21.40
21.40
21.40
21.40
21.60
21.60
21.60
21.70
21.70
21.70
21.70
30.875
45.00
45.00
Pass Band
Width
KHz/dB
±3.75/3
±4.0/3
±6.0/3
±7.50/3
±7.50/3
±7.50/3
±15.0/3
±3.75/3
±6.0/3
±7.50/3
±3.75/3
±6.0/3
±7.5/3
±15.0/3
±7.5/3
±7.5/3
±15.0/3
Stop Band
Width
KHz/dB
±14/40
±16/40
±20/40
±25/40
±30/40
±30/40
±50/40
±14/40
±20/40
±25/40
±14/40
±20/40
±25/40
±50/40
±25/40
±25/40
±40/30
Ripple
dB
1.0
1.0
1.0
1.0
1.0
1.5
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Insertion
Loss
dB
2.0
2.0
2.0
2.0
2.0
3.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.5
2.5
2.5
Terminal
Impedance
Rt//Ct[ohm/pF]
850//5
1000//4
1200//2.5
1500//2
1500//2
1500//1
3300//0.5
850//5
1200//2.5
1500//2
850//5
1200//2.5
1500//2
3300//0.5
800//4
650//3
800//1.5
Pole
-
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4

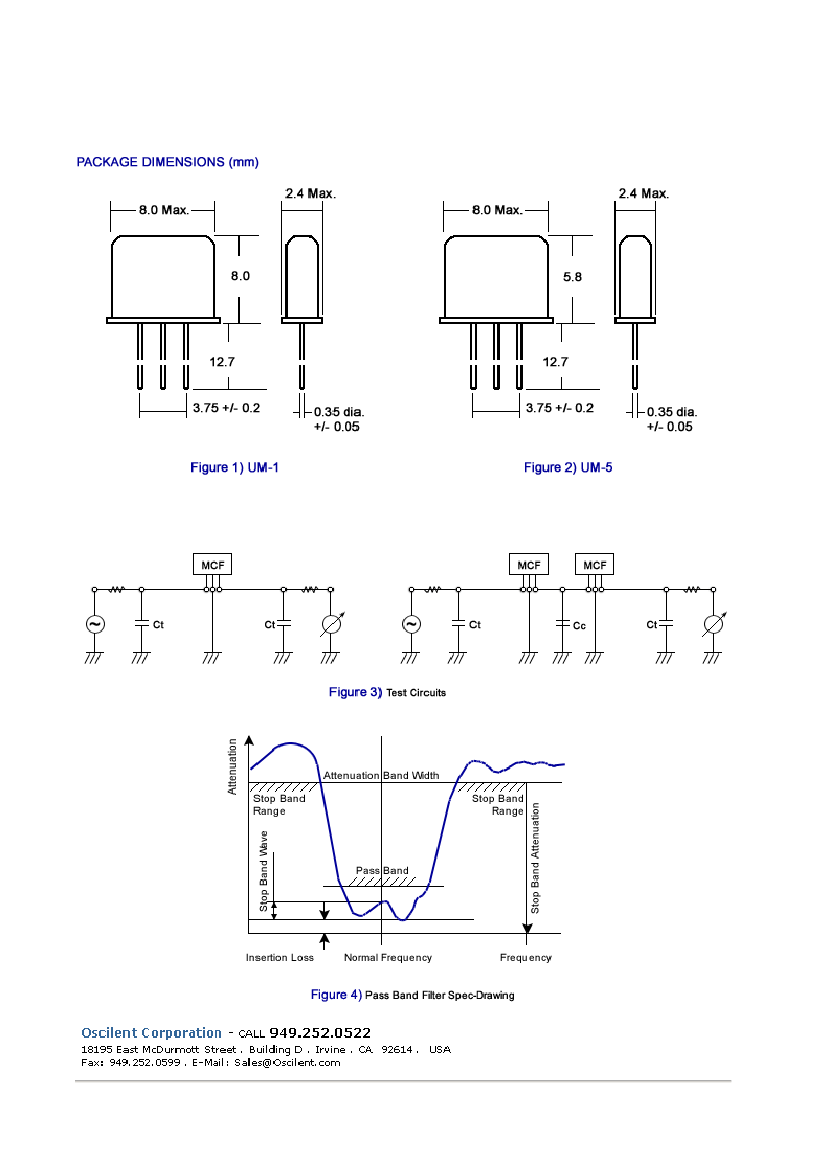

PART NO. (Figure)
UM-1 (1)
712-M07B-1
712-M08B-1
712-M12B-1
712-M15B-1
712-M15B2-1
712-M15B3-1
712-M30B-1
712-P07B-1
712-P12B-1
712-P15B-1
712-T07B-1
712-T12B-1
712-T15B-1
712-T30B-1
713-M15B-1
714-M15B-1
714-M30B-1
UM-5 (2)
712-M07B-5
712-M08B-5
712-M12B-5
712-M15B-5
712-M15B2-5
712-M15B3-5
712-M30B-5
712-P07B-5
712-P12B-5
712-P15B-5
712-T07B-5
712-T12B-5
712-T15B-5
712-T30B-5
713-M15B-5
714-M15B-5
714-M30B-5
NOTE:
Deviations on all parameters available. Please consult Oscilent for details.
DEFINITIONS:
Click on the characteristic names above, for definitions of the particular characteristic.
.
