712-178 - Type A
S
traight, 45° & 90° Non-Environmental User-Installable Fitting
for Series 74 Helical Convoluted Tubing
Series 74
Convoluted
Tubing
712 F S 178 M 16 20 - 6 1
TYPE
A
Do not use with
PEEK convoluted
tubing. See page
D-16, part number
712-360.
Product
Series
Conn. Designator
A, F, H, L, or S
(Pages F-3 to F-5)
Angular Function:
K = 45°
L = 90°
S = Straight
Basic No.
Style 1 or 2
Length in 1/2 inch (12.7)
increments (Example:
6 = 3.0 inches (76.2))
Dash No. (Table III)
Shell Size (Table I)
Finish
(Table II)

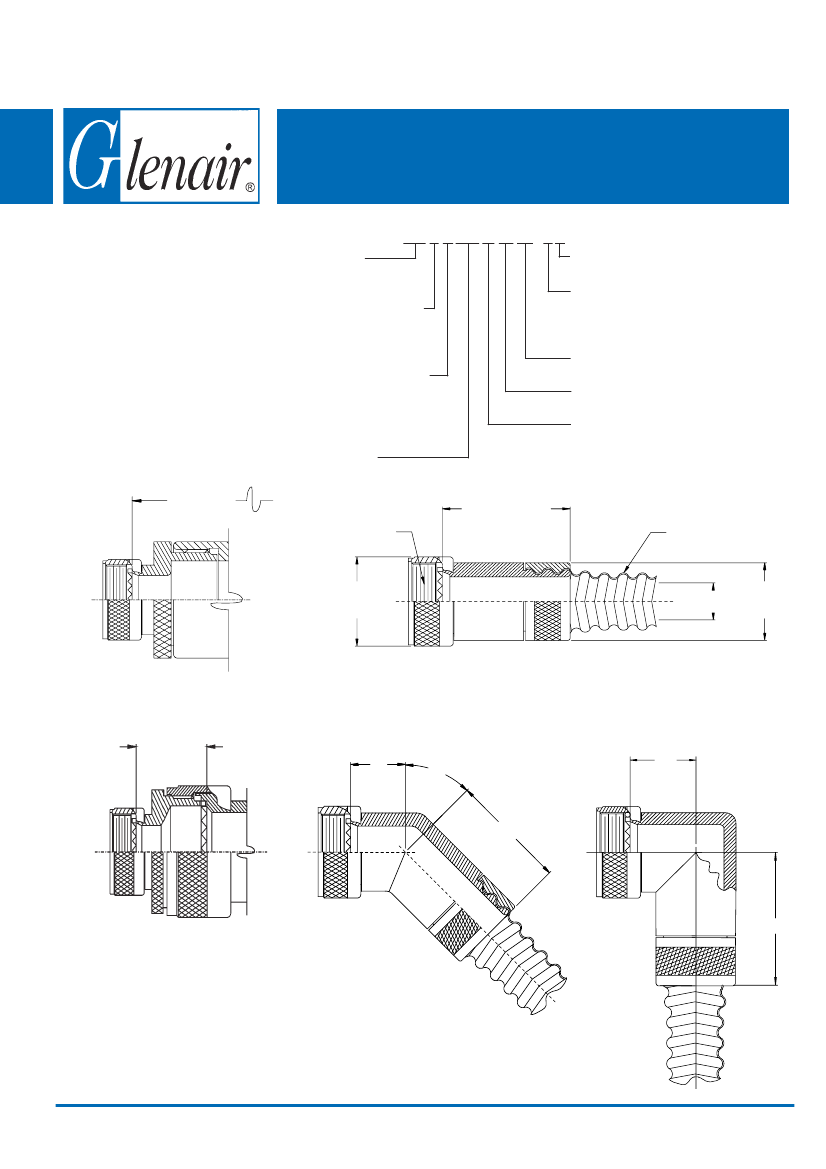

LENGTH
± .060
(1.52)
A THREAD
(Page F-17)
LENGTH
± .060 (1.52)
TUBING
C DIA
(Page F-17)
TUBING I.D.
J
DIA
STYLE 2
STRAIGHT
.880
(22.4)
MAX
STRAIGHT
E
G
45°
F
45°
STYLE 2
45° & 90°
90°
H
© 2003 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-14
Straight, 45° & 90° Non-Environmental User-Installable Fitting
for Series 74 Helical Convoluted Tubing
SHELL SIZE
A,F,L,S
H
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
28
--
32
--
36
--
E
MAX
.639 (16.2)
.664 (16.9)
.688 (17.5)
.705 (17.9)
.732 (18.6)
.748 (19.0)
.773 (19.6)
.800 (20.3)
.823 (20.9)
1.041 (26.4)
1.092 (27.7)
1.138 (28.9)
TABLE I
F
MAX
.950 (24.1)
.980 (24.9)
1.000 (25.4)
1.030 (26.2)
1.050 (26.7)
1.060 (26.9)
1.080 (27.4)
1.120 (28.4)
1.150 (29.2)
1.320 (33.5)
1.360 (34.5)
1.410 (35.8)
G
MAX
.750 (19.1)
.810 (20.6)
.870 (22.1)
.920 (23.4)
.980 (24.9)
1.020 (25.9)
1.080 (27.4)
1.140 (29.0)
1.200 (30.5)
1.480 (37.6)
1.610 (40.9)
1.720 (43.7)
H
MAX
1.060 (26.9)
1.120 (28.4)
1.180 (30.0)
1.250 (31.8)
1.310 (33.3)
1.330 (33.8)
1.390 (35.3)
1.470 (37.3)
1.540 (39.1)
1.780 (45.2)
1.870 (47.5)
1.980 (50.3)
TABLE II
SYMBOL FINISH
B
J
M
N
NC
NF
T
Olive Drab over Cadmium Plate
Gold Iridite over Cadmium Plate over Nickel
Electroless Nickel
Olive Drab over Cadmium Plate over Nickel
Zinc-Cobalt, Olive Drab
Olive Drab over Cadmium Plate over
Electroless Nickel (500 Hour Salt Spray)
Bright Dip Cadmium Plate over Nickel
DASH
NO.
06
09
10
12
14
16
20
24
28
32
40
48
56
64
TABLE III
TUBING I.D.
MIN
MAX
.181 (4.6)
.188 (4.8)
.273 (6.9)
.281 (7.1)
.306 (7.8)
.312 (7.9)
.364 (9.2)
.375 (9.5)
.427 (10.8)
.437 (11.1)
.485 (12.3)
.500 (12.7)
.608 (15.4)
.625 (15.9)
.730 (18.5)
.750 (19.1)
.860 (21.8)
.875 (22.2)
.975 (24.8)
1.000 (25.4)
1.210 (30.7)
1.250 (31.8)
1.437 (36.5)
1.500 (38.1)
1.688 (42.9)
1.750 (44.5)
1.937 (49.2)
2.000 (50.8)
J
MAX
.720 (18.3)
.821 (20.9)
.852 (21.6)
.915 (23.2)
.977 (24.8)
1.040 (26.4)
1.165 (29.6)
1.290 (32.8)
1.415 (35.9)
1.540 (39.1)
1.790 (45.5)
2.040 (51.8)
2.290 (58.2)
2.540 (64.5)
NOTES:
1. When tubing I.D. max exceeds inside diameter of
connector shell, style 2 may be supplied. Refer to
pages F-15 and F-16.
2. Metric dimensions (mm) are in parentheses.
3. Tubing shown for reference only.
© 2003 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-15
