GMS81516TQ datasheet, PDF - EEWORLD Datasheet

GMS81516TQ: DescriptionMicrocontroller, 8-Bit, OTPROM, 8MHz, CMOS, PQFP64,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size273KB，16 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

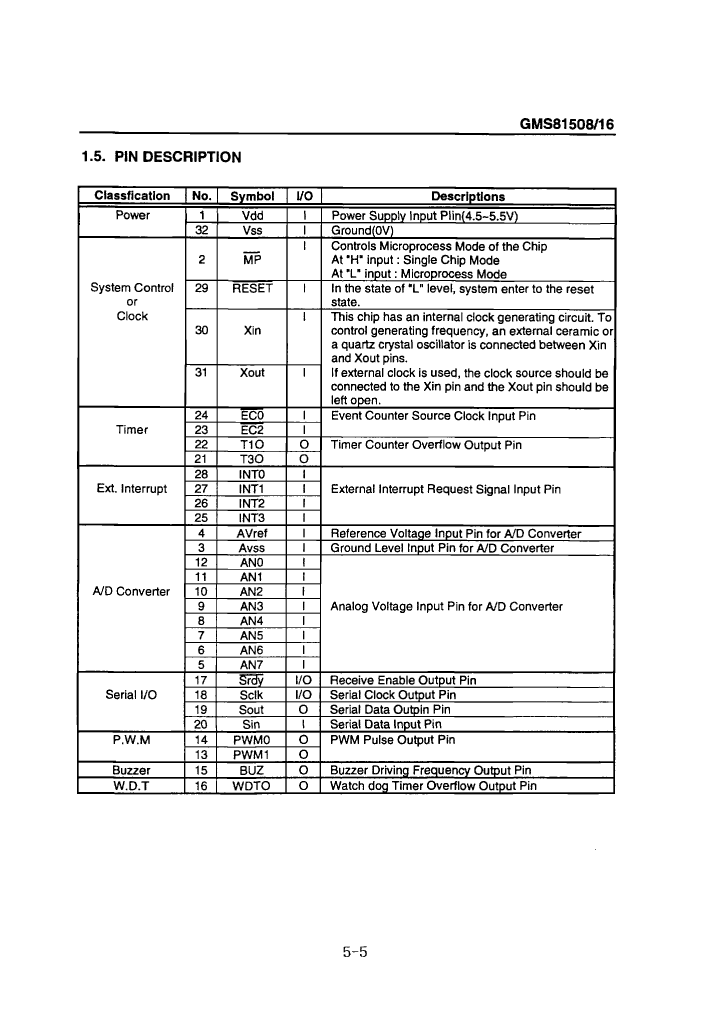

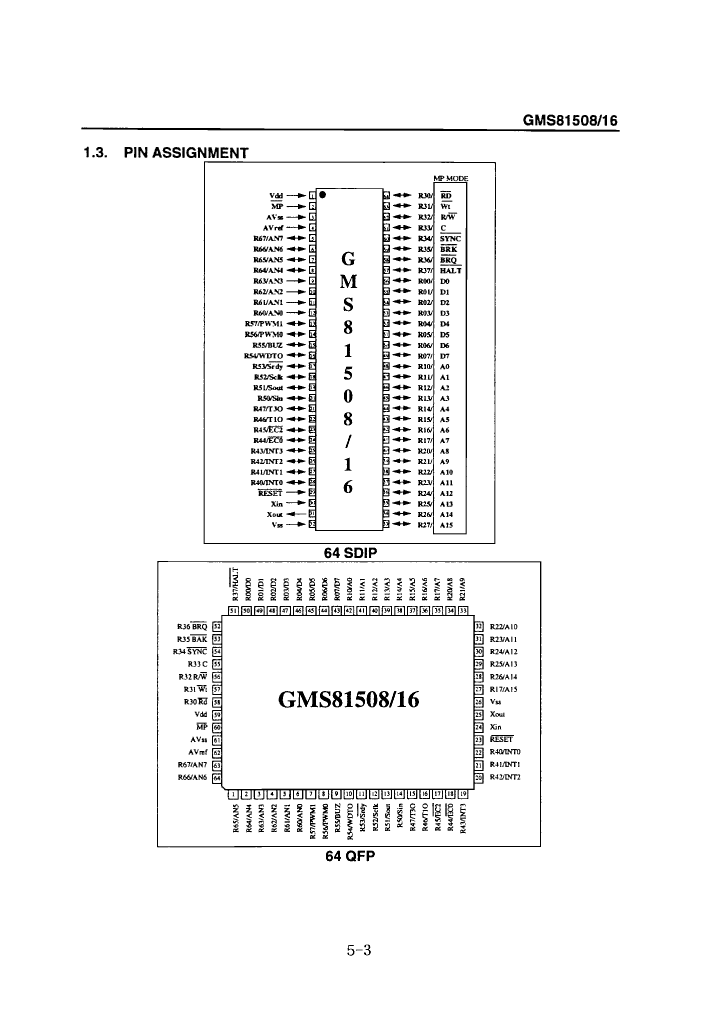

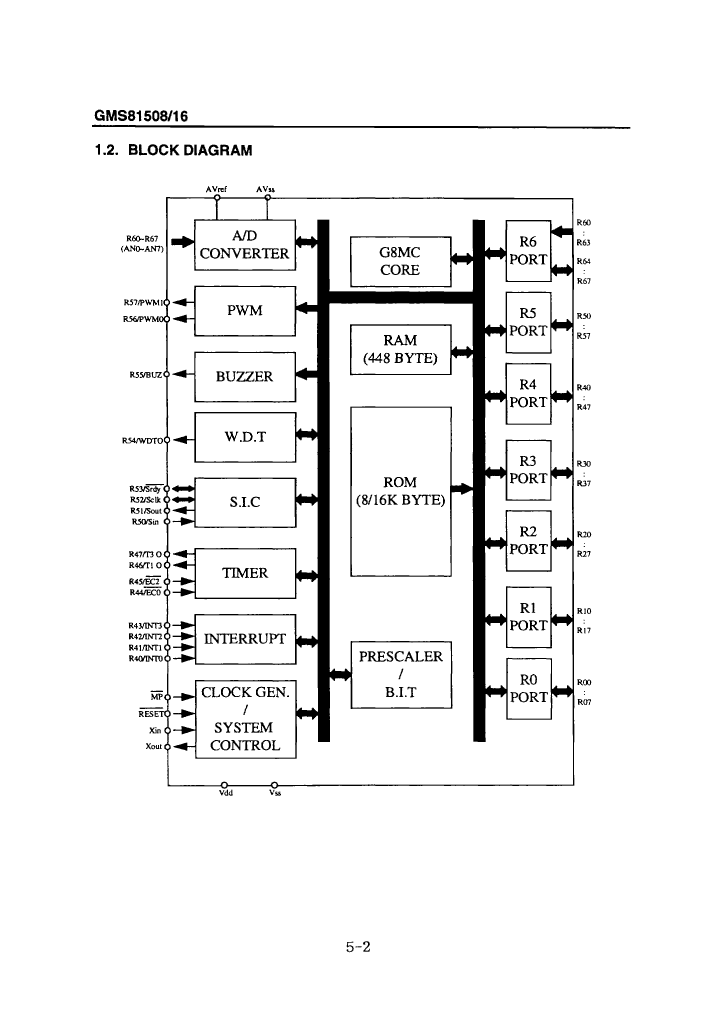

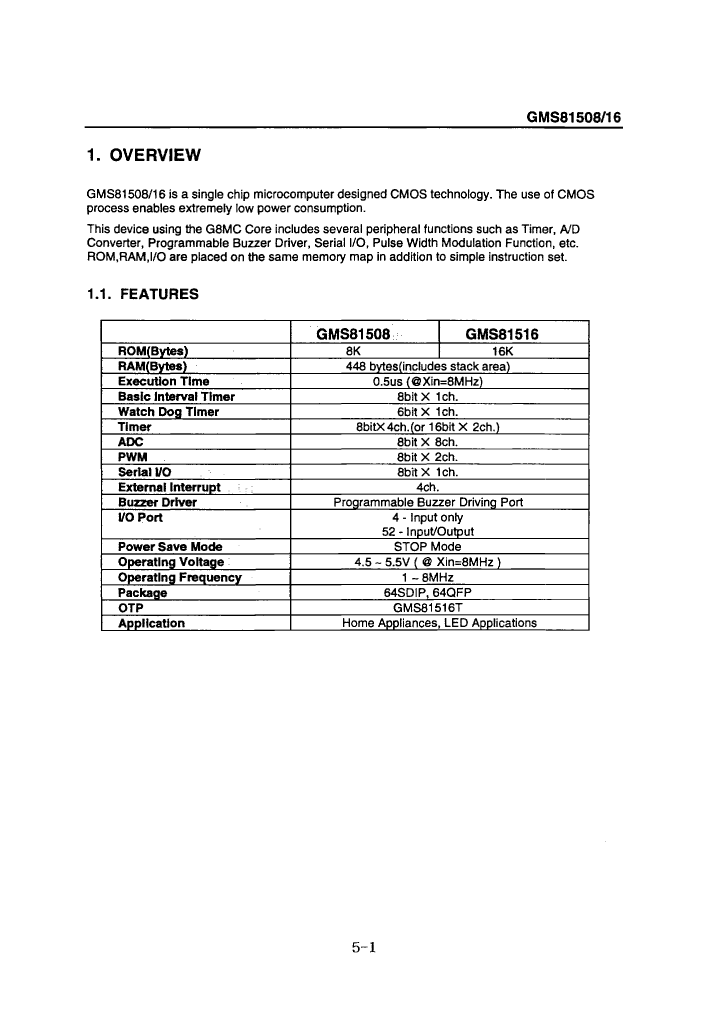

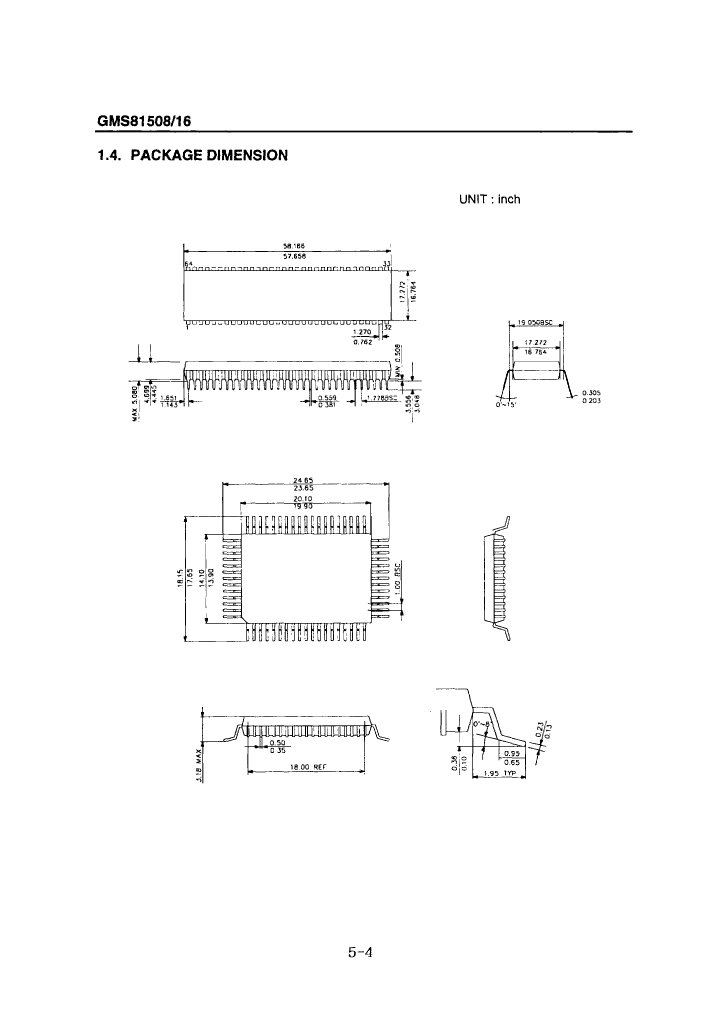

GMS81516TQ Overview

Microcontroller, 8-Bit, OTPROM, 8MHz, CMOS, PQFP64,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	16
bit size	8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PQFP-G64
Number of I/O lines	56
Number of terminals	64
Maximum operating temperature	75 °C
Minimum operating temperature	-10 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	OTPROM
speed	8 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	GMS81516TQ	GMS81516T
Description	Microcontroller, 8-Bit, OTPROM, 8MHz, CMOS, PQFP64,	Microcontroller, 8-Bit, OTPROM, 8MHz, CMOS, PDIP64,
Reach Compliance Code	unknown	unknown
Has ADC	YES	YES
Address bus width	16	16
bit size	8	8
maximum clock frequency	8 MHz	8 MHz
DAC channel	NO	NO
DMA channel	NO	NO
External data bus width	8	8
JESD-30 code	R-PQFP-G64	R-PDIP-T64
Number of I/O lines	56	56
Number of terminals	64	64
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-10 °C	-10 °C
PWM channel	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified
ROM programmability	OTPROM	OTPROM
speed	8 MHz	8 MHz
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	QUAD	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1
