8609-360-DP-97-745-000-A datasheet, PDF

Datasheet> All Categories > The connector> The connector> 8609-360-DP-97-745-000-A

8609-360-DP-97-745-000-A: DescriptionBoard Euro Connector, 64 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609-360-DP-97-745-000-A Overview

Board Euro Connector, 64 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal

8609-360-DP-97-745-000-A Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

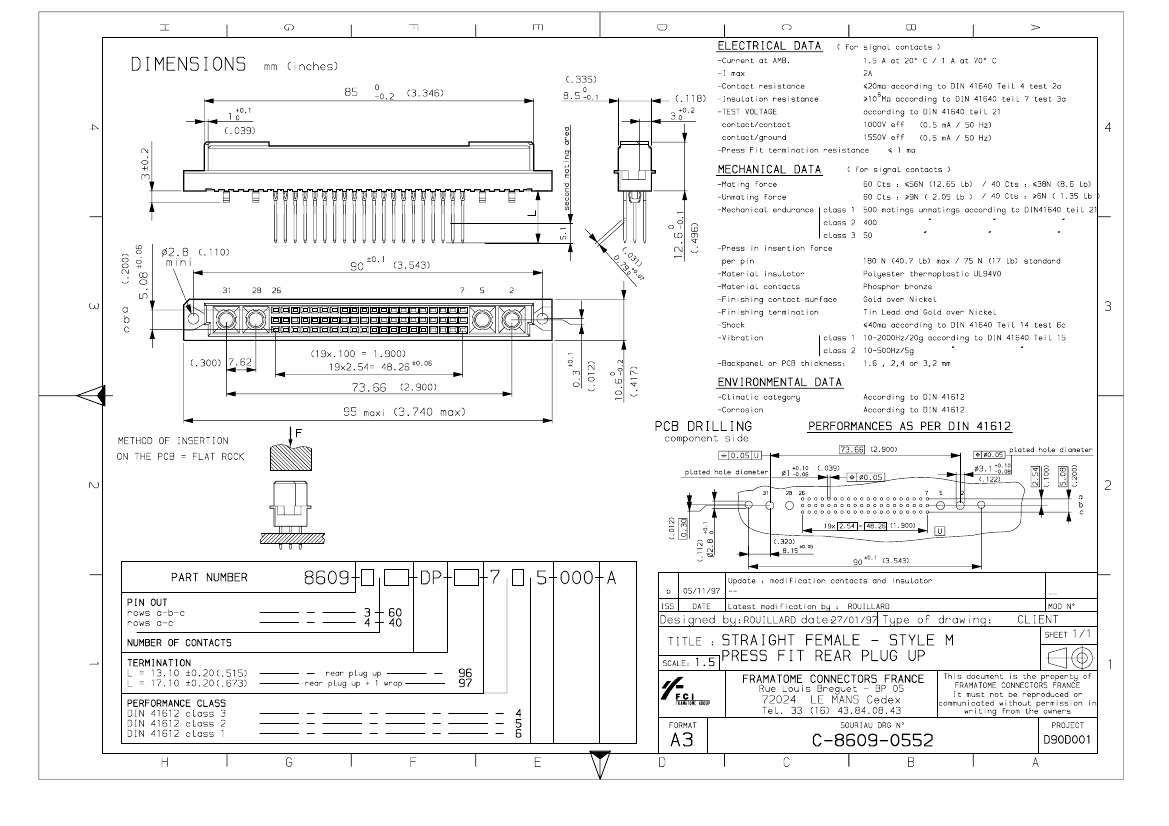

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Sep 30, 2005
